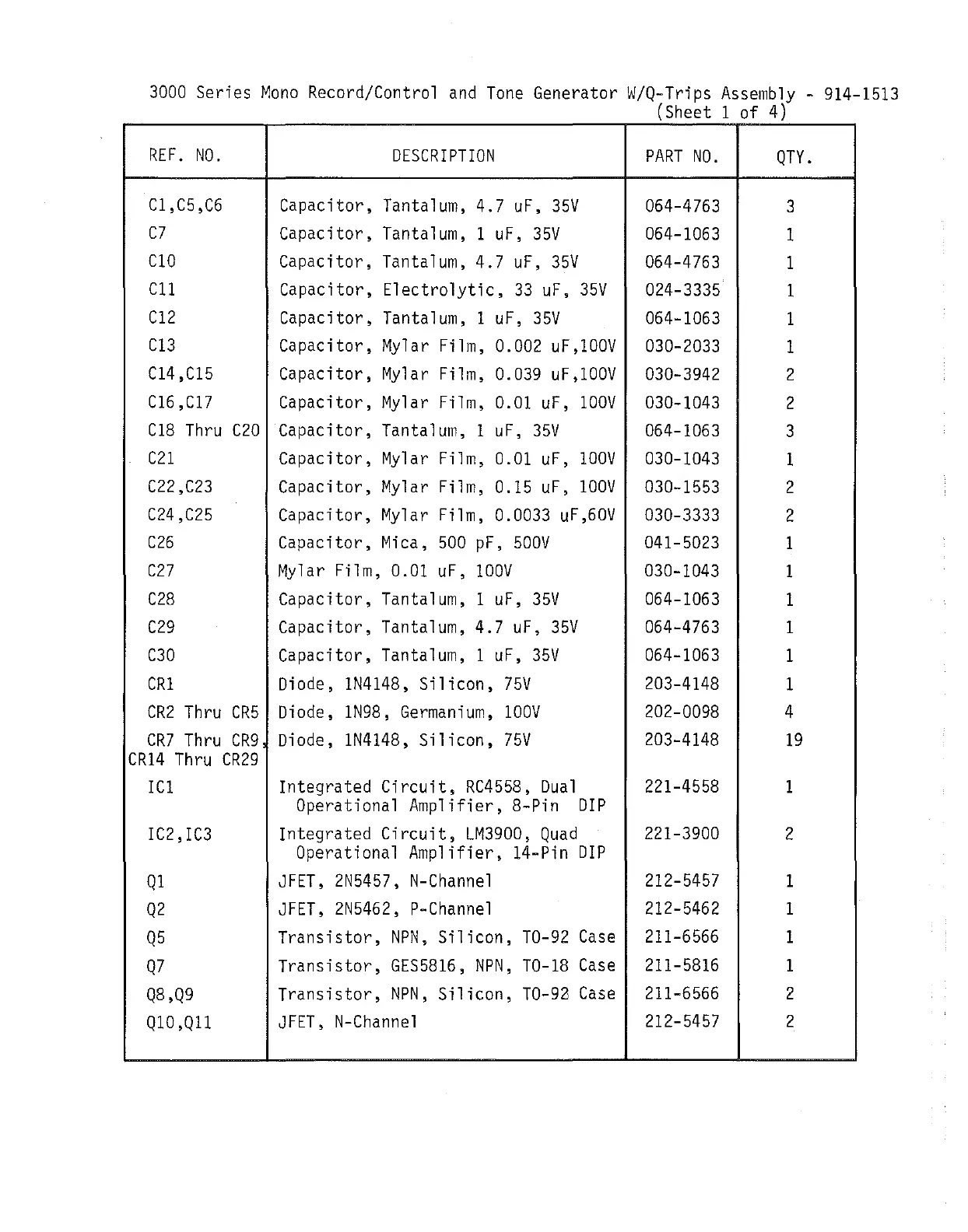

3000
Series
Mono
Record/Control
and
Tone
Generator W/Q-Trips Assembly- 914-1513
(Sheet 1
of
4)
REF.
NO.
Cl,C5,C6
C7
ClO
Cll
C12
C13
C14,C15
C16,C17
CIS
Thru
C20
C21
C22,C23
C24
,C25
C26
C27
C28
C29
C30
CRl
CR2
Thru
CR5
CR7
Thru
CR9
CR14
Thru
CR29
ICl
IC2,IC3
Ql
Q2
Q5
Q7
Q8,Q9
QlO
,Qll
DESCRIPTION
Capacitor, Tantalum, 4.7 uF,
35V
Capacitor, Tantalum, 1 uF,
35V
Capacitor, Tantalum, 4.7 uF,
35V
Capacitor,
Electrolytic,
33
uF,
35V
Capacitor, Tantalum, 1 uF,
35V
Capacitor, Mylar Film, 0.002
uF,lOOV
Capacitor,
Mylar
Film, 0.039
uF,lOOV
Capacitor, Mylar Film, 0.01 uF,
lOOV
Capacitor, Tantalum, 1 uF,
35V
Capacitor,
Mylar
Film, 0.01 uF,
lOOV
Capacitor, Mylar Film, 0.15 uF,
lOOV
Capacitor,
Mylar
Film, 0.0033
uF,60V
Capacitor, Mica,
500
pF,
500V
Mylar Film, 0.01 uF,
lOOV
Capacitor, Tantalum, 1 uF,
35V
Capacitor, Tantalum, 4.7 uF,
35V
Capacitor, Tantalum, 1 uF,
35V
Diode,
1N4148,
Silicon,
75V
Diode,
1N98,
Germanium,
lOOV
Diode,
1N4148,
Silicon,
75V
Integrated
Circuit,
RC4558,
Dual
Operational Amplifier, 8-Pin
DIP
Integrated
Circuit,
LM3900,
Quad
Operational Amplifier, 14-Pin
DIP
JFET,
2N5457,
N-Channel
JFET,
2N5462,
P-Channel
Transistor,
NPN,
Silicon,
T0-92
Case
Transistor,
GES5816,
NPN,
T0-18
Case
Transistor,
NPN,
Silicon,
T0-92
Case
JFET,
N-Channel
PART
NO.
064-4763
064-1063
064-4763
024-3335
064-1063
030-2033
030-3942
030-1043
064-1063
030-1043
030-1553
030-3333
041-5023
030-1043
064-1063
064-4763
064-1063
203-4148
202-0098
203-4148
221-4558
221-3900
212-5457
212-5462
211-6566
211-5816
211-6566
212-5457
QTY.
3
1
1
1
1
1
2
2
3
1
2
2
1
1
1
1
1
1
4
19
1
2
1
1
1
1
2
2
To Next Page
