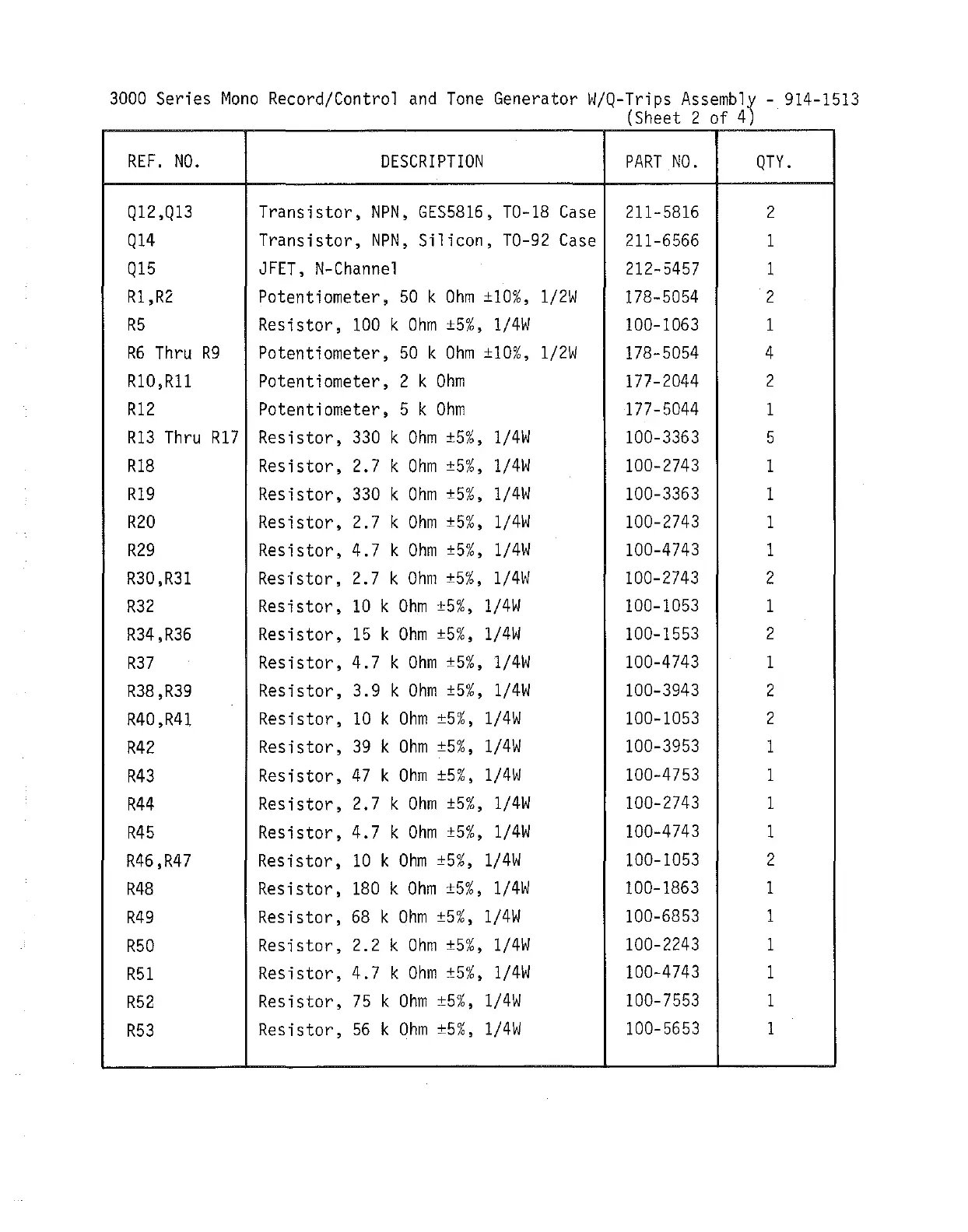

3000 Series Mono Record/Control and Tone Generator W/Q-Trips Assembly- 914-1513
(Sheet 2 of 4)
REF. NO. DESCRIPTION
PART NO. QTY.
Q12,Q13 Transistor,
NPN,
GES5816, T0-18 Case 211-5816 2
014
Transistor, NPN, Silicon, T0-92 Case
211-6566 1
Q15 JFET, N-Channel 212-5457
1
R1,R2 Potentiometer, 50 k Ohm ±10%, 1/2W 178-5054 2
R5 Resistor, 100 k Ohm ±5%, 1/4W 100-1063 1
R6 Thru R9 Potentiometer,
50 k Ohm ±10%,
1/2W 178-5054
4
R10,Rll Potentiometer, 2 k Ohm
177-2044
2
R12 Potentiometer, 5 k Ohm 177-5044 1
R13 Thru Rl7 Resistor, 330
k Ohm ±5%,
l/4W 100-3363 5
R18 Resistor, 2.7
k
Ohm ±5%,
1/4W
100-2743
1
R19 Resistor, 330 k Ohm ±5%,
1/4W
100-3363 1
R20 Resistor, 2.7
k
Ohm ±5%,
1/4W 100-2743 1
R29 Resistor,
4.7
k Ohm ±5%, 1/4W
100-4743 1
R30,R31
Resistor, 2.7
k Ohm ±5%, 1/4W 100-2743 2
R32 Resistor,
10 k Ohm ±5%, 1/4W 100-1053
1
R34,R36 Resistor, 15 k Ohm ±5%, 1/4W 100-1553
2
R37
Resistor,
4.7 k Ohm ±5%, 1/4W 100-4743 1
R38,R39
Resistor,
3.9 k Ohm ±5%, 1/4W 100-3943
2
R40 ,R41
Resistor,
10 k Ohm ±5%, 1/4W 100-1053 2
R42
Resistor,
39 k Ohm ±5%, 1/4W 100-3953
1
R43
Resistor,
47 k Ohm ±5%, 1/4W
100-4753
1
R44
Resistor,
2.7 k Ohm ±5%, 1/4W 100-2743 1
R45 Resistor,
4.7 k Ohm ±5%, 1/4W 100-4743 1
R46,R47
Resistor,
10 k Ohm ±5%, 1/4W
100-1053 2
R48
Resistor, 180 k Ohm ±5%, 1/4W
100-1863 1
R49
Resistor,
68 k Ohm ±5%, 1/4W
100-6853 1
R50
Resistor,
2.2 k Ohm ±5%, 1/4W
100-2243 1
R51
Resistor,
4.7 k Ohm ±5%, 1/4W
100-4743
1
R52
Resistor,
75 k Ohm ±5%, 1/4W 100-7553 1
R53
Resistor,
56 k Ohm ±5%, 1/4W
100-5653 1
