Broadcast Electronics 3000 Series - Page 95

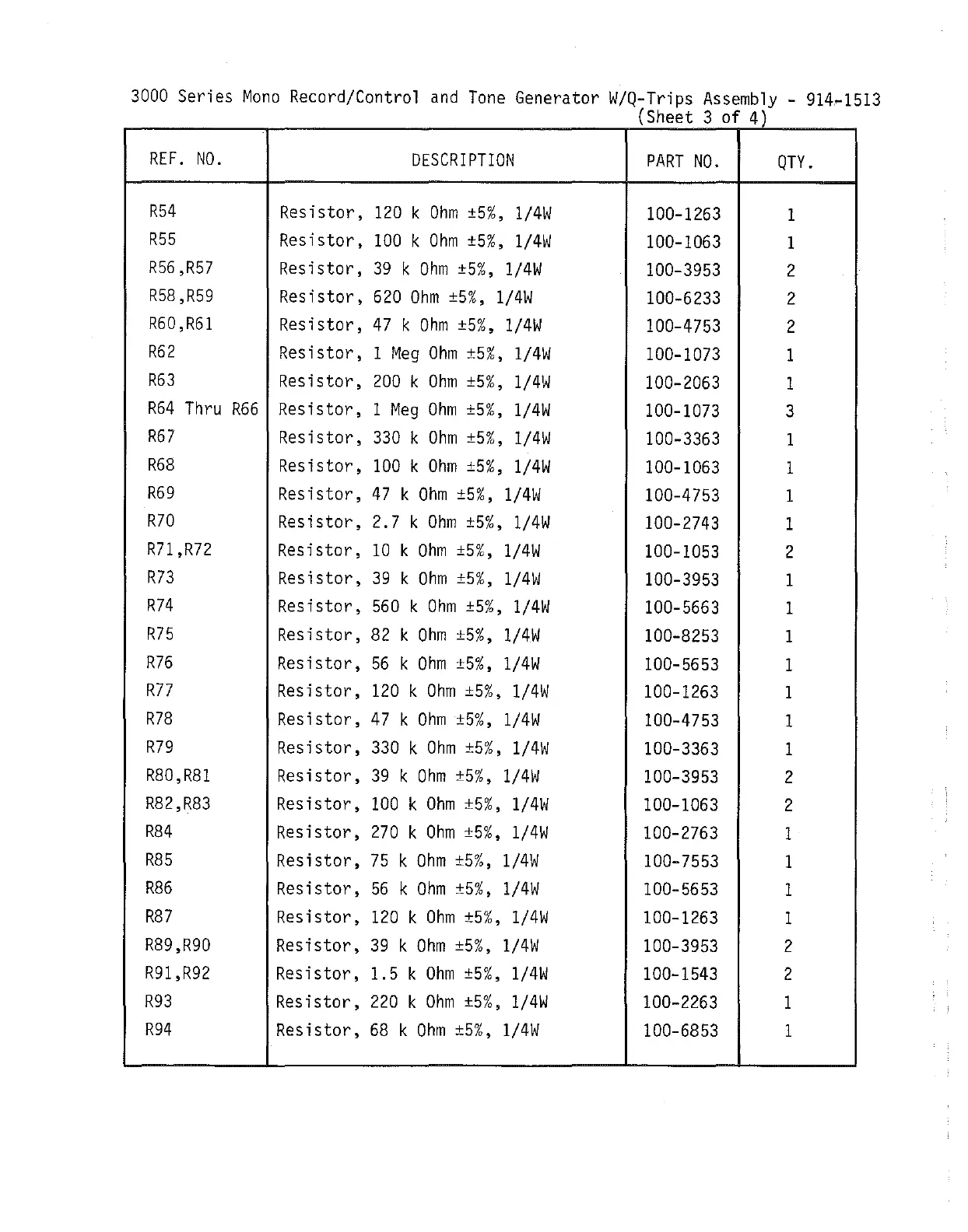

3000 Series Mono Record/Control and Tone Generator W/Q-Trips Assembly - 914~1513
(Sheet 3 of 4)
REF. NO.
DESCRIPTION
PART NO.
QTY.
R54
Resistor,
120 k Ohm ±5%, 1/4W
100-1263
1
R55
Resistor,
100 k Ohm ±5%, 1/4W
100-1063
1
R56,R57
Resistor,
39 k Ohm ±5%, 1/4W
100-3953
2
R58,R59
Resistor,
620 Ohm ±5%, 1/4W
100-6233
2
R60,R61
Resistor,
47 k Ohm ±5%, 1/4W
100-4753
2
R62
Resistor,
1 Meg Ohm ±5%,
1/4W
100-1073
1
R63
Resistor,
200 k Ohm ±5%,
1/4W
100-2063
1
R64 Thru
R66 Resistor, 1 Meg Ohm ±5%,
1/4W
100-1073
3
R67
Resistor, 330 k Ohm ±5%,
1/4W
100-3363
1
R68
Resistor, 100 k Ohm ±5%,
1/4W
100-1063
1
R69
Resistor,
47 k Ohm ±5%, 1/4W
100-4753
1
R70
Resistor,
2.7 k Ohm ±5%, 1/4W
100-2743
1
R71 ,R72
Resistor,
10 k Ohm ±5%, 1/4W
100-1053
2
R73
Resistor,
39 k Ohm ±5%, 1/4W
100-3953
1
R74
Resistor,
560 k Ohm ±5%, 1/4W
100-5663
1
R75
Resistor,
82 k Ohm ±5%, 1/4W
100-8253
1
R76
Resistor,
56 k Ohm ±5%, 1/4W
100-5653
1
R77
Resistor,
120 k Ohm ±5%, 1/4W
100-1263
1
R78
Resistor, 47 k Ohm ±5%, 1/4W
100-4753
1
R79 Resistor,
330 k Ohm ±5%, 1/4W
100-3363
1
R80,R81
Resistor, 39 k Ohm ±5%, 1/4W
100-3953
2
R82, R83
Resistor, 100 k Ohm ±5%, 1/4W
100-1063
2
R84
Resistor, 270 k Ohm ±5%, 1/4W
100-2763
1
R85
Resistor, 75 k Ohm ±5%, 1/4W
100-7553
1
R86
Resistor, 56 k Ohm ±5%, 1/4W
100-5653
1
R87 Resistor,
120 k Ohm ±5%, 1/4W
100-1263
1
R89,R90
Resistor,
39 k Ohm ±5%, 1/4W
100-3953 2
R91,R92
Resistor,
1.5 k Ohm ±5%, 1/4W
100-1543 2
R93
Resistor, 220 k Ohm ±5%, 1/4W
100-2263
1
R94
Resistor, 68 k Ohm ±5%, 1/4W
100-6853 1
