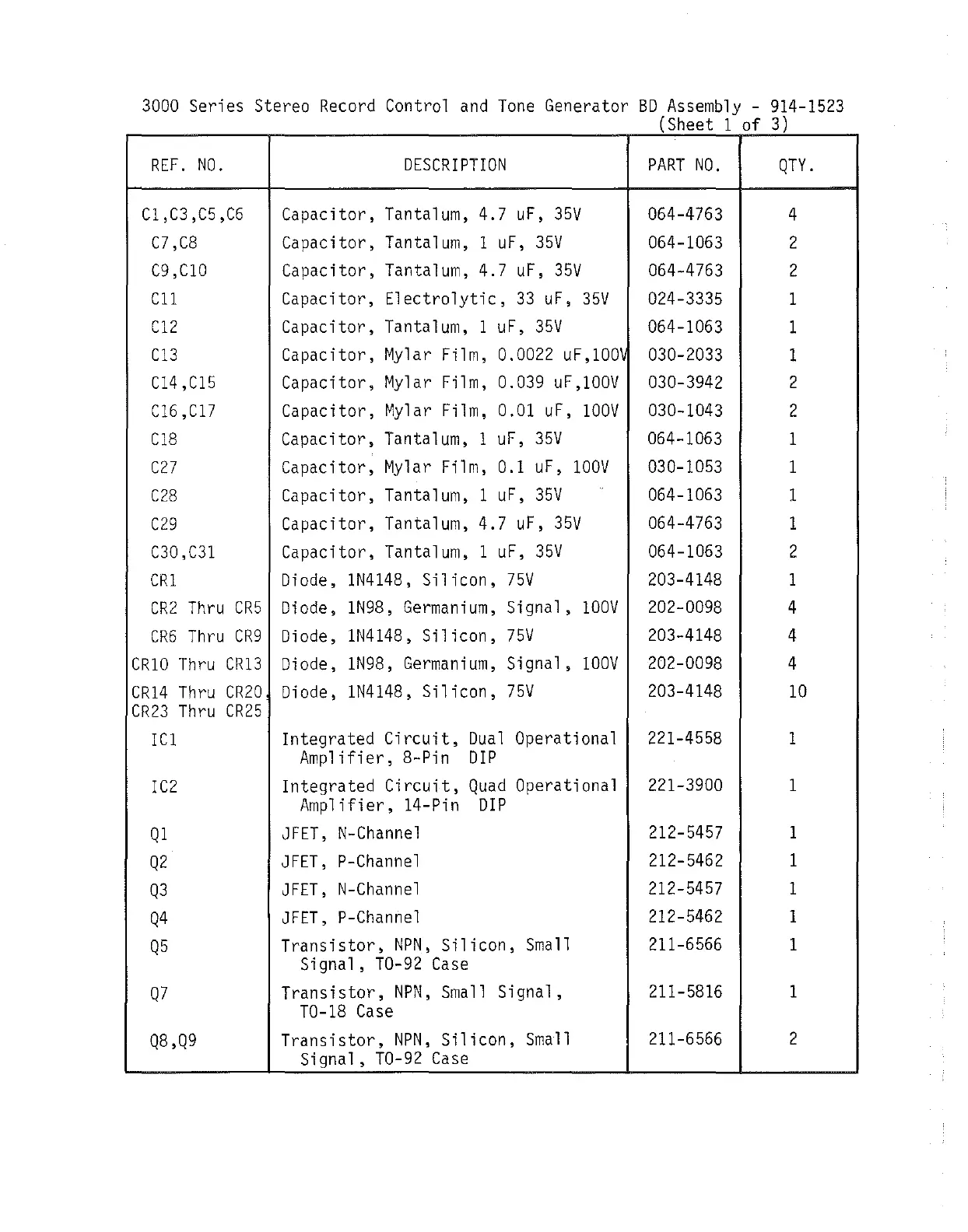

3000
Series
Stereo
Record
Control
and
Tone
Generator
BD
Assembly
- 914-1523
(Sheet 1
of
3)
REF.
NO.
DESCRIPTION
C1,C3,C5,C6
Capacitor, Tantalum, 4.7 uF,
35V
C7,C8
Capacitor, Tantalum, 1
uF,
35V
C9,Cl0 Capacitor, Tantalum, 4.7 uF,
35V
Cll Capacitor,
Electrolytic,
33
uF,
35V
C12
Capacitor, Tantalum, 1 uF,
35V
Cl3
Capacitor,
Mylar
Film, 0.0022 uF,100
1
C14,C15
Capacitor,
Mylar
Film, 0.039
uF,100V
Cl6,C17 Capacitor,
Mylar
Film, 0.01 uF,
100V
ClS
Capacitor, Tantalum, 1 uF,
35V
C27
Capacitor,
Mylar
Film, 0.1 uF,
100V
C28
Capacitor, Tantalum, 1 uF,
35V
C29
Capacitor, Tantalum, 4.7 uF,
35V
C30,C31
Capacitor, Tantalum, 1 uF,
35V
CRl
Diode,
1N4148,
Silicon,
75V
CR2
Thru
CR5
Diode,
1N98,
Germanium,
Signal,
100V
CR6
Thru
CR9
Diode,
1N4148,
Silicon,
75V
CR10
Thru
CR13
Diode,
1N98,
Germanium,
Signal,
100V
CR14
Thru
CR20
Diode,
1N4148,
Silicon,
75V
CR23
Thru
CR25
IC1
Integrated
Circuit,
Dual
Operational
IC2
Q1
Q2
Q3
Q4
Q5
Q7
QS,Q9
Amplifier, S-Pin
DIP
Integrated
Circuit,
Quad
Operational
Amplifier,
14-Pin
DIP
JFET,
N-Channel
J
FET,
P-Channe
1
J
FET,
N-Channe
1
JFET,
P-Channel
Transistor,
NPN,
Silicon,
Small
Signal,
T0-92
Case
Transistor,
NPN,
Small
Signal,
T0-18
Case
Transistor,
NPN,
Silicon,
Small
Signal,
T0-92
Case
PART
NO.
064-4763
064-1063
064-4763
024-3335
064-1063
030-2033
030-3942
030-1043
064-1063
030-1053
064-1063
064-4763
064-1063
203-4148
202-0098
203-4148
202-0098
203-4148
221-4558
221-3900
212-5457
212-5462
212-5457
212-5462
211-6566
211-5816
211-6566
QTY.
4
2
2
1
1
1
2
2
1
1
1
1
2
1
4
4
4
10
1
1
1
1
1
1
1
1
2
To Next Page
