Broadcast Electronics 3000 Series - Page 98

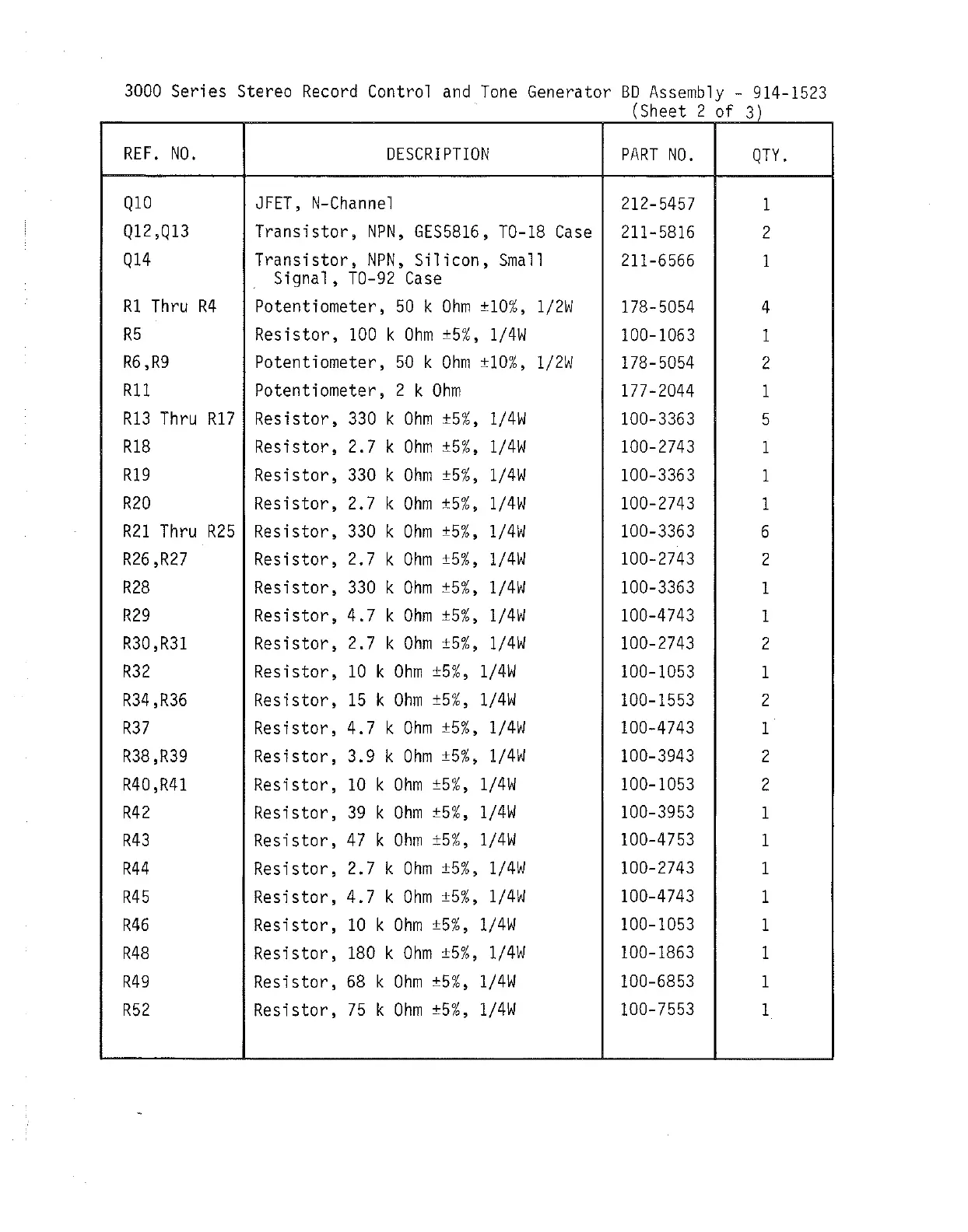

3000 Series Stereo Record Control and Tone Generator BD Assembly - 914-1523
(Sheet 2
of
3)
REF. NO.
DESCRIPTION
PART NO.
QTY.
Q10 JFET,
N-Channe l
212-5457
1
Q12,Q13 Transistor, NPN,
GES5816, T0-18 Case 211-5816
2
014
Transistor, NPN, Silicon, Small
211-6566
1
Signal, T0-92 Case
R1 Thru
R4
Potentiometer, 50 k Ohm ±10%,
1/2W
178-5054
4
R5 Resistor, 100 k Ohm ±5%, 1/4W
100-1063
1
R6 ,R9
Potentiometer, 50 k Ohm ±10%,
1/2W 178-5054
2
R11 Potentiometer, 2 k Ohm
177-2044
1
R13 Thru R17
Resistor, 330 k Ohm ±5%,
1/4W 100-3363
5
R18
Resistor, 2.7 k Ohm ±5%,
1/4W 100-2743
1
R19 Resistor, 330 k Ohm ±5%,
1/4W 100-3363
1
R20 Resistor, 2.7 k Ohm ±5%, 1/4W 100-2743
1
R21 Thru R25
Resistor,
330 k Ohm ±5%, 1/4W 100-3363
6
R26,R27 Resi star, 2.7 k Ohm ±5%, 1/4W 100-2743
2
R28
Resistor,
330
k Ohm ±5%,
1/4W 100-3363
1
R29 Resistor, 4.7
k
Ohm ±5%,
1/4W 100-4743
1
R30,R31 Resistor, 2.7 k Ohm ±5%,
1/4W 100-2743 2
R32 Resistor,
10 k Ohm ±5%, 1/4W
100-1053
1
R34,R36 Resistor, 15 k Ohm ±5%, 1/4W
100-1553 2
R37
Resistor, 4.7 k Ohm ±5%, 1/4W 100-4743
1
R38,R39 Resistor,
3.9 k Ohm ±5%, 1/4W
100-3943 2
R40,R41
Resistor, 10 k
Ohm ±5%, l/4W 100-1053
2
R42 Resistor, 39 k Ohm ±5%, 1/4W 100-3953
1
R43 Resistor,
47 k Ohm ±5%, 1/4W 100-4753
1
R44
Resistor, 2.7 k Ohm ±5%, 1/4W
100-2743
1
R45 Resistor,
4.7 k Ohm ±5%, 1/4W 100-4743
1
R46 Resistor,
10 k Ohm ±5%, 1/4W 100-1053
1
R48
Resistor,
180 k Ohm ±5%, 1/4W 100-1863
1
R49
Resistor, 68 k Ohm ±5%, 1/4W 100-6853 1
R52 Resistor,
75 k Ohm ±5%, 1/4W 100-7553
1
