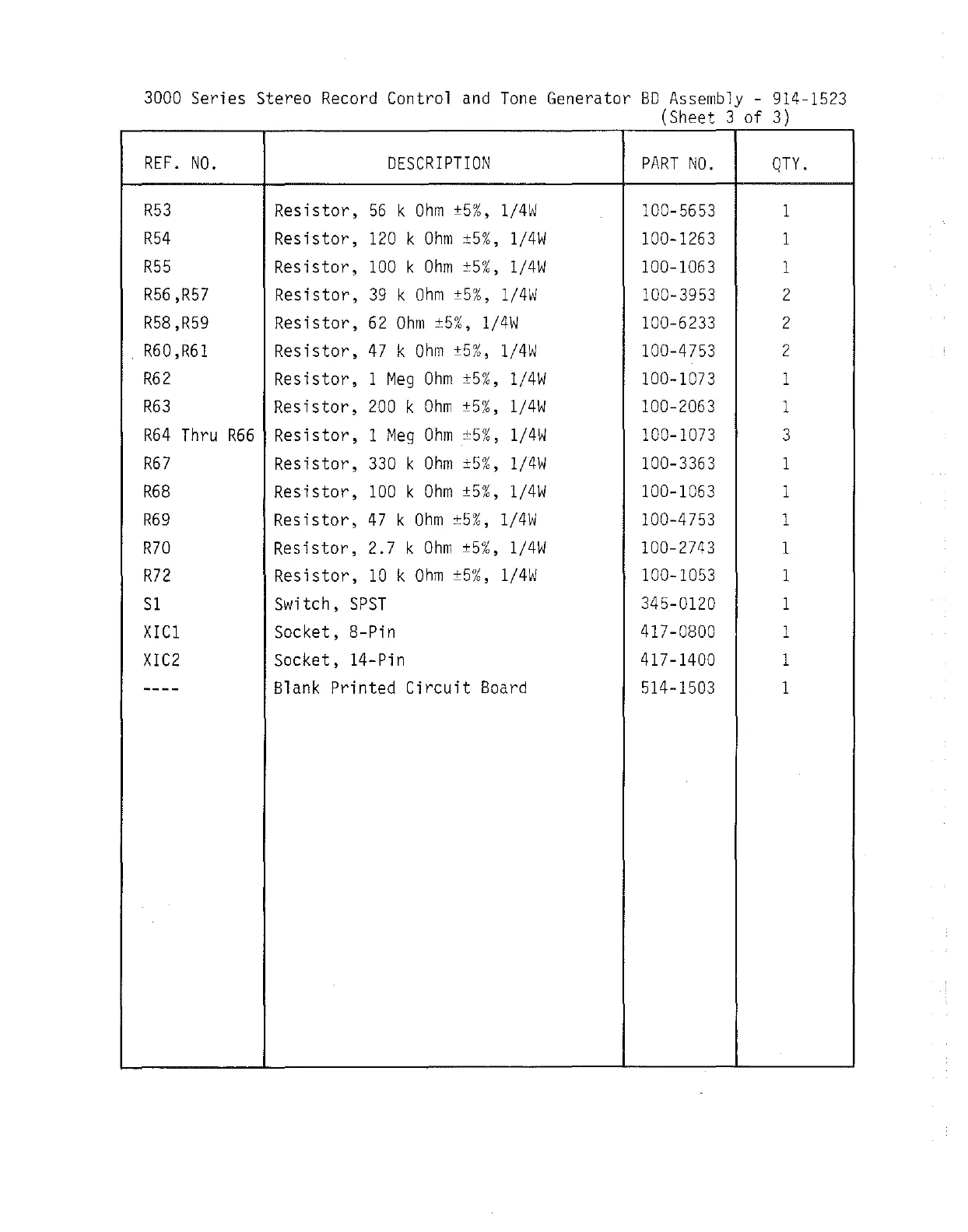

3000 Series Stereo Record Control and Tone Generator BD Assembly - 914-1523
(Sheet 3 of 3)
REF.
NO. DESCRIPTION PART NO.
QTY.
R53 Resistor, 56 k Ohm ±5%, 1/4W
100-5653 1
R54 Resistor, 120 k Ohm ±5%, 1/4W
100-1263 1
R55 Resistor, 100 k Ohm ±5%, 1/4W 100-1063
1
R56,R57
Resistor,
39 k Ohm ±5%, 1/4W
100-3953 2
R58,R59
Resistor, 62 Ohm ±5%, 1/4W 100-6233 2
R60, R61 Resistor, 47 k Ohm ±5%, 1/4W
100-4753
2
R62
Resistor,
1 Meg Ohm ±5%,
1/4W 100-1073 1
R63 Resistor, 200 k Ohm ±5%, 1/4W 100-2063
1
R64 Thru R66 Resistor, 1 Meg Ohm ±5%, 1/4W 100-1073 3
R67 Resistor,
330 k Ohm ±5%,
1/4W
100-3363
1
R68 Resistor,
100 k Ohm ±5%,
1/4W 100-1063 1
R69 Resistor, 47 k Ohm ±5%, 1/4W 100-4753 1
R70 Resistor,
2.7 k Ohm ±5%, 1/4W 100-2743
1
R72 Resistor,
10 k Ohm ±5%, 1/4W 100-1053
1
S1
Switch, SPST 345-0120 1
X!Cl Socket, 8-Pin 417-0800 1
XIC2
Socket, 14-Pin 417-1400 1
----
Blank Printed Circuit Board 514-1503 1
