B102163-0-1113 Page 25

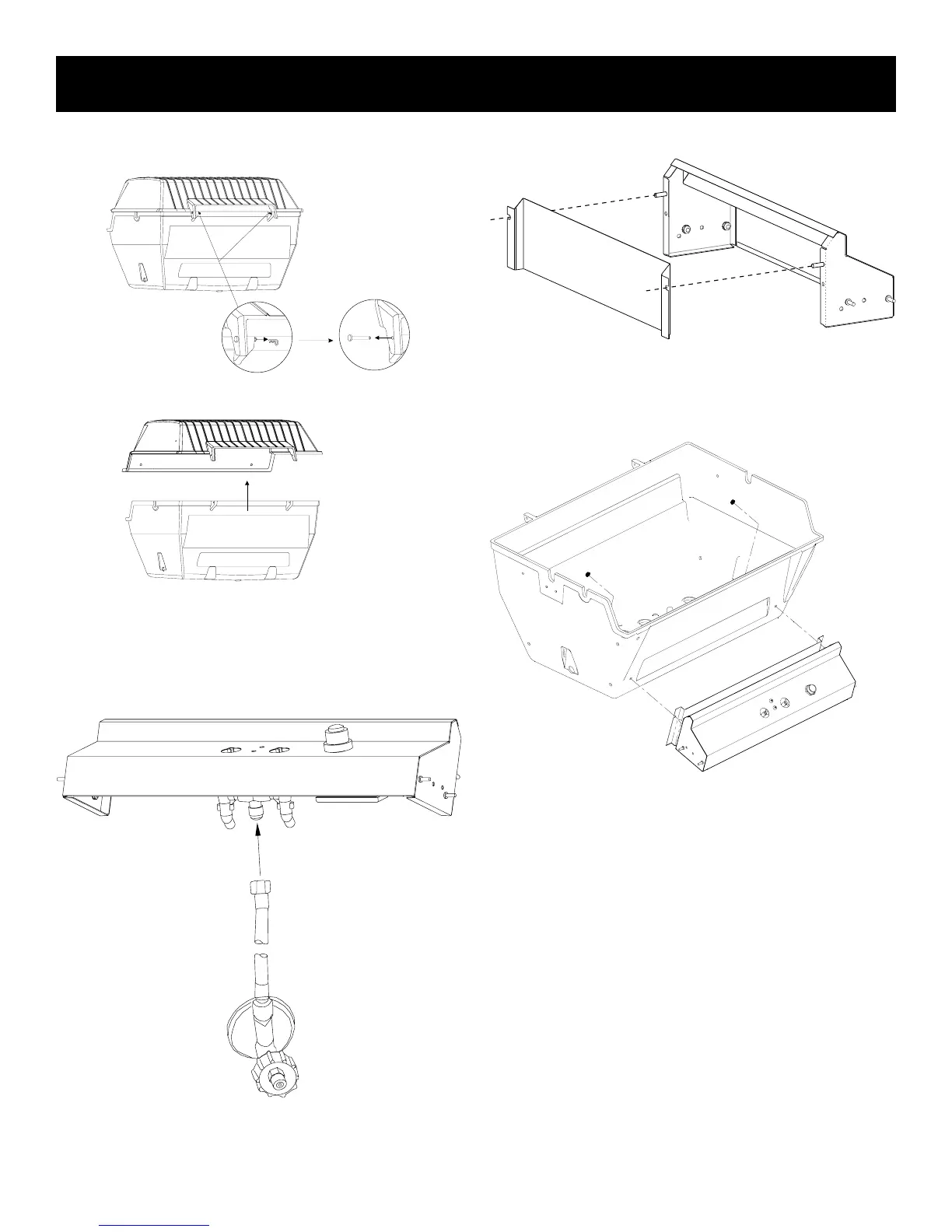

GRILL ASSEMBLY
Installing the Hose and Regulator
To ease assembly, remove grill top before assembling. Remove the
2 pins and clips at the rear of the grill top and set aside. See Figure 4.
Figure 4
LP Models: Attach the hose and regulator supplied with the unit as
shown in Figure 5.
Nat Gas Models: Attach the 12 foot quick connect hose (NG12 - not
supplied with unit).
For Post Installations: See post mounting instructions for assembly
and installation of gas-line hook-up.
Figure 5
Installing Control Panel Shield
Attach shield by inserting the shield over the studs. See Figure 6.
Figure 6
Installing Control Panel
Attach control panel assembly to grill bottom with two 10-24 keps
nuts. See Figure 7.
Figure 7
