Bromic Heating TUNGSTEN 300 - Optimum Mounting Distance; Operation Data; Honeywell Control Box

IMPORTANT
Do not apply any additional surface coating to the heater under any
circumstances. Use of additional coating other than those applied
during manufacture could result in hazardous reactions such as
toxic fumes or fires. Additional coatings will void the warranty.
!
A
B
B
OPERATION DATA - HONEYWELL CONTROL BOX
The following operation sequence is valid only where the
components are installed according to the manufactures
assembly and installation instructions. Please do not modify
the wiring configuration, gas train or any other part of the
heater assembly.
Application
The Honeywell electronic gas burner control system is suitable
for atmospheric gas burners for non-permanent operation.
Although the Honeywell unit is available non volatile lockout,
its configuration in the Tungsten Smart-Heat series heaters
limits it to volatile lockout, i.e. the restart from this condition
is possible by the interruption and subsequent restoration of
the mains power supply.
Features:
UÊCompliance with CSA standard for automatic gas burner
flame monitoring and control systems
UÊCompliance with EN 298 (European standard for
automatic gas burner flame monitoring and control
systems)
UÊCompliance with AGA (Australian standard for automatic
gas burner flame monitoring and control systems)
UÊFlame monitoring based on rectification property of the
TECHNICAL DATA
Supply voltage 110V-50/60Hz
Operating temperature -20°C / +60°C
Ambient humidity 90%max at 40°C
Protection degree IPX4
Timings:
Self Check time 1.5 s
Safety time (TS) 25 s
Drop out time on running flame failure 1 s
Power consumption, at start up 10VA
Power Consumption, Running 4VA
Ignition
Ignition Voltage 15kV with 40pF load
Spark repetition rate 33 Hz
Max. Cable length 1M
Recommended spark gap 0.14”
Consumption 2,5 VA
Spark energy 3 uAs
A

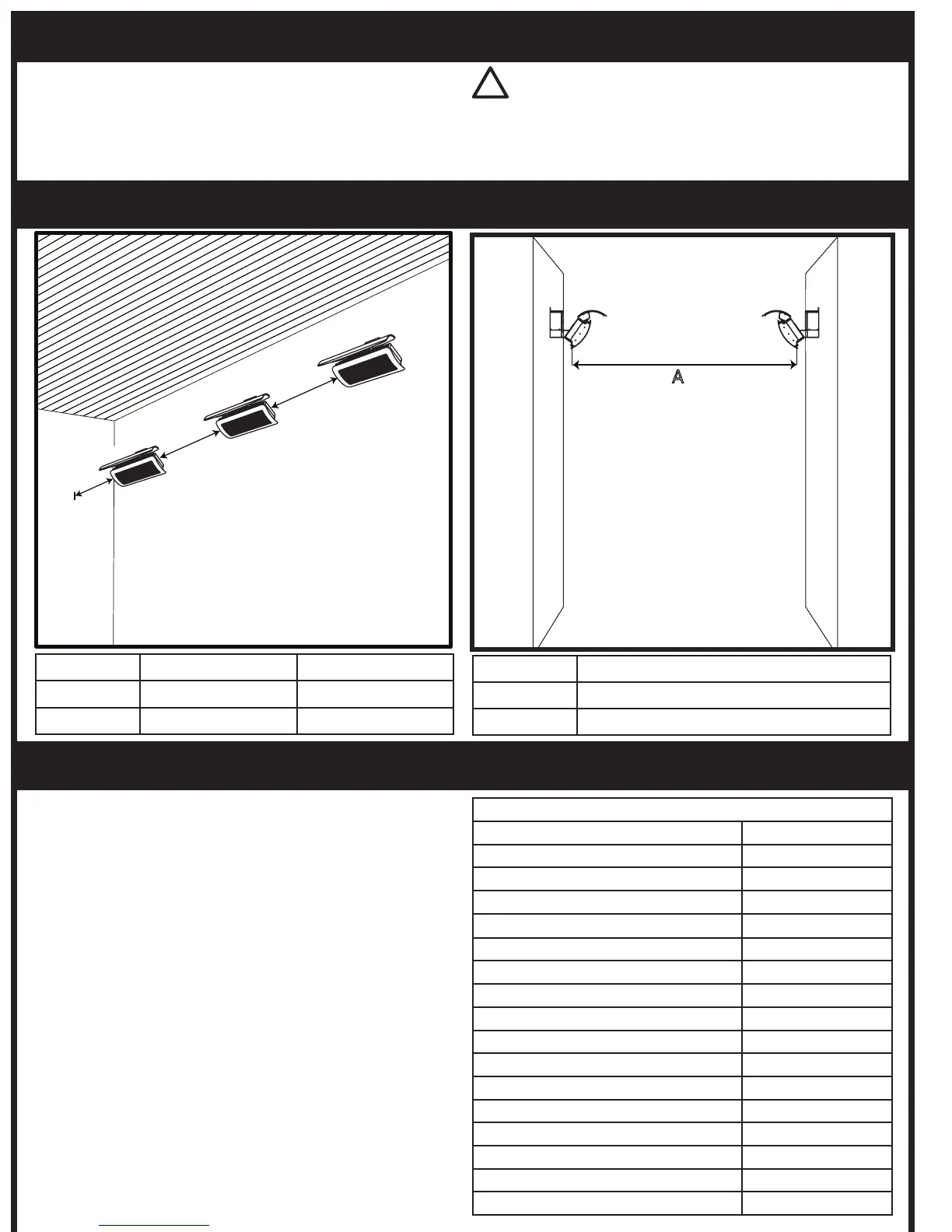

OPTIMUM MOUNTING DISTANCE
Replacement parts can be purchased to restore the heater to
its original appearance from Bromic Heating Pty Ltd. (Refer to
parts list in manual).
Model A B
300 Series 3ft 8 - 10ft
500 Series 3ft 8 - 10ft
Model A
300 Series 19 - 23ft
500 Series 26 - 29ft
