Minimum Mounting Height to Ground
B
A

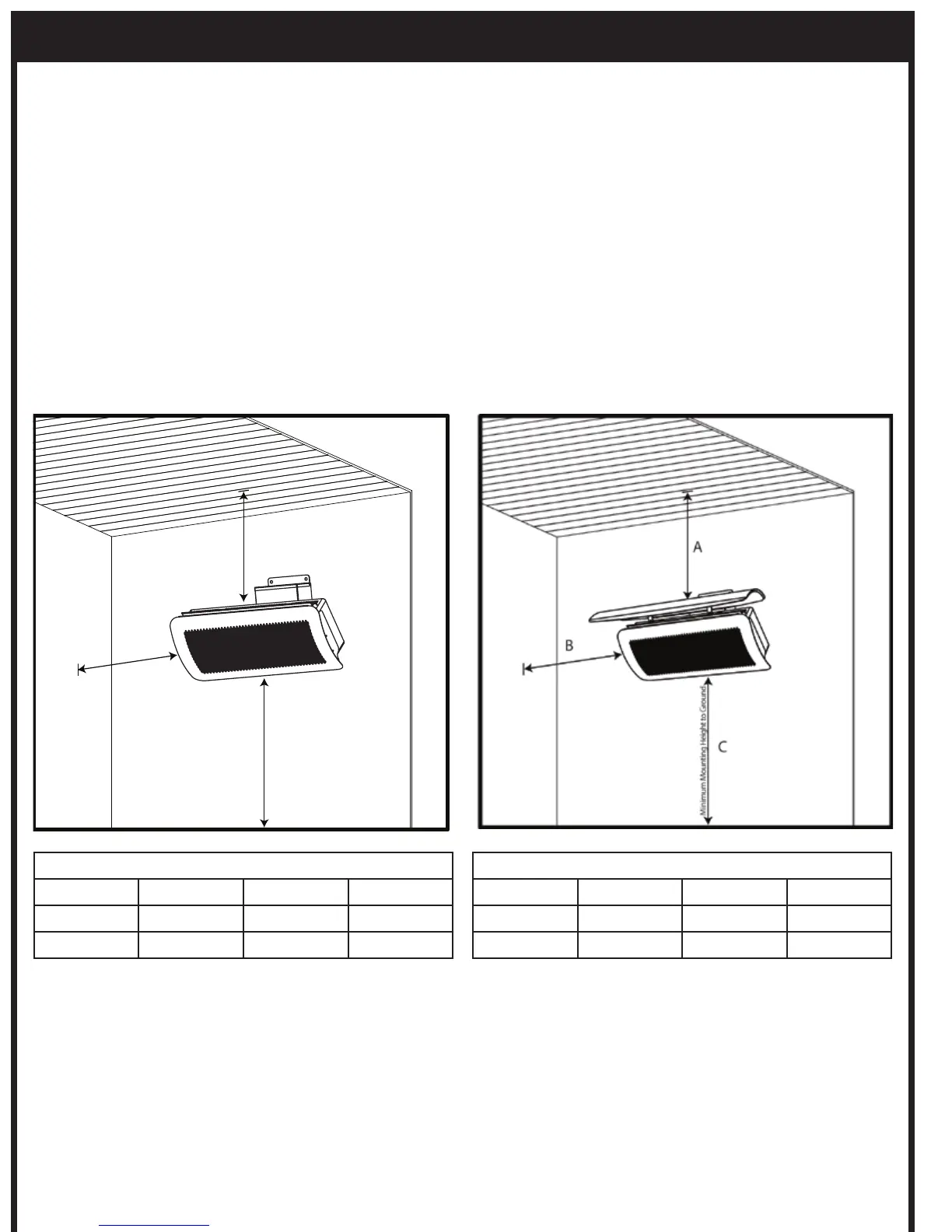

INSTALLATION CLEARANCES
When selecting the installation location for the Tungsten
Series Heaters, the following mounting clearances should be
followed.
Care should be taken to ensure that the heater is not installed:
UÊWhere heat/ignition can cause damage to gas cylinders/
lines
UÊNear other combustible materials
UÊIn open locations subject to rain
UÊIn indoor residential locations
UÊIn areas without sufficient clearances (refer below)
Note: When Installing with No protective cover, the following
installation clearances shall apply:
Minimum height to combustible materials
Model A B C
300 Series 3ft 3ft 8ft
500 Series 3ft 3ft 8ft
Note: When installing with the Tungsten Smart-Heat
Heat Shield (Part No. 2620165 or 2620166) the following
installation clearances Shall Apply:
Minimum height to combustible materials
Model A B C
300 Series 14” 3ft 8ft
500 Series 14” 3ft 8ft
Note: Heater should be installed in such a way so as to allow
adequate;
Clearance around air openings to combustion chamber
Clearance from combustible material
Provisions for accessibility and clearance for combustion and
ventilating air supply.
