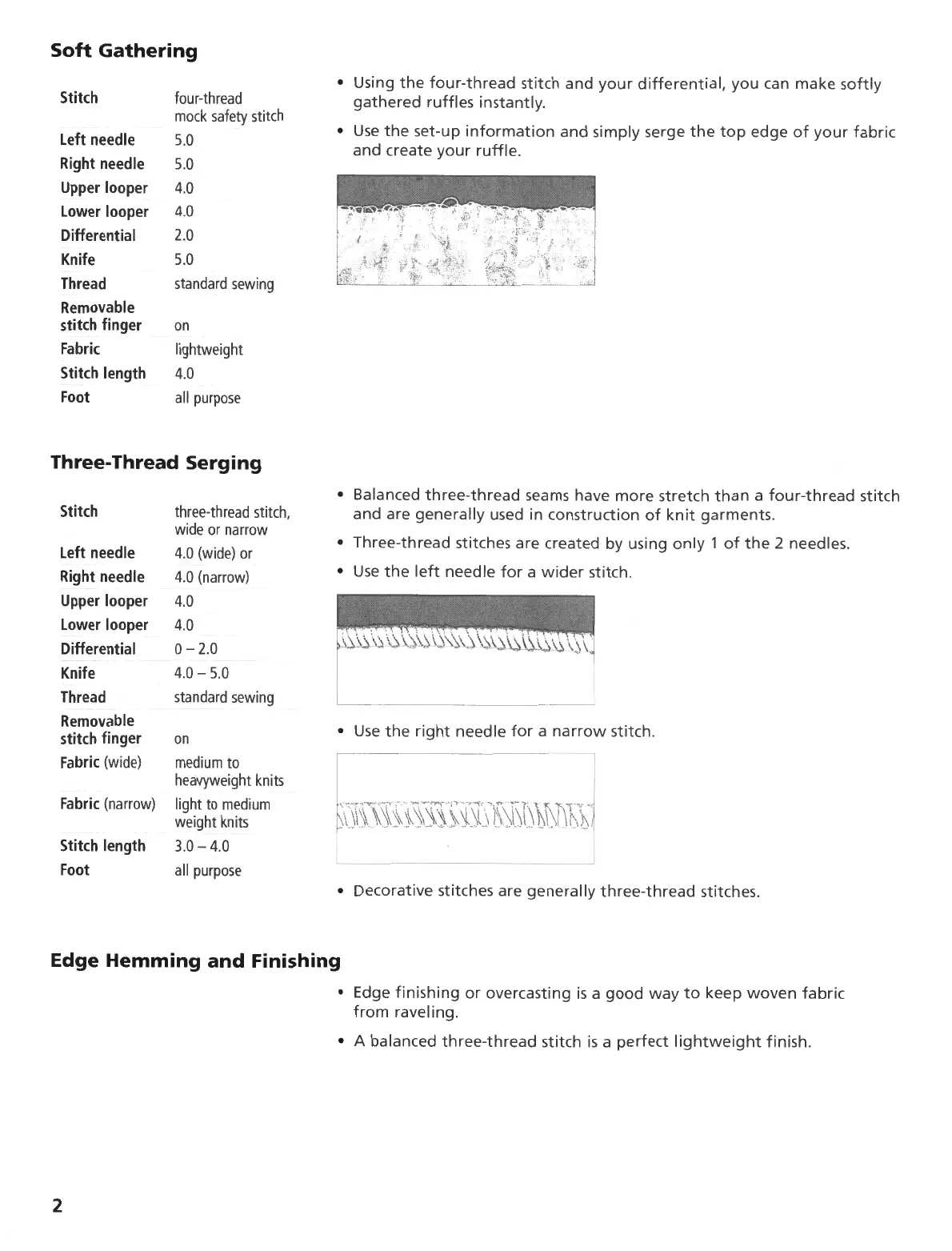

Brother 1034D User Manual

Soft Gathering
Stitch
four-thread
mock safety stitch
Left needle
5.0
Right needle
5.0
Upper looper
4.0
Lower looper 4.0
Differential
2.0
Knife
5.0
Thread
standard sewing
Removable
stitch finger
on
Fabric
lightweight
Stitch length 4.0
Foot
all purpose
Three-Thread Serging
Stitch
three-thread stitch,
wide or narrow
Left needle 4.0 (wide) or
Right needle 4.0 (narrow)
Upper looper 4.0
Lower looper
4.0
Differential
0-2.0
Knife
4.0 - 5.0
Thread
standard sewing
Removable
stitch finger on
Fabric (wide)
medium to
heavyweight knits
Fabric (narrow)
light to medium
weight knits
Stitch length
3.0 - 4.0
Foot
all purpose
• Using the four-thread stitch and your differential, you can make softly
gathered ruffles instantly.
•
Use the set-up information and simply serge the top edge of your fabric
and create your ruffle.
• Balanced three-thread seams have more stretch than a four-thread stitch
and are generally used in construction of knit garments.
• Three-thread stitches are created by using only 1 of the 2 needles.
•
Use the left needle for a wider stitch.
•
Use the right needle for a narrow stitch.
- 7
~\\t(\ \i, t\S.ii: {i \ 1\\1\(Yb\\l\ :;\~
• Decorative stitches are generally three -thread stitches.
Edge Hemming and Finishing
2
• Edge finishing or overcasting is a good way to keep woven fabric
from raveling.
• A balanced three-thread stitch is a perfect lightweight finish .

Brother 1034D Specifications

General

Type	Serger
Number of Threads	3 or 4
Stitch Length	1.0mm to 4.0mm
Differential Feed	Yes
Differential Feed Ratio	0.7 to 2.0
Maximum Sewing Speed	1, 300 stitches per minute
Color-Coded Threading	Yes
Adjustable Stitch Width	Yes
Free Arm	Yes
Thread Tension	Adjustable
Presser Foot Lifter	Yes
Built-in Thread Cutter	Yes
Free Arm Capability	Yes
Power Requirements	120V, 60Hz
Stitch Types	rolled hem
Stitch Width	5.0mm - 7.0mm (overlock), 2.0mm (rolled hem)
Needle	Standard sewing machine needles (size 11 or 14)
Included Accessories	gathering foot
