Brother b837 - II] Feed Dog Height Adjustment

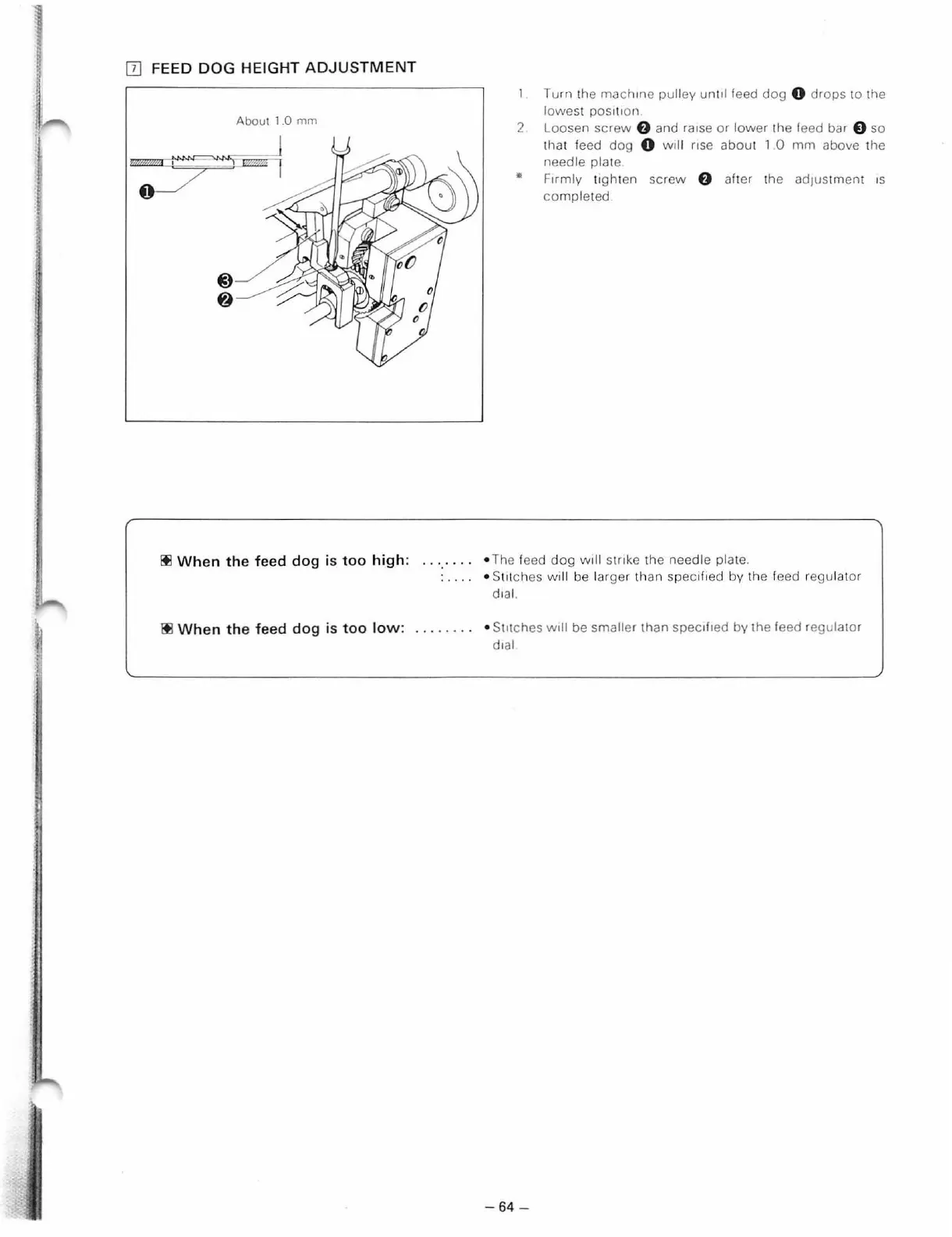

[I] FEED DOG HEIGHT ADJUSTMENT
About 1 .0 mm
ltl When the feed dog is too high:
2
•
Turn the machme pulley unttl feed dog 0 drops to the
lowest p0S1t1on
Loosen screw f) and ra1se or lower th e feed bar 0 so
that fe ed dog 0 will nse about 1 0 mm above the
needle plate
F1rm ly li gh ten screw f) after the adJUStment 1s
completed
• The feed dog will stnke the ne edle plate.
• S t1t ches will be lar ger th an spec1 f1e d by the feed r egulato r
d1al
ltl When the feed dog is too low : . . . . . . . . • Stnches wtll be smaller than spec1f1ed by the feed regulator
d1al
- 64 -
