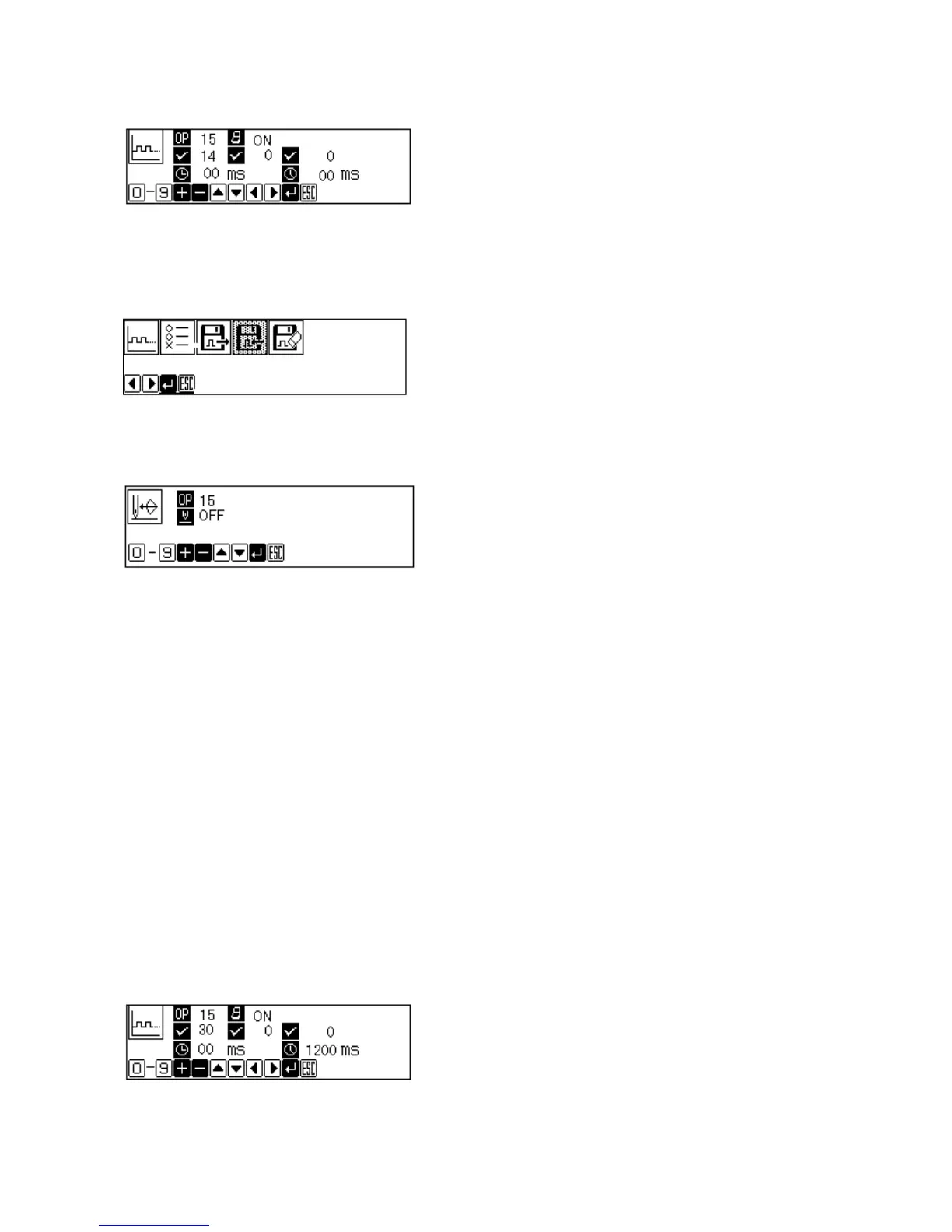

Move the cursor to “ON”, and press the − key to switch to OFF. Check the data that was set in 2-3
remains.
ƒAfter overwriting the option program to the FD, press the P key to turn off the display of the
programmer.
„Press the P key again, read the sewing data and edit it, and input the trigger data at a desired
position (see page 100 of the instruction manual for the programmer). Set the option output No. 15,
and sewing stop: OFF. Input on the setting screen as follows:
…Put the sewing data in memory by a new program No.after inputting the trigger data. Press the P key
to turn off the display of the programmer. Turn the power off and on again.
Carry out sewing. Check that the left work clamp rises at a position of the trigger data and descends
at sewing start.
2-5 Outputting in succession (sequence output)
Create the program for sequence output after the work clamp rises at sewing finish, on the
assumption that the option output is for the stacker (the device that removes and stacks materials
after sewing finish).
Set the option output No. 15 to be ON and OFF first and then No.16 to be ON and OFF
synchronizing with the work clamp rise. The conditions of sewing finish are added in the following
2-6.
•Prepare the programmer, and display the output setting screen.
‚Referring to the condition number table of standard output (see page 192), set the output condition
of No. 15 to ON when the condition No. 30 (after work clamp rise) is set, and the timer 2 to 1.2
seconds (1200ms). Input on the setting screen as follows:
