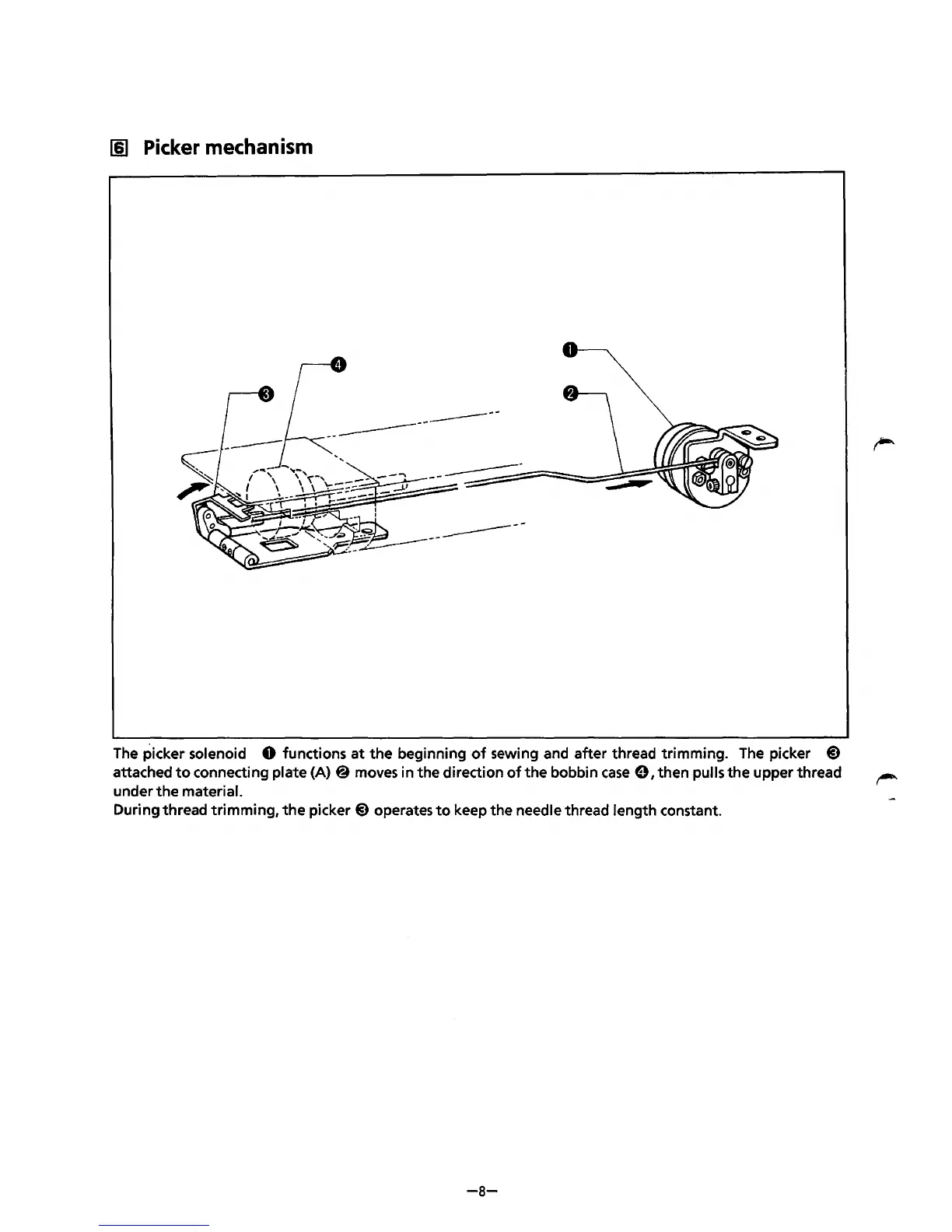

Picker
mechanism
------------
The
picker solenoid 0 functions
at
the
beginning
of
sewing and after thread trimming.
The
picker
@)
attached
to
connecting plate
(A)@
moves in the direction
of
the bobbin
case
e, then pulls the upper thread
under
the
material.
During thread trimming,
the
picker@) operates
to
keep the needle thread length constant.
-8-
