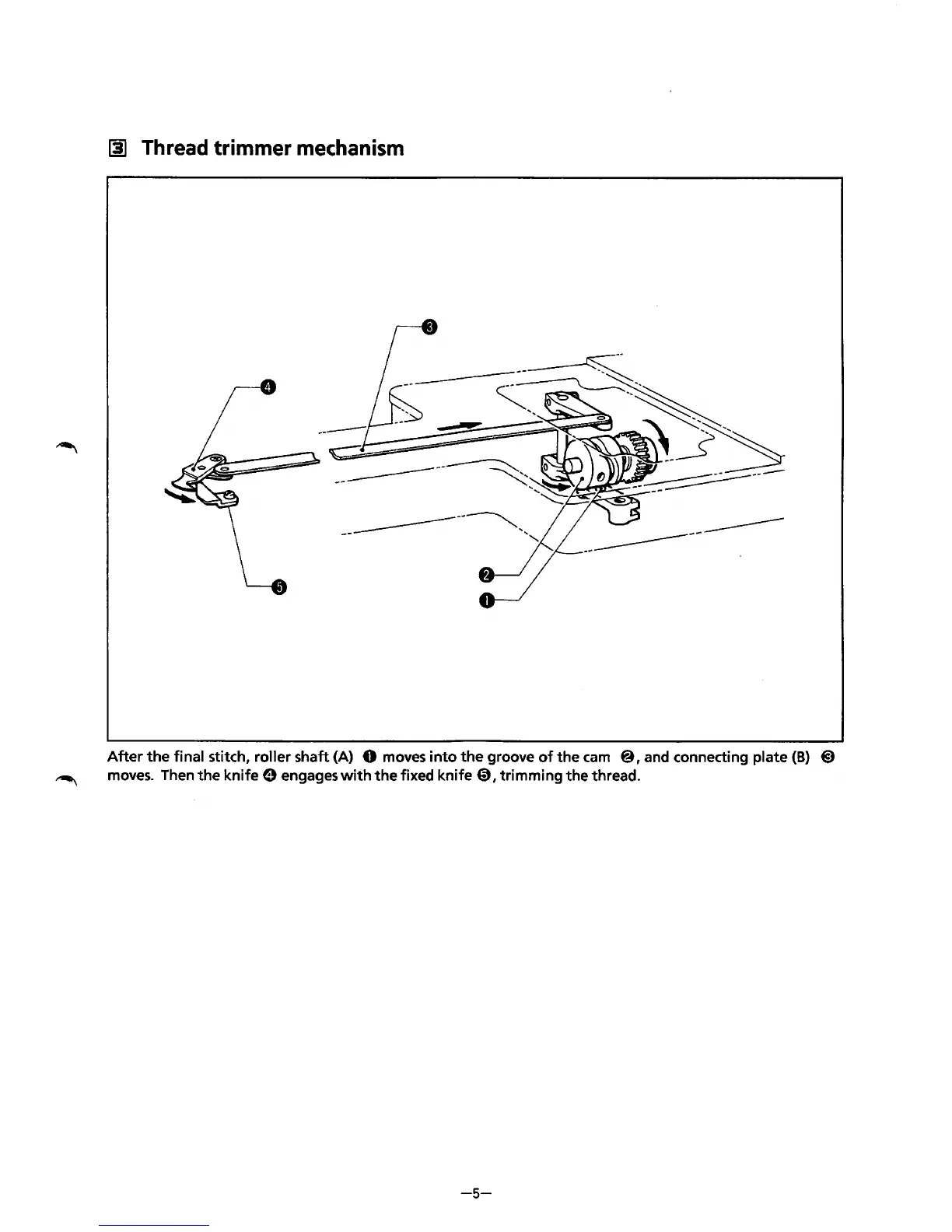

Thread trimmer
mechanism
-------------------
After
the
final stitch, roller shaft (A) 0
moves
into
the
groove
of
the
cam
@,and connecting plate
(B)
@)
~
moves.
Then the knife 0 engages
with
the fixed knife
0,
trimming the thread.
-5-
