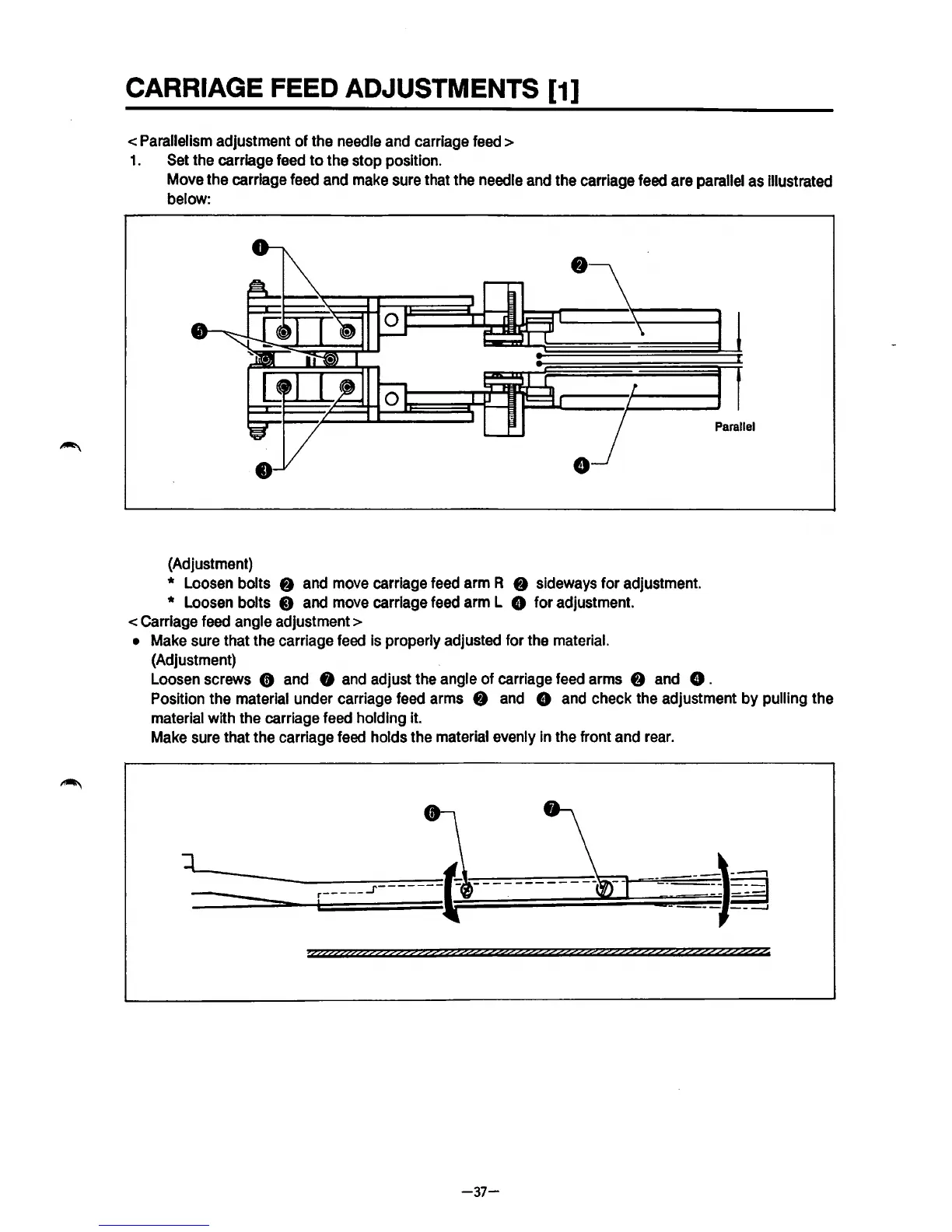

CARRIAGE FEED ADJUSTMENTS [1]
< Parallelism adjustment of the needle and carriage feed >
1. Set the carriage feed to the stop position.
Move the carriage feed and make sure that the needle and the carriage feed are parallel as Illustrated
below:
(Adjustment)
* Loosen bolts 8 and move carriage feed arm R 8 sideways for adjustment.
* Loosen bolts 8 and move carriage feed arm L 8 for adjustment.
<Carriage
feed angle adjustment>
• Make sure that the carriage feed Is properly adjusted for the material.
(Adjustment)
Loosen screws 8 and 0 and adjust the angle of carriage feed arms f) and 8 .
Position the material under carriage feed arms 8 and 8 and check the adjustment by pulling the
material with the carriage feed holding it.
Make sure that the carriage feed holds the material evenly In the front and rear.
>tpff??&??????????Zf??22???2?????2????????f?Z???Z??ZZ??Z??Z22??2Z?
-37-
