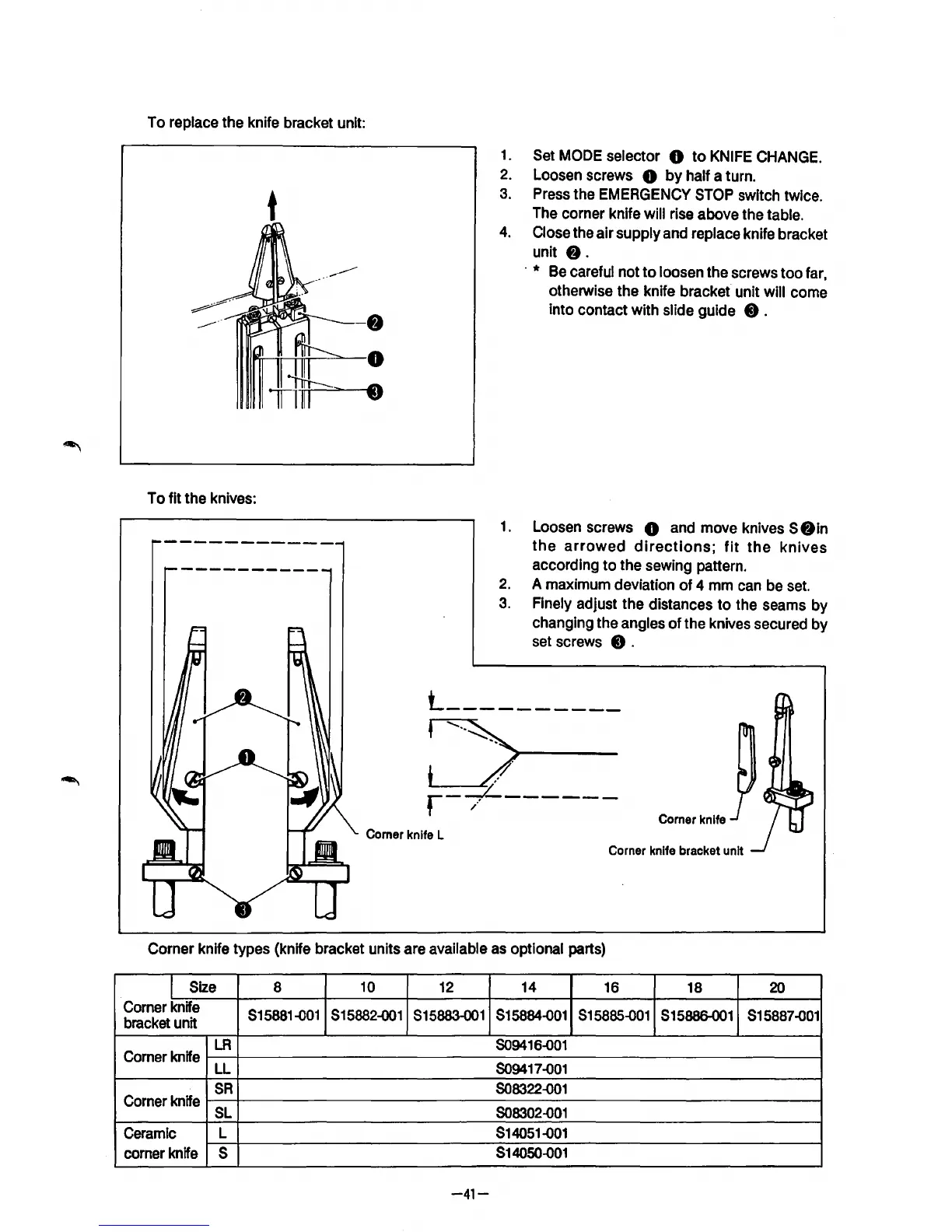

To replace the knife bracket unit:
t
-f)
IIJ!IiT--n-;....n.r.--=-o
lirt----..,
A
Tllll •
To
fit the knives:
-----------
1.
Set MODE selector 0
to
KNIFE CHANGE.
2.
Loosen screws 0
by
half a turn.
3.
Press the EMERGENCY STOP switch twice.
The corner knife
will rise above the table.
4.
Close the air supply and replace knife bracket
unit
8.
· * Be careful not
to
loosen the screws
too
far,
otherwise the knife
bracket" unit will come
into contact with
slide guide 8 .
1.
Loosen screws 0 and move knives S 8 in
the
arrowed
directions;
fit
the
knives
according
to
the sewing pattern.
2.
A maximum deviation
of
4 mm can be set.
3.
Finely adjust the distances
to
the seams by
changing the
angles
of
the knives secured by
set screws
8.
l
_________
_
:
--.),_____.
r-?L------
Comer knife
Comer knife L
Corner knife bracket unit
Corner knife types (knife bracket units are available as optional parts)
I Size
8
10
12
14
16
18
20
Comer knife
815881-001
S15882-()()1
S15883-()()1
S15884-001
S15885-001
S15886-001
815887-001
bracket unit
LR
809416-001
Corner knife
809417-001
LL
SR
808322-001
Corner knife
SL
808302.001
Ceramic
L
S14051.001
corner knife
s
814050.001
-41-
