Brother DCP-8110DN

3-13
Confidential

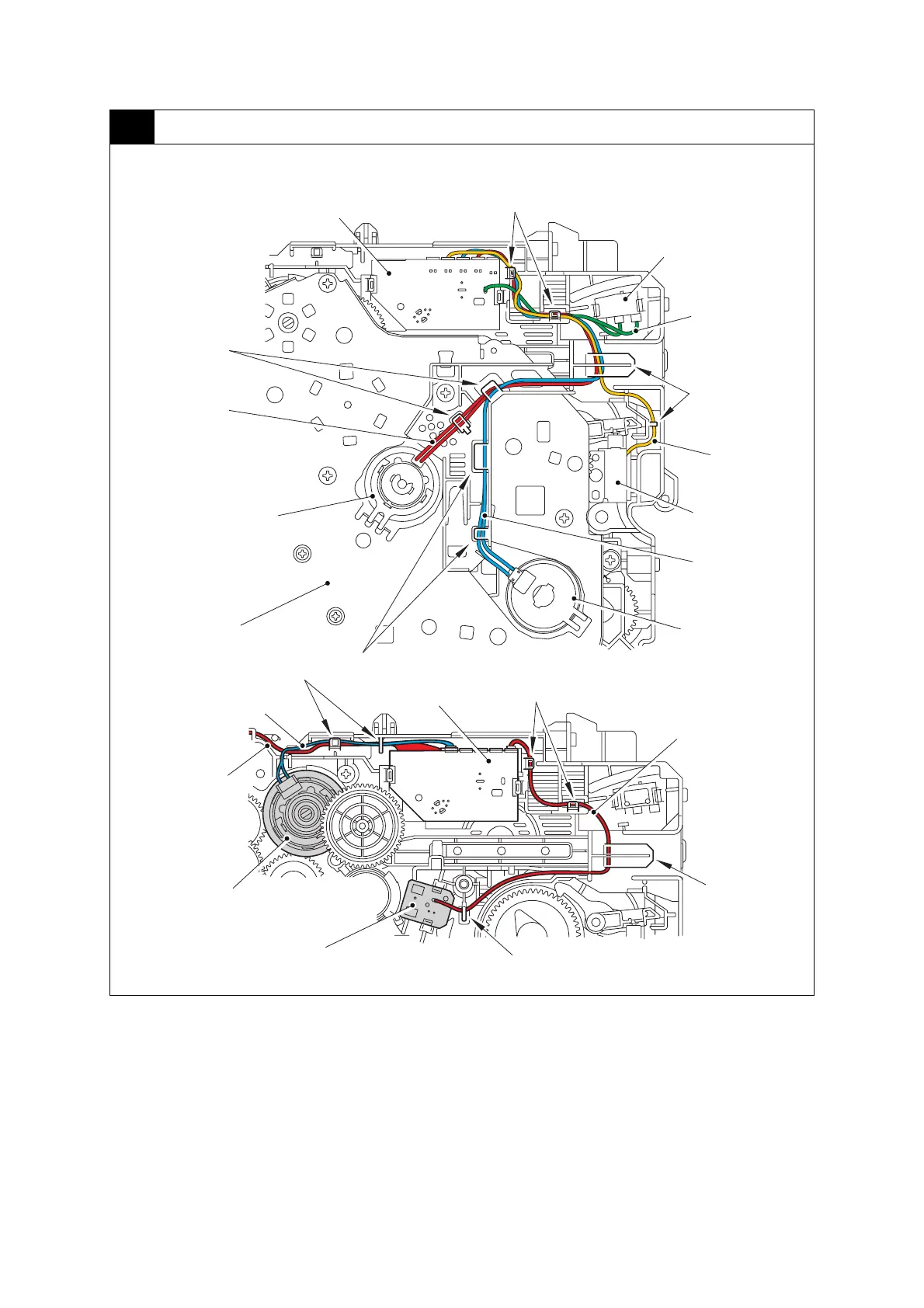

2 Relay front PCB ASSY
Harness colors may be changed for any reason.
Relay front PCB ASSY
Hooks
Front cover sensor
Front cover sensor
harness (RD, WH)
Hooks
MP solenoid
harness (WH)
MP solenoid
T1 clutch harness
(BK)
T1 clutch
Hooks
Registration clutch
harness (BK)
Drive sub ASSY
Relay front harness
(WH)
Develop clutch
harness (BL)
Hooks
Hooks
Relay front PCB ASSY
Toner sensor harness
(RD, WH)
Hook
Develop clutch 51R
Toner sensor PCB ASSY
Hooks
Registration clutch
Hook
