Brother DCP-8110DN

3-14
Confidential

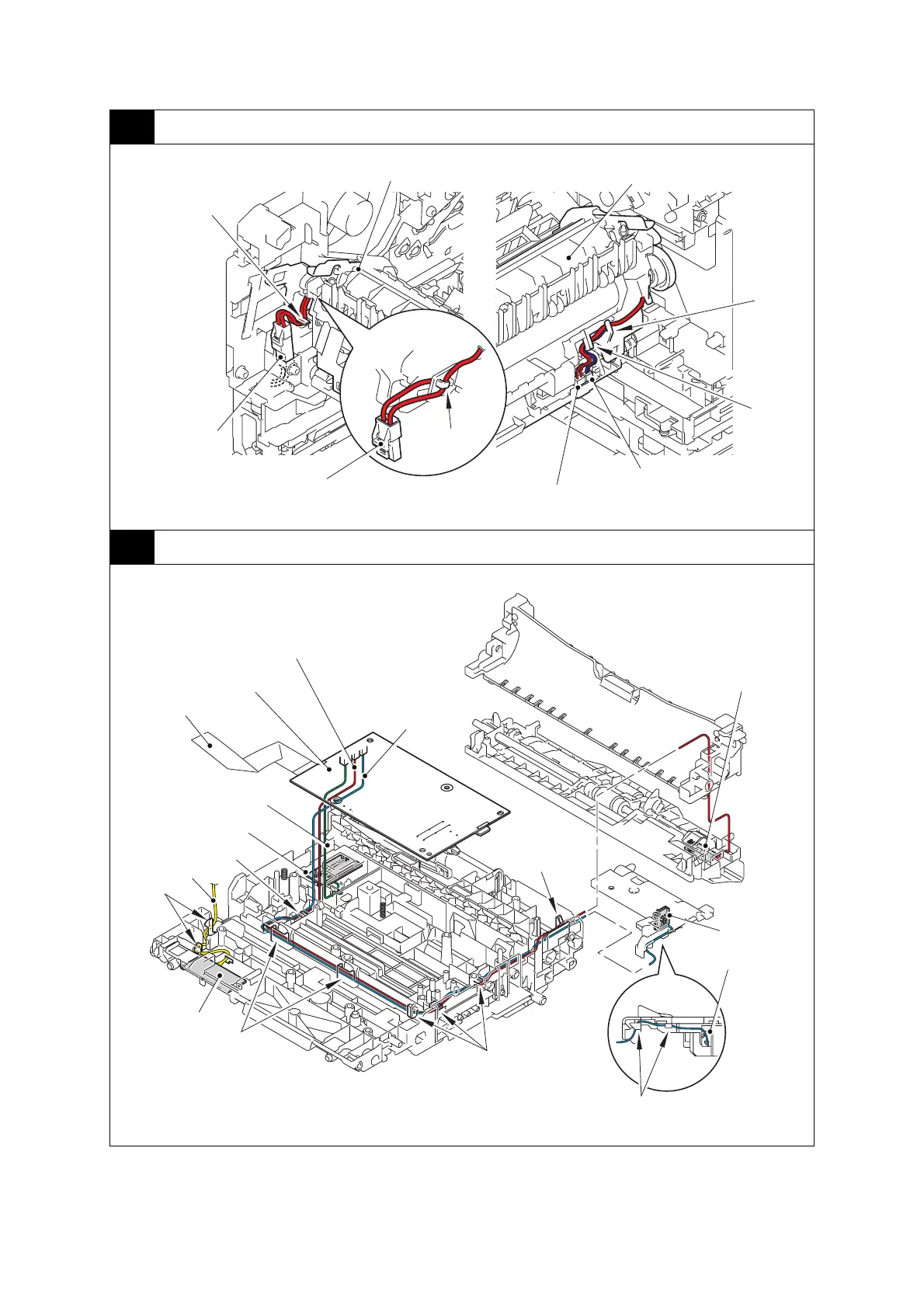

3 Fuser unit
4 High-voltage power supply PCB ASSY
Harness colors may be changed for any reason.
Fuser unit
Hook
Fuser unit
Heater harness (WH)
Center thermistor harness
(GR x 2)
Hook
Hook
Side thermistor harness
(WH x 2)
Low-voltage-
heater harness
Hook
High-voltage power
supply PCB ASSY
T1 paper feed sensor harness
(RD, BL, WH)
MP paper empty sensor
harness (RD, BL, WH)
Main HVPS flat cable
Registration front/rear
sensor harness (RD, BL, WH)
Hook
Hooks
Hooks
Hooks
T1 paper feed
sensor PCB ASSY
Registration front/rear
sensor PCB ASSY
Hook
MP paper empty
sensor PCB ASSY
Hooks
Eject sensor
PCB ASSY
Eject sensor
harness (RD, BL, WH)
