3-67

Confidential

(6) Remove the CIS carriage from the CIS drive belt.

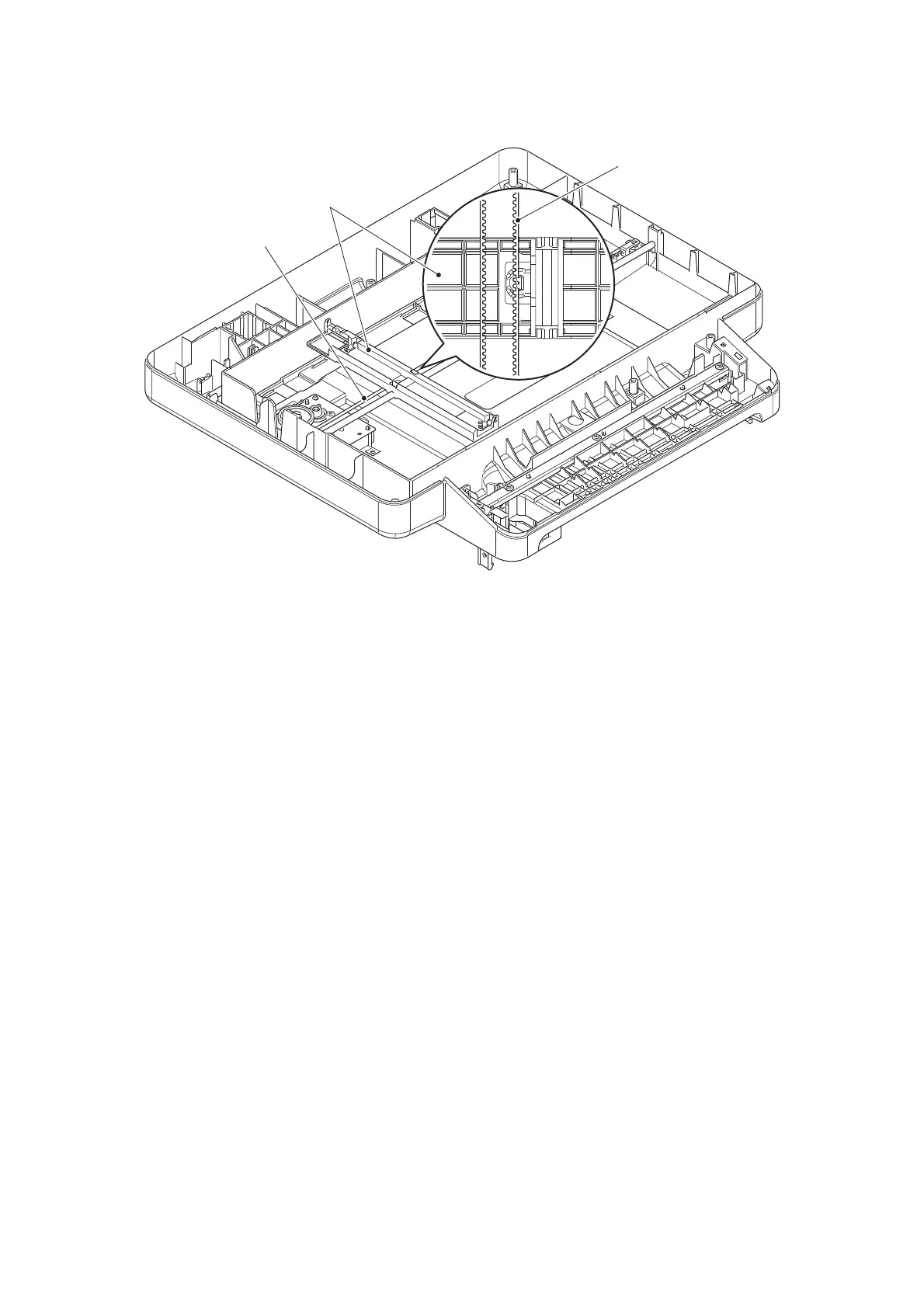

Fig. 3-63

CIS drive belt

CIS carriage

CIS drive belt
