3-68

Confidential

(7) Remove the first side CIS flat cable behind the CIS carriage from the double-sided tape.

(8) Remove the first side CIS flat cable from the document scanner unit.

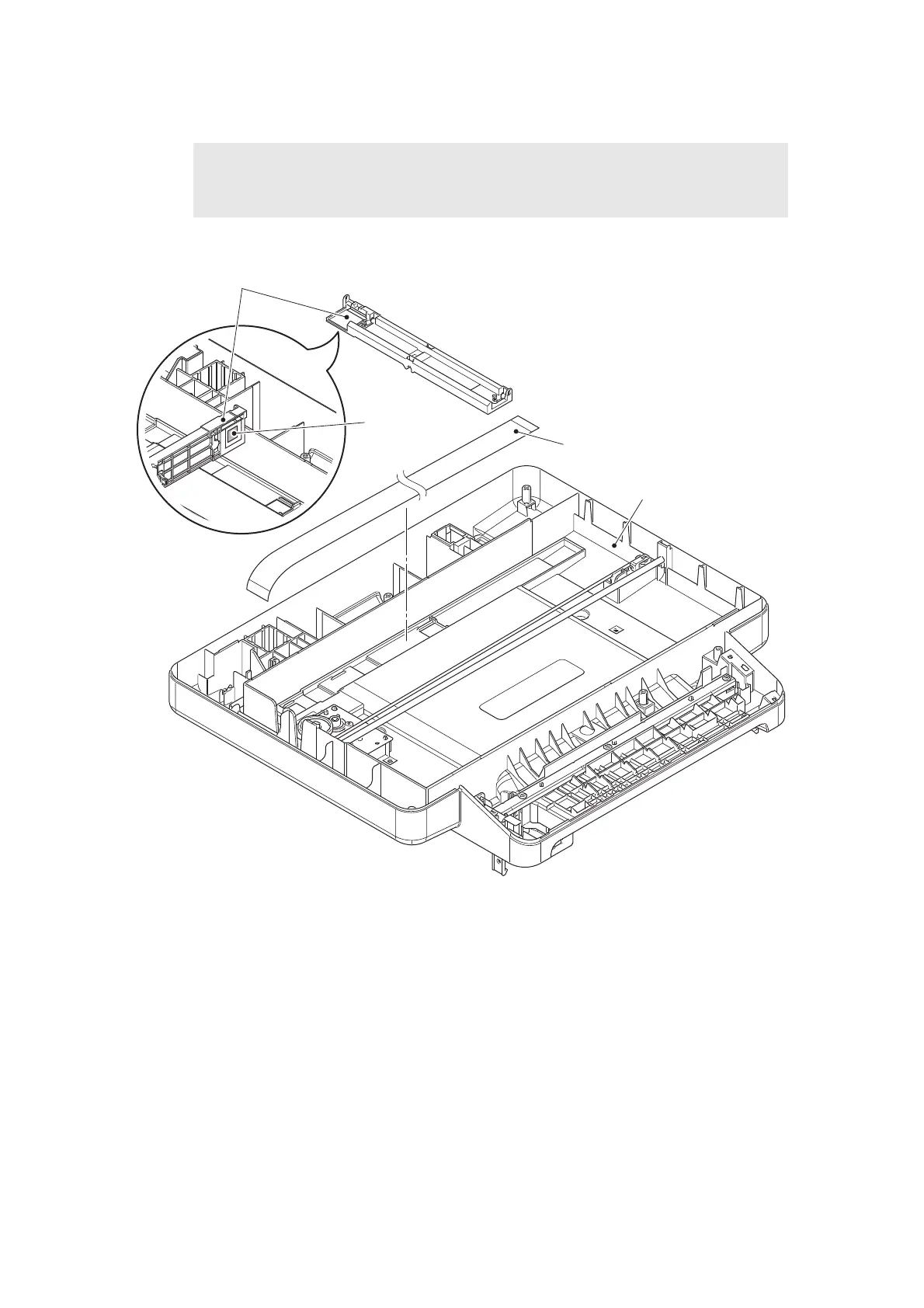

Fig. 3-64

Harness routing: Refer to “5. Document scanner unit”.

Note:

• Once the double-sided tape is removed from the first side CIS flat cable, replace it

with a new one.

Document scanner unit

CIS carriage

First side CIS flat cable

Double-sided tape
