Brother HL-5130 - Front View

ABOUT THIS PRINTER 1 - 2

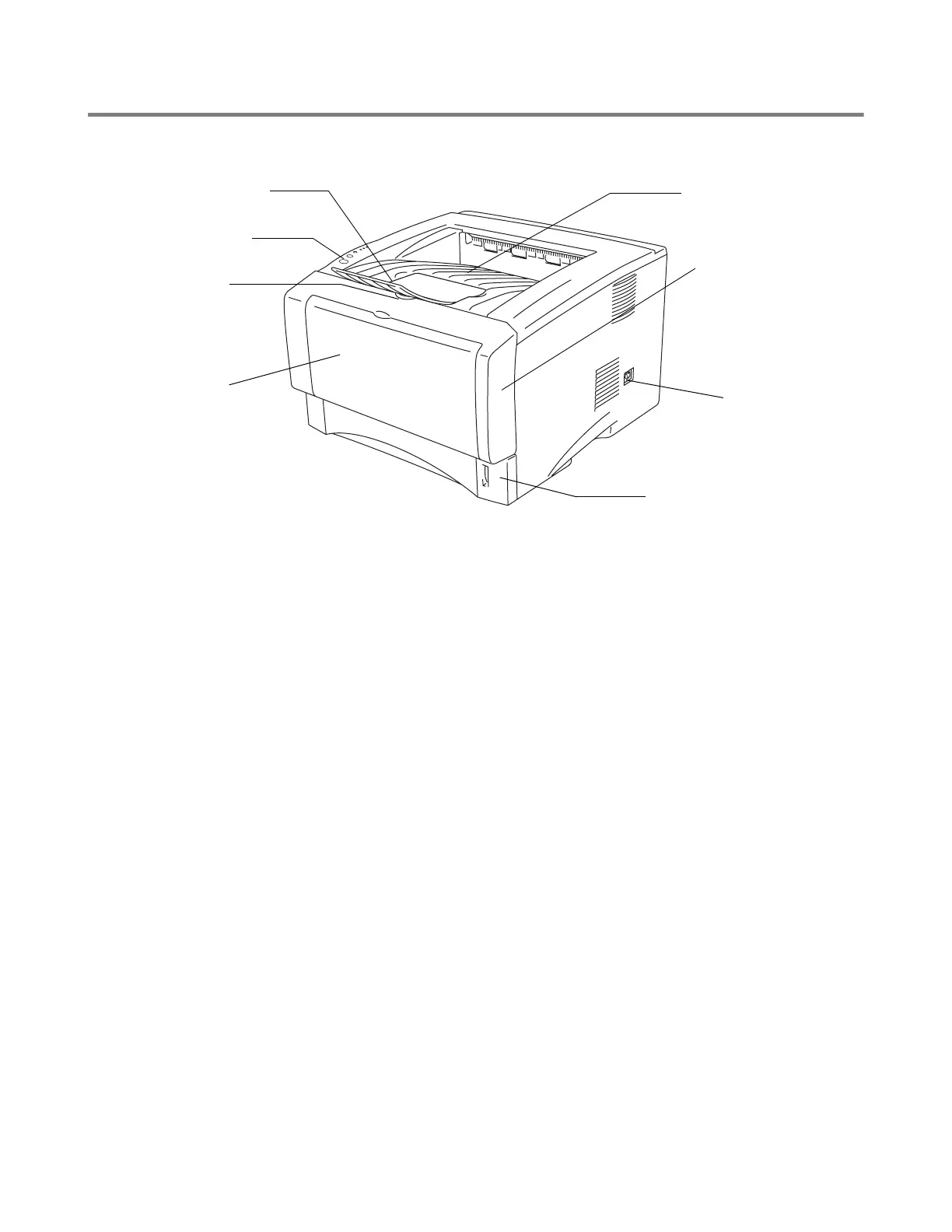

Front view
Front View*
Figure 1-1
1 Face-down Output Tray Support Flap (Support Flap)
2 Control Panel
3 Front Cover Release Button
4 (HL-5130 and HL-5140) Manual Feed Tray
(HL-5150D and HL-5170DN) Multi-purpose Tray (MP Tray)
5 Paper Tray
6 Power Switch
7 Front Cover
8 Face-down Output Tray
* The printer illustration is based on HL-5150D and HL-5170DN.
