Brother MFC 6890CDW Quick Setup Guide

34
For Wireless Network Users
18

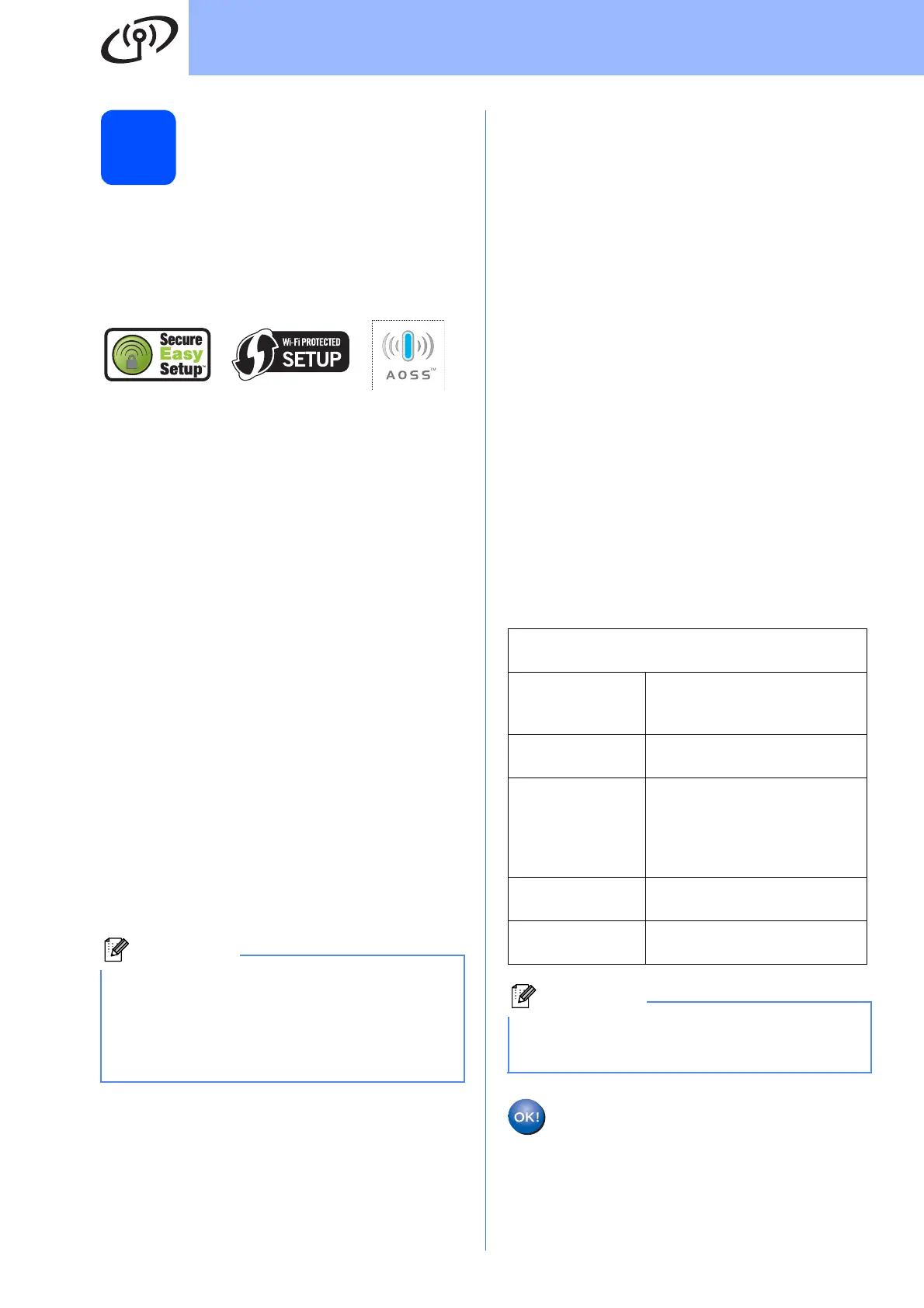

Configure the wireless
settings using the
automatic wireless (one-
push) method
a Confirm your wireless router/access point has
the SecureEasySetup™, Wi-Fi Protected
Setup™ or AOSS™ symbol as shown below.
b Place the Brother machine within range of a
SecureEasySetup™, Wi-Fi Protected Setup™
or AOSS™ access point/router. The range may
differ depending on your environment. Refer to
the instructions provided with your router/access
point.
c Push the SecureEasySetup™, Wi-Fi Protected
Setup™ or AOSS™ button on your wireless
router/access point .
See the user’s guide for your wireless
router/access point for instructions.
d On your machine, press MENU.
Press a or b to display Network and press
Network.
Press WLAN.
Press SES/WPS/AOSS.
When Switch Network interface to
wireless? is displayed, press Yes to accept.
This will start the wireless setup wizard.
To cancel, press No.
This feature will automatically detect which
mode (SecureEasySetup™, Wi-Fi Protected
Setup™ or AOSS™) your access point uses to
configure your machine.
e If the LCD shows Connected, the machine
has successfully connected to your
router/access point. You can now use your
machine in a wireless network.
If the LCD shows Setting WLAN,
Connecting SES (Connecting WPS or
Connecting AOSS), then
Connection Failed, the machine has not
successfully connected to your router/access
point. Try starting from c again. If the same
message is indicated again, reset the machine
back to the default factory settings and try
again. For resetting, see Restore the network
settings to factory default on page 47.
If the LCD shows Setting WLAN , then
Connection Failed or Incorrect Mode , a
session overlap or connection failure was
detected (see the table below). The machine has
detected 2 or more router/access points on your
network that have the SecureEasySetup™, Wi-Fi
Protected Setup™ mode or AOSS™ mode
enabled. Make sure that only one router/access
point has the SecureEasySetup™, Wi-Fi
Protected Setup™ mode or AOSS™ mode
enabled and try starting from
c again.
Wireless setup is now complete.
Note
If your wireless access point supports Wi-Fi
Protected Setup™ (PIN Method) and you want to
configure your machine using the PIN (Personal
Identification Number) Method, see Using the PIN
Method of Wi-Fi Protected Setup™ in the Network
User’s Guide on the CD-ROM.
LCD messages when using the
SES/WPS/AOSS control panel menu
Setting WLAN Searching or accessing the
access point and downloading
settings from the access point.
Connecting
SES/WPS/AOSS
Connecting to the access
point.
Connection
Failed
Connection failed. If this is
shown after the LCD shows
Connecting
SES/WPS/AOSS, a session
overlap was detected.
Incorrect
Mode
A session overlap was
detected.
Connected The machine has successfully
connected.
Note
If you encounter a problem during setup,
temporarily place your machine closer to the
wireless access point, and go back to c.

Brother MFC 6890CDW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	28 ppm
Digital sender	No
Number of print cartridges	4
Scan to	E-mail, FTP, USB
Duplex scanning	Yes
Grayscale levels	256
Input color depth	48 bit
Image formats supported	BMP, PNG
Copier resize	25 - 400 %
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	23 cpm
Copy speed (color, normal quality, A4)	20 cpm
Faxing	Color faxing
Fax memory	480 pages
Modem speed	33.6 Kbit/s
Total input capacity	350 sheets
Total output capacity	50 sheets
Display diagonal	4.2 \
Market positioning	Home & office
Processor family	RISC
Sound pressure level (printing)	50 dB
Media weight (tray 1)	64 - 220 g/m²
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5
Borderless printing media sizes	A3, A4, A6
Maximum ISO A-series paper size	A3
Scan speed	4.49 sec/page
Dimensions (WxDxH)	540 x 488 x 323 mm
Power requirements	AC 220 -240V, 50/60Hz
Networking features	10/100 Base-TX
Wireless technology	802.11b/g
All-in-one functions	Copy, Fax, Scan
Color all-in-one functions	copy, fax, print, scan
Compatible operating systems	Windows: Vista, 2000 Prof., XP Home Edition/Prof. Edition (32 & 62 bits), Server 2003 (32 & 64 bits), Server 2008. Mac OS X 10.2 & later Linux: for CUPS printing system (x86, x64 environment) Printer & scanner driver
Supported network protocols (IPv4)	IPv4: ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), NetBIOS/WINS, LPR/LPD, Custom Raw Port/Port9100, DNS Resolver, mDNS, FTP Server, TELNET, SNMPv1, TFTP, Scanner Port, LLTD, responder, Web Services, SMTP Client, POP before SMTP, SMTP-AUTH, POP3, APOP, FTP Client, LDAP
Standard interfaces	USB 2.0
USB 2.0 ports quantity	1
Power consumption (standby)	6.4 W
Power consumption (PowerSave)	4.5 W
Power consumption (average operating)	29 W
Operating relative humidity (H-H)	20 - 80 %
Package weight	22100 g
Bundled software	Brother MFL-pro suite in Windows: BrotherControlCentre 3 Scansoft Paperport 11SE + OCR, Macintosh:BrotherControlCentre 2 Newsoft Presto! Page manager 7
