Brother MFC-790CW Quick Setup Guide

16
Macintosh
®
USB
For USB Interface Users (For Mac OS
®
X 10.2.4 or greater)
14

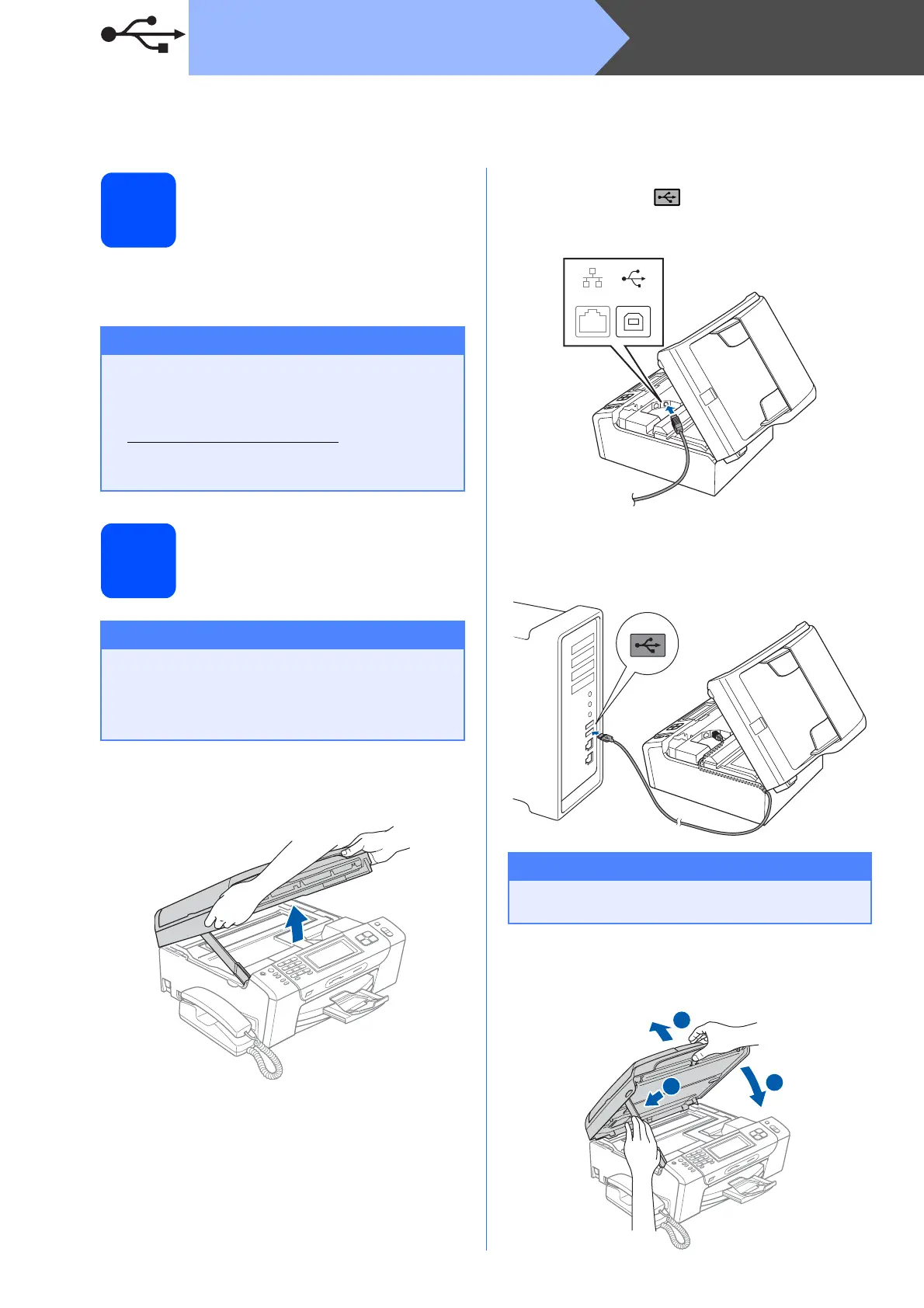

Before you install
a Make sure your machine is connected to the
power and your Macintosh
®
is ON. You must
be logged on with Administrator rights.
15
Connect the USB cable
a Using both hands, use the plastic tabs on both
sides of the machine to lift the scanner cover
until it locks securely into the open position.
b Connect the USB cable to the USB socket
marked with a symbol. You will find the
USB socket inside the machine on the right as
shown below.
c Carefully guide the USB cable through the
trench as shown below, following the trench
around and toward the back of the machine.
Then connect the cable to your Macintosh
®
.
d Lift the scanner cover to release the lock a.
Gently push the scanner cover support
down b and close the scanner cover c.
Important
• For Mac OS
®
X 10.2.0 to 10.2.3 users,
upgrade to Mac OS
®
X 10.2.4 or greater. (For
the latest information for Mac OS
®
X, visit
http://solutions.brother.com/
)
• Make sure there are no memory cards or a
USB Flash memory drive inserted.
Important
• DO NOT connect the machine to a non-
powered USB hub.
• Connect the machine directly to your
Macintosh
®
.
Important
Make sure that the cable does not restrict the
cover from closing, or an error may occur.
LAN USB
1
3
2
