Brother MFC-8420 Quick Setup Guide

2

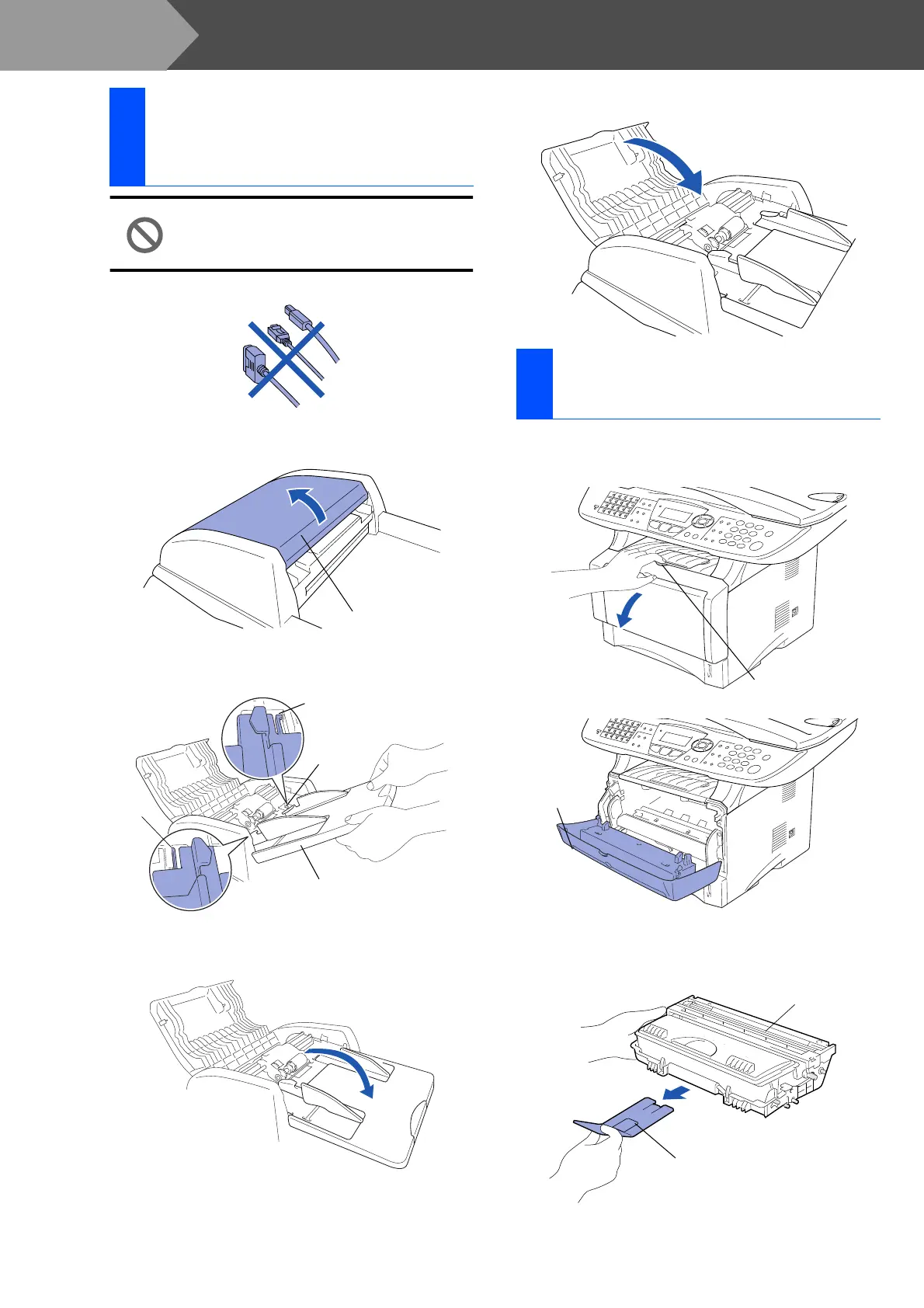

Setting Up the Machine
Do NOT connect the interface cable.
Connecting the interface cable is
done when installing the driver.
1
Open the ADF cover.
2
Insert the tabs of ADF support into the holes
of the ADF one side at a time.
3
Push ADF Support down until it latches in
place.
4
Close the ADF cover.
1
Open the front cover by pressing the front
cover release button.
2
Unpack the drum unit assembly.
Remove the protective part.
1
Install the Automatic
Document Feed (ADF)
Support
ADF Cover
Hole
Tab
ADF support
Tab
2
Install the Drum Unit
Assembly
Front Cover
Release Button
Front Cover
Drum Unit
Assembly
Protective part
Step 1
