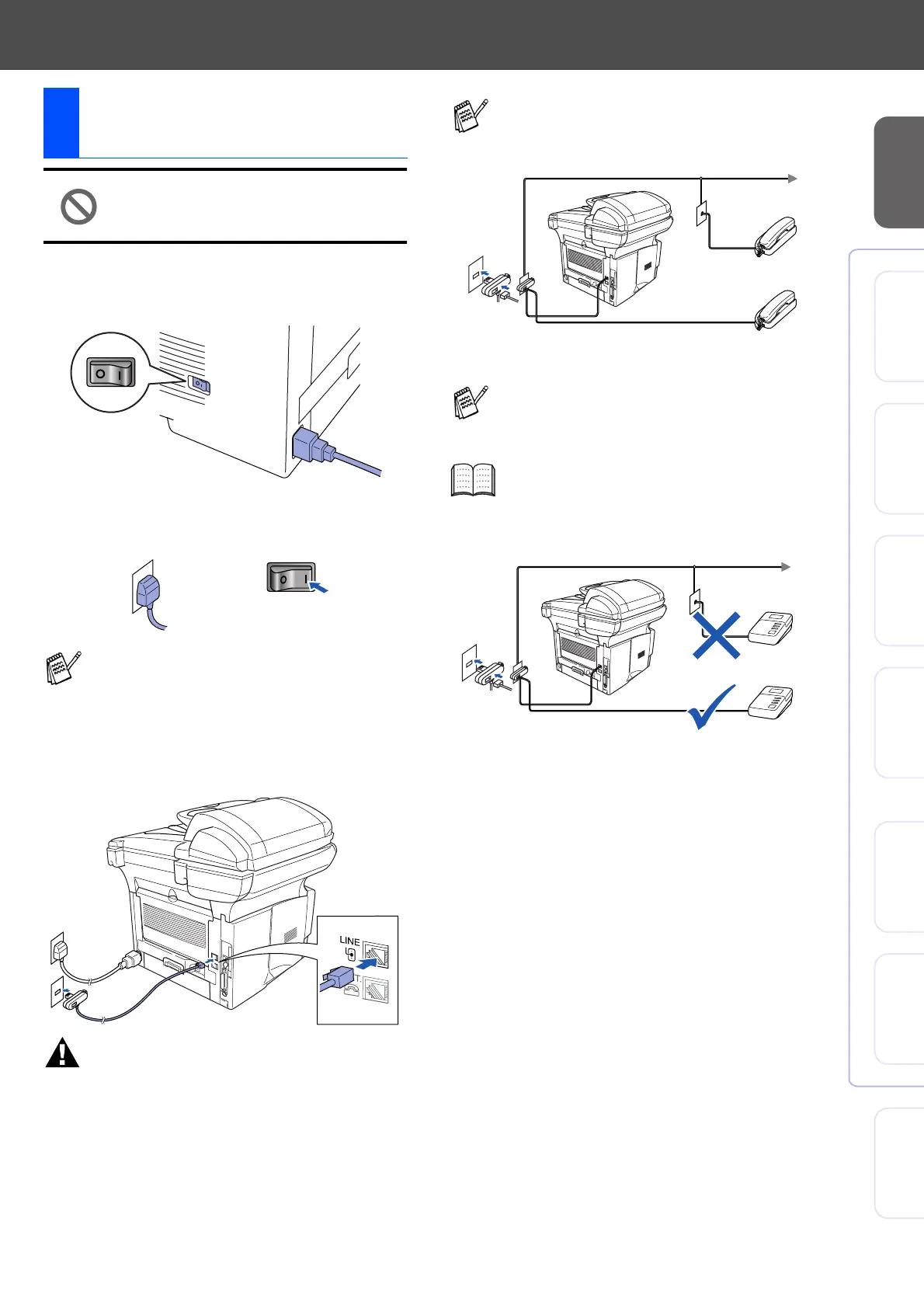

1
Make sure that the power switch is off.
Connect the AC power cord to the machine.
2
Plug the AC power cord into an AC outlet.
Turn the power switch on.
3
Connect one end of the telephone line cord
to the socket on the MFC marked LINE and
the other end to a modular wall socket.
Warning
■ The MFC must be fitted with an earthed plug.
■ Since the MFC is grounded through the power
outlet, you can protect yourself from potentially
hazardous electrical conditions on the telephone
network by keeping the power to your MFC on
when you connect it to a telephone line. Similarly,
you can protect yourself when you want to move
your MFC by disconnecting the telephone line first
and then the power cord.
5
Install Power Cord and
Phone Line
If Check Scan Lock appears on the LCD,
immediately release the scanner lock and
press Stop/Exit.
If you are sharing one phone line with an
external telephone, connect it as shown
below.
If you are sharing one phone line with an
external telephone answering device,
connect it as shown below.
Please set the receive mode to External
TAD.
For more details, see “Connecting the
MFC” in Chapter 1 of the User’s Guide.
Extension
Telephone
External
Telephone
(Example
for the U.K.)
TAD
TAD
(Example
for the U.K.)
To Next Page
