2-121
Confidential

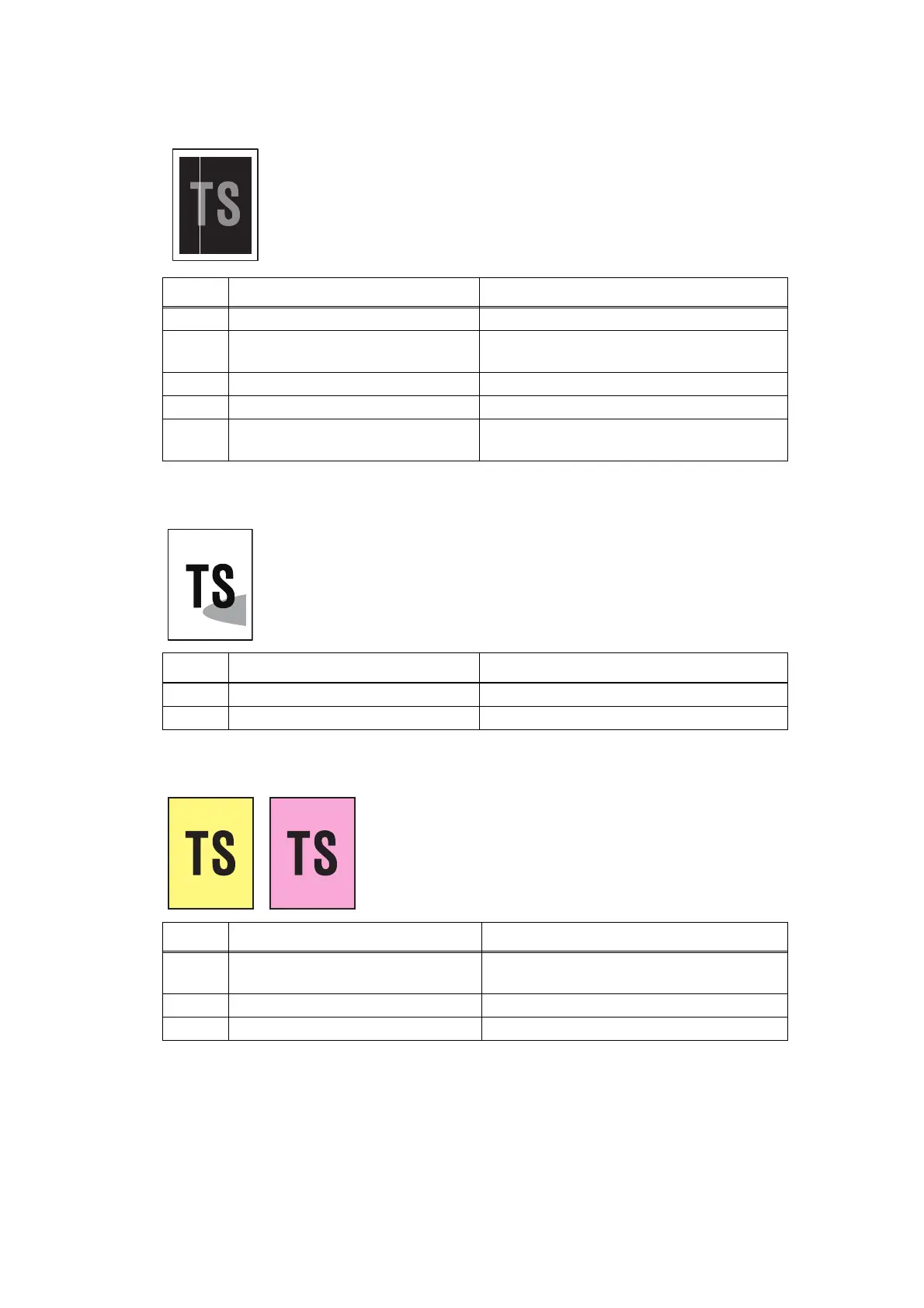

White streaks
Partially shaded
Fully tinged
<User Check>
• Clean the scanner glass or first side/second side scanner glass
strip.
• Clean the document hold.
Step Cause Remedy
1 Dirt inside of scanner glass Clean the inside of the scanner glass.
2
Dirt inside of first side/second side
scanner glass strip
Clean the inside of the first side/second side
scanner glass strip.
3 First or second side CIS unit failure Replace the first or second side CIS unit.
4 Scratch on scanner glass Replace the document scanner unit.
5
Scratch on second side scanner
glass strip
Replace the ADF unit.
<User Check>
• Clean the scanner glass.
Step Cause Remedy
1 Dirt inside of scanner glass Clean the inside of scanner glass.
2 Deformed document sponge Replace the document scanner unit.
<User Check>
• Clean the scanner glass or first side/second side
scanner glass strip.
Step Cause Remedy
1
Incorrect white level correction data Execute "Acquire white level data (function
code: 55)".
2 First or second side CIS unit failure Replace the first or second side CIS unit.
3 Main PCB failure Replace the main PCB ASSY.
To Next Page
