3-22

Confidential

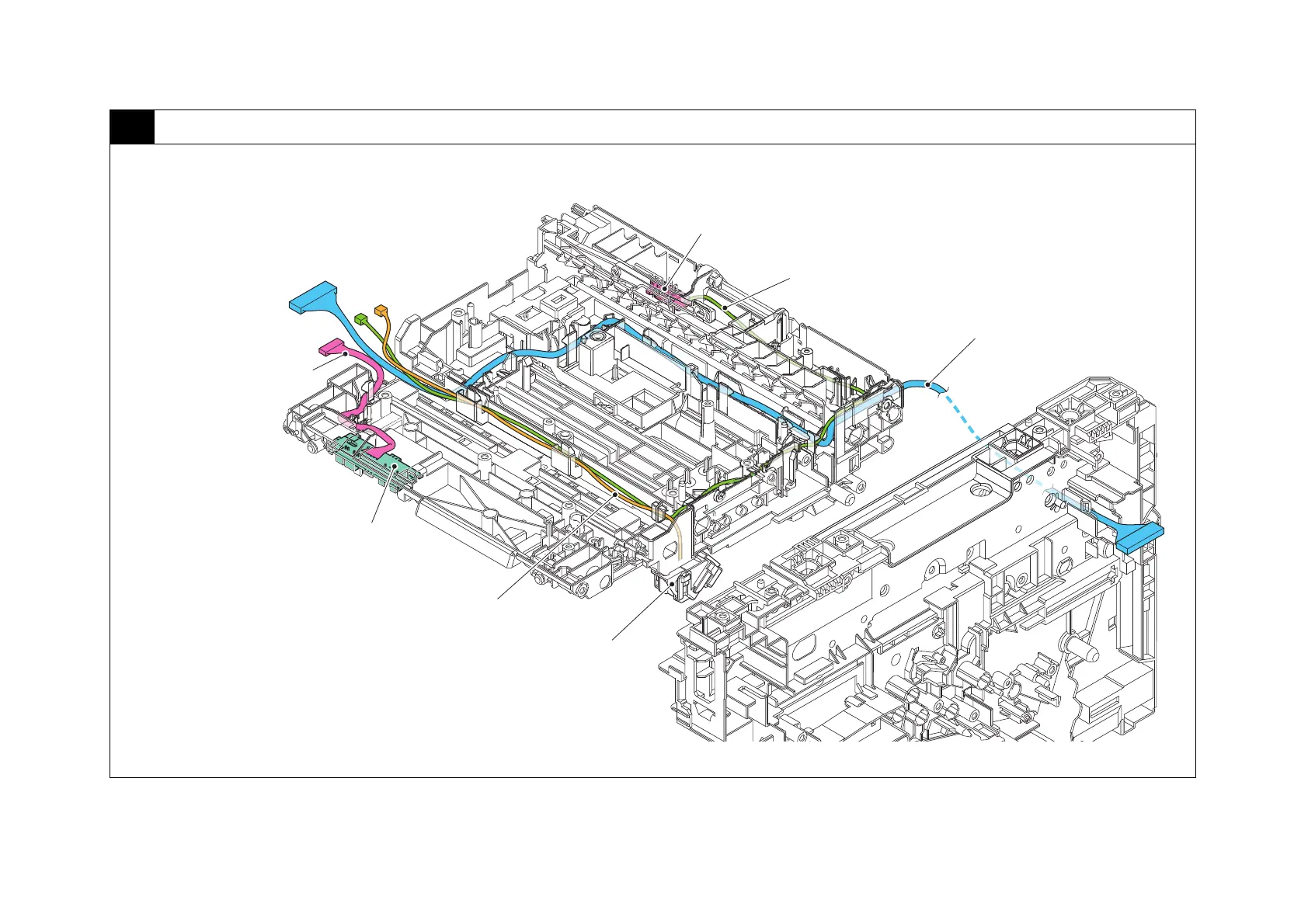

Bottom side of the machine

Harness colors are subject to change for some reason.

Eject sensor harness

(OR,YW, WH, GR, BL, BK, RD)

Paper empty sensor harness (WH)

(Models with USB host on the rear side only)

Paper empty sensor PCB ASSY

(Models with USB host on the rear side only)

Low-voltage power supply harness (WH, BK)

Eject sensor PCB ASSY

Erase lamp harness (RD, WH) (Models with 520-sheet T1 only)

Erase lamp (Models with 520-sheet T1 only)
