3-29

Confidential

(4) Push the hook on the lift gear Z27M10 (or lift gear Z48M10) while lifting the plate-up

plate, and remove the lift gear Z27M10 (or lift gear Z48M10) from the paper tray.

250-sheet: Lift gear Z27M10

520-sheet: Lift gear Z48M10

(5) Remove the gear Z22M10 and the idle gear Z18M10 or 50 Z18M10 from the paper tray.

250-sheet: Idle gear Z18M10

520-sheet: Idle gear 50 Z18M10

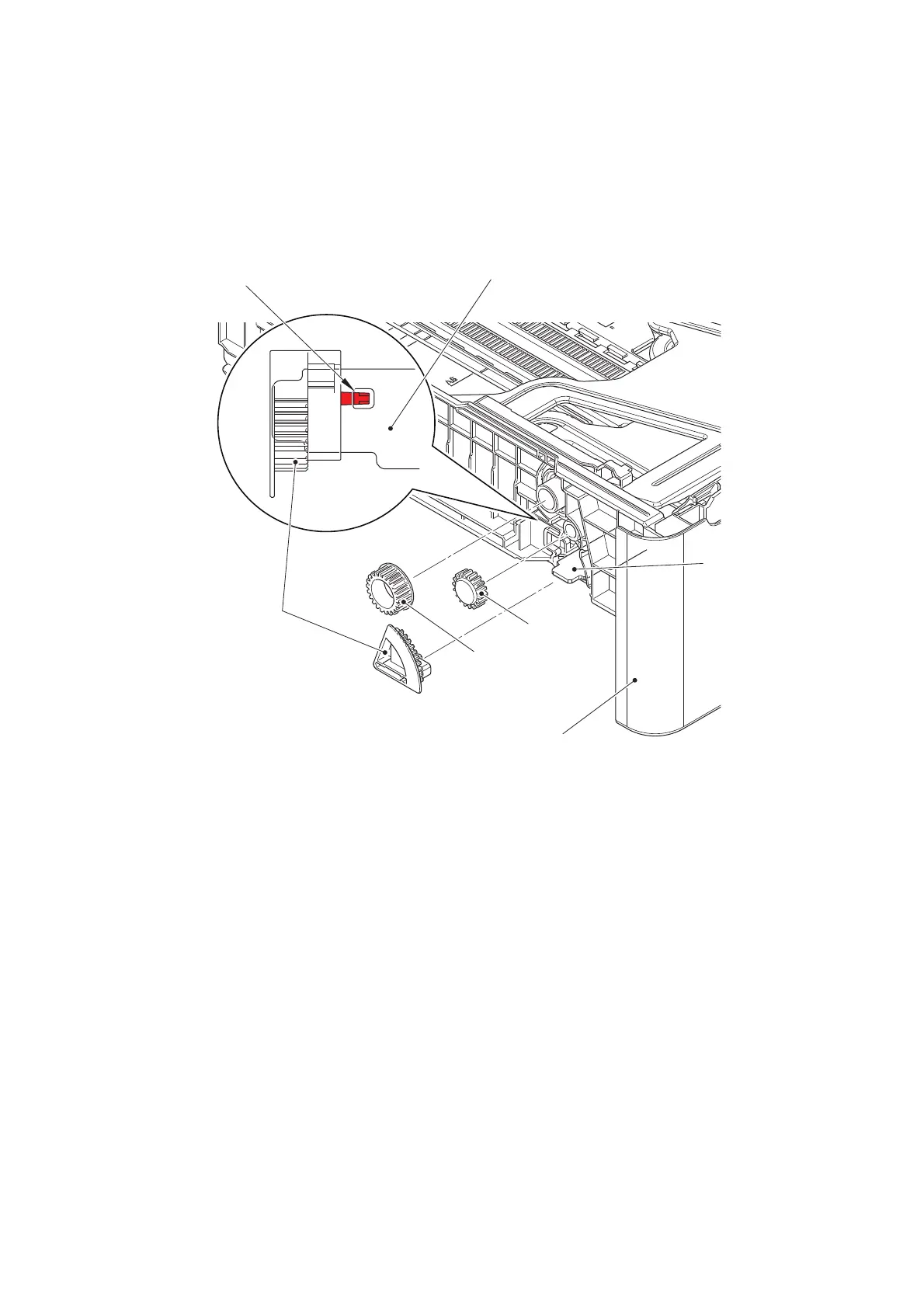

Fig. 3-14

Gear Z22M10

Idle gear Z18M10 or

50 Z18M10

Lift gear Z27M10 or

Lift gear Z48M10

Paper tray

Plate-up plate

Hook
