3-44

Confidential

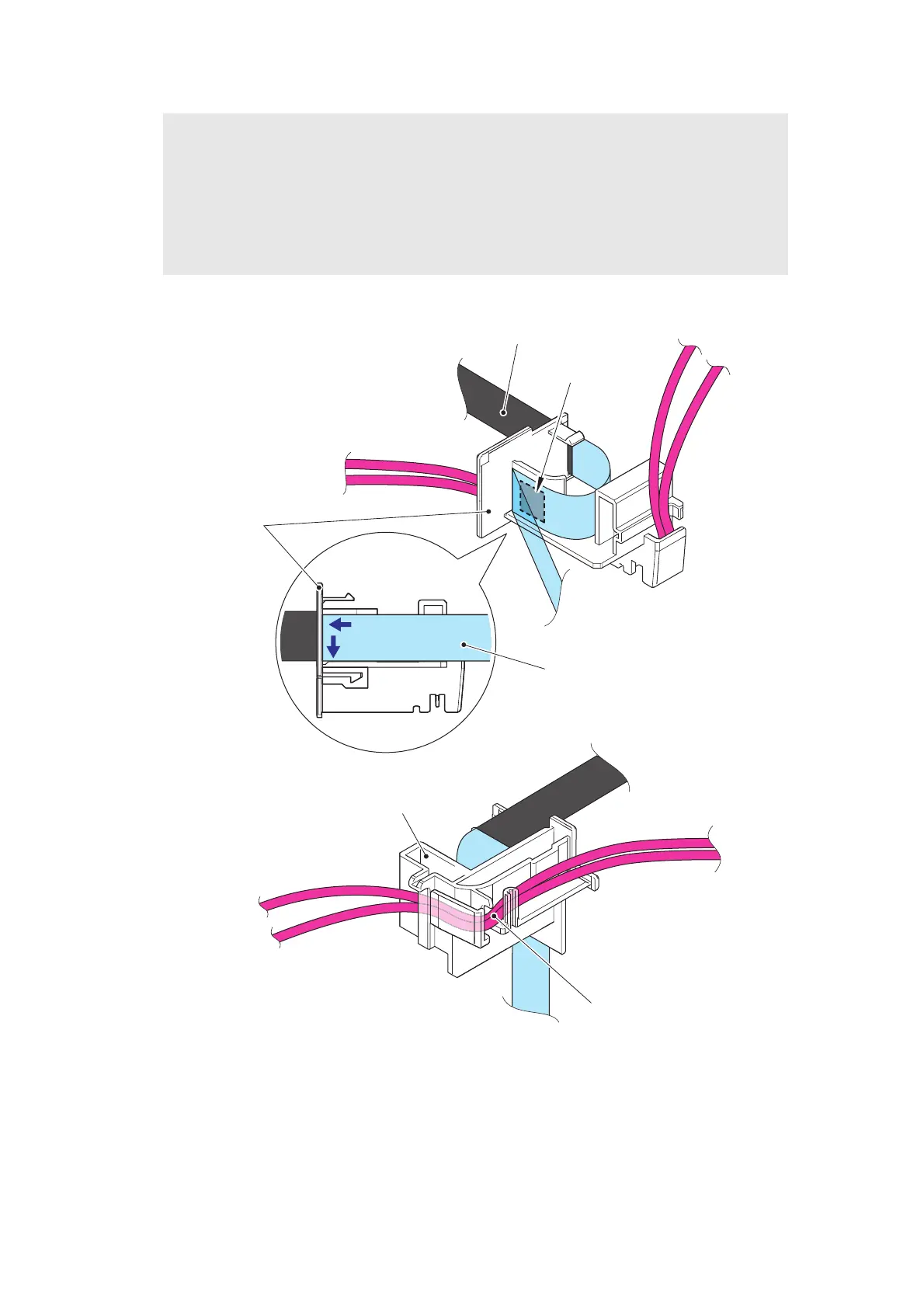

Fig. 3-34

Assembling Note:

• Connect the ADF sensor harness and second side CIS flat cable* to the flat cable

holder as described in the figure below.

• In order to attach the second side CIS flat cable to the flat cable holder, attach it

properly in the direction of the arrows.

• For the sticking position of the double-sided tape, refer to the folding diagram of the flat

cable, Fig. 3-46, Fig. 3-47 and Fig. 3-48.

Second side CIS flat cable*

Flat cable holder

Double-sided tape

ADF sensor harness

* Models with duplex scanning only

Flat cable holder

Second side CIS flat cable*

Default Chapter1
- Service Manual1
