3-53

Confidential

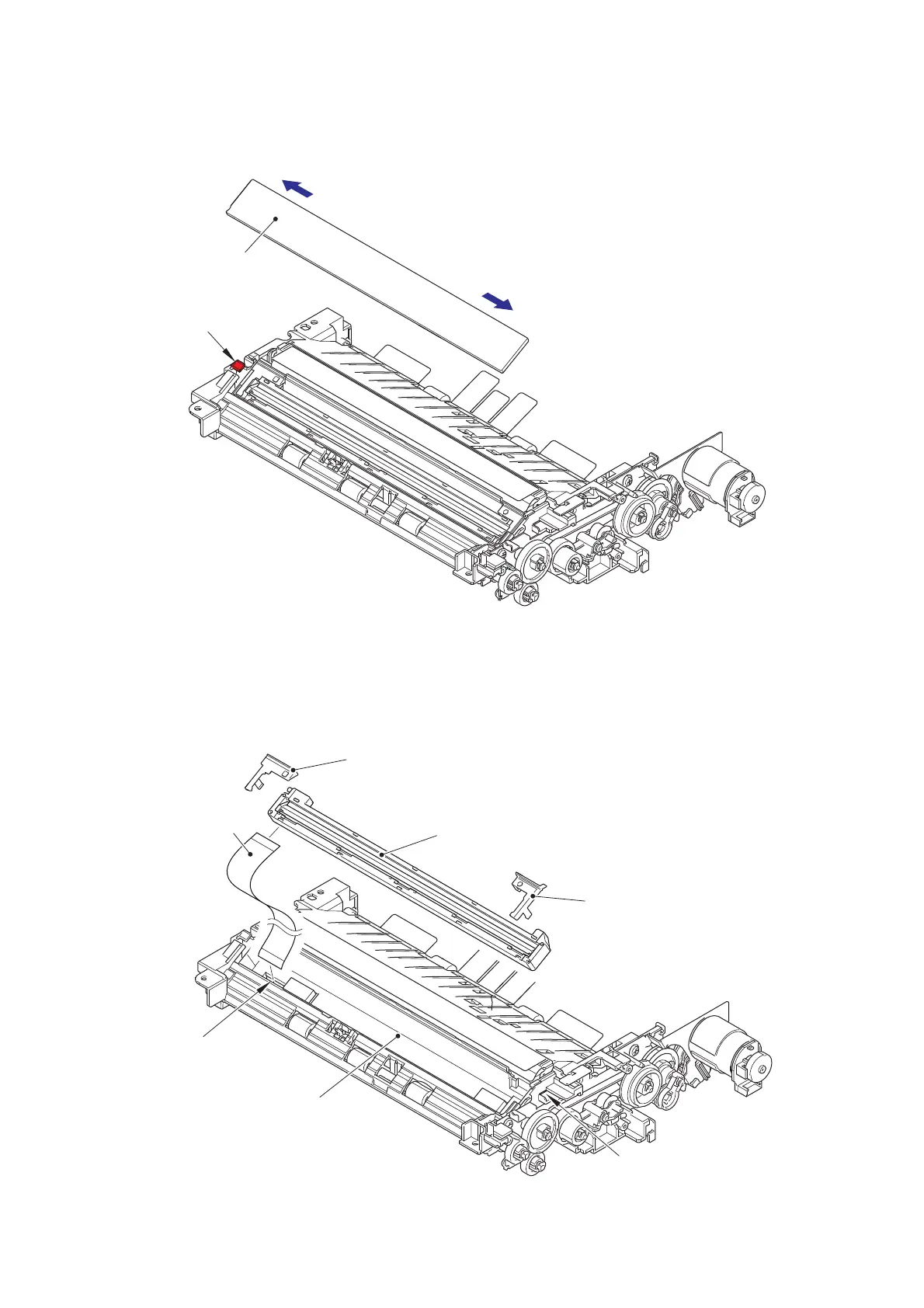

(5) Lift the hook and slide the second side scanner glass strip in the direction of the arrow

5a. Lift the right end of the second side scanner glass strip to remove it in the direction of

the arrow 5b.

Fig. 3-44

(6) Remove the CIS spacer R and CIS spacer F from the second side CIS unit.

(7) Remove the second side CIS unit from the lower document chute, and pull out the

second side CIS flat cable from the two holes of the lower document chute.

(8) Disconnect the second side CIS flat cable from the second side CIS unit.

Fig. 3-45

Second side scanner

glass strip

Hook

Lower document chute

CIS spacer F

CIS spacer R

Second side CIS unit

Hole

Second side

CIS flat cable
