3-95

Confidential

 Common to all models

(11) Remove the four taptite cup S M3x8 SR screws and four taptite bind B M4x12 screws.

Remove the main frame L ASSY, and pull out the erase lamp harness*, paper empty

sensor harness*, low-voltage power supply harness, eject sensor harness, and HVPS

flat cable from the hole of the main frame L ASSY.

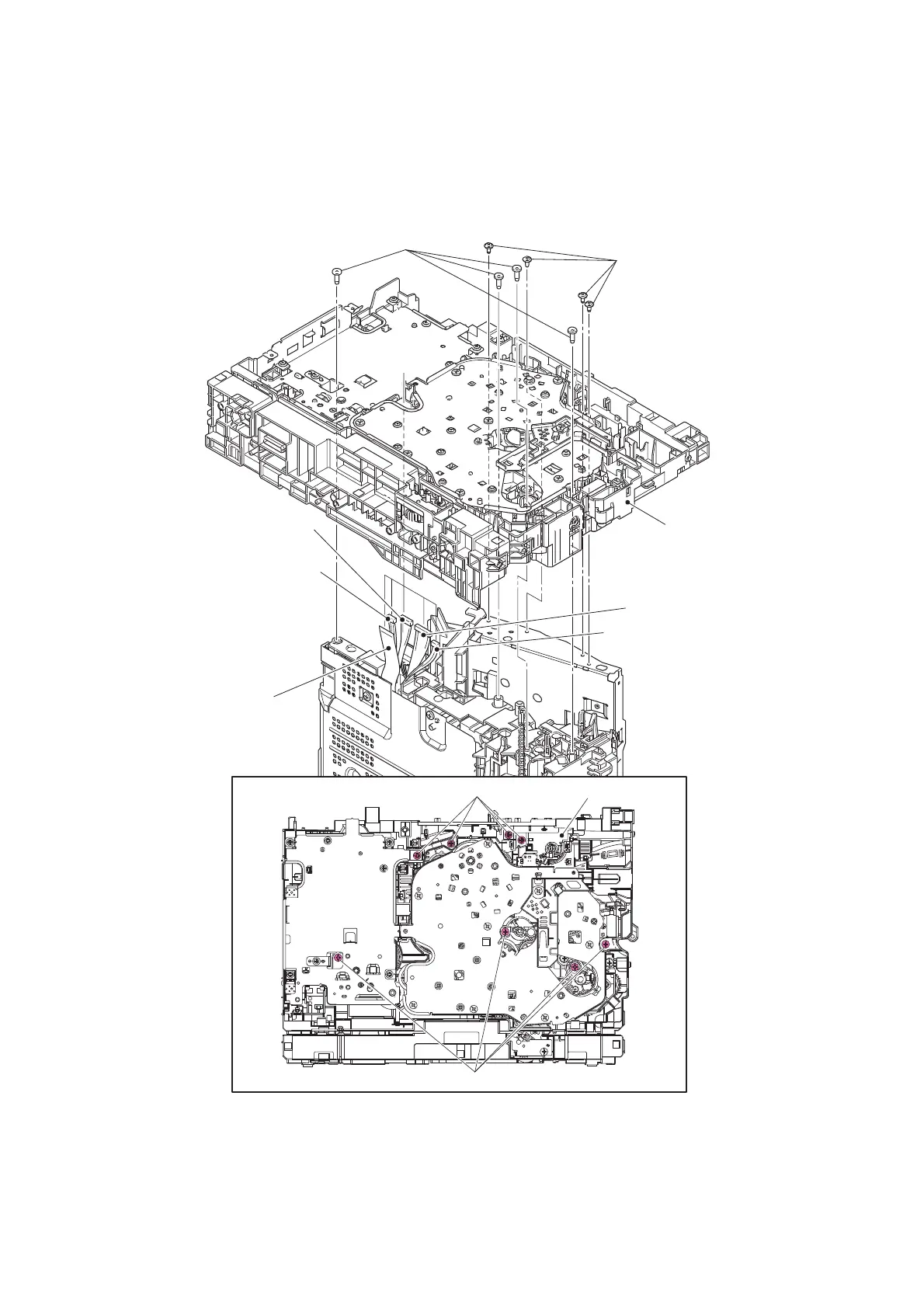

Fig. 3-95

Taptite cup S M3x8 SR

Taptite bind B M4x12

Main frame L ASSY

Low-voltage power

supply harness

Eject sensor harness

HVPS flat cable

Taptite cup S M3x8 SR

Taptite bind B M4x12

Main frame L ASSY

Erase lamp harness*

Paper empty sensor harness*

* Models with 520-sheet T1 only
