App. 3-6
Confidential
(4)
W

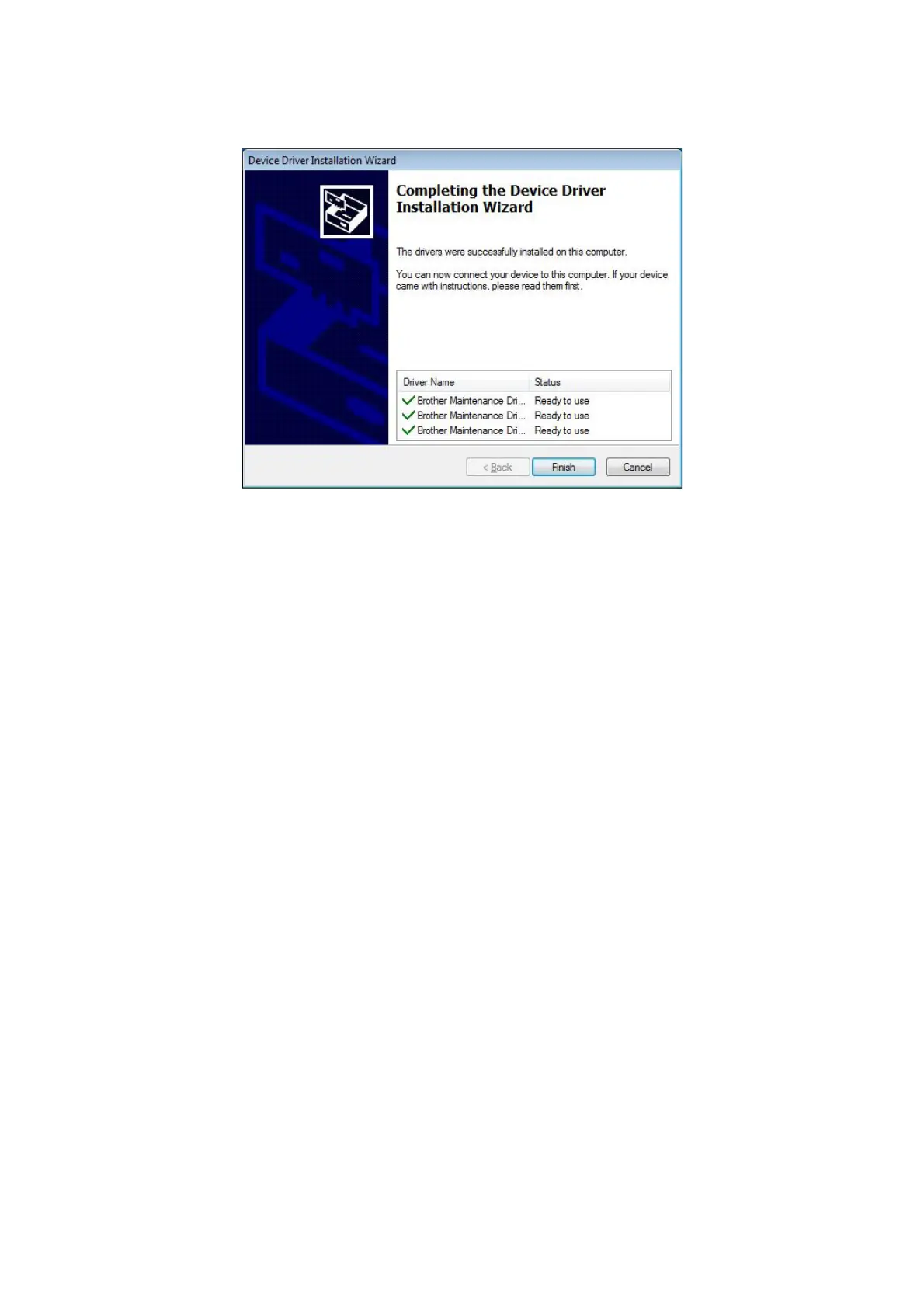

ait for the following screen to appear
and click [Finish].
(5)
Plug the AC cord of th
e machine into an
electrical outlet.
(6)
Enter the maintenan
ce mode.
(Refer to
“1.1 How to Enter Maintenance Mod
e” in Chapter 5
.)
(7)
Connect the machine to your
computer using a USB cable
and the installation will be
performed automatically
.
