3-119
Confidential

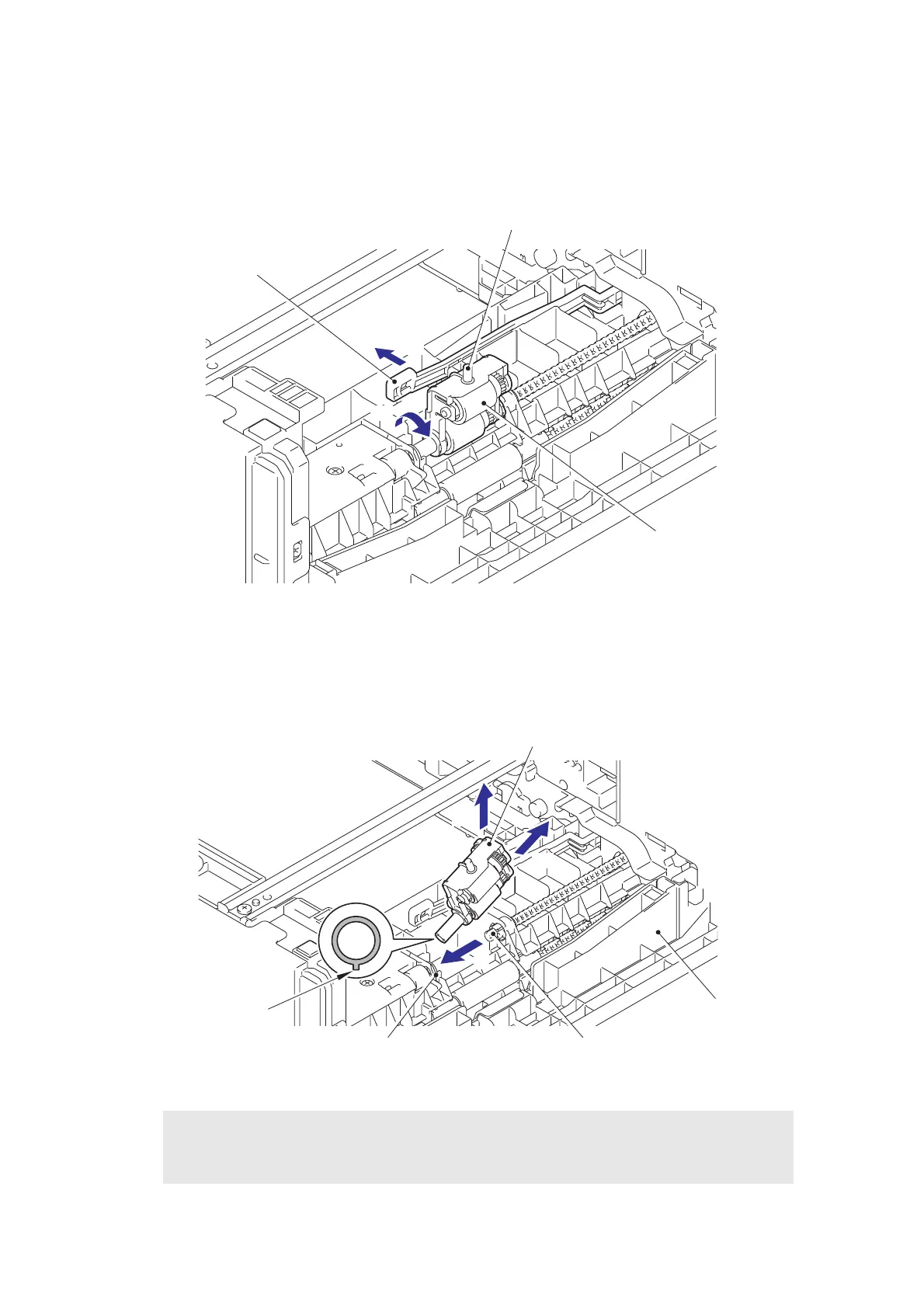

10.2 T2 roller holder ASSY
(1) Push the T2 lift arm in the direction of arrow 1a, and remove the boss on the T2 roller
holder ASSY from the T2 lift arm. Then turn the T2 roller holder ASSY in the direction of
arrow 1b.
Fig. 3-149
(2) Slide the T2 roller holder ASSY in the direction of arrow 2 to remove it from the T2
separation roller shaft.
(3) Lift the right side of the T2 roller holder ASSY in the direction of arrow 3a, and pull the T2
roller holder ASSY in the direction of arrow 3b to remove it from the LT unit.
Fig. 3-150
Assembling Note:
When attaching the T2 roller holder ASSY, engage "A" on the shaft of the T2 roller
holder ASSY with the hole on the T2 feed frame ASSY, and insert the shaft into the hole.
Boss
1a
1b
T2 lift arm
T2 roller holder ASSY
3a
T2 roller holder ASSY
LT unit
T2 separation roller shaft
3b
2
“A”
T2 feed frame ASSY
