3-17
Confidential

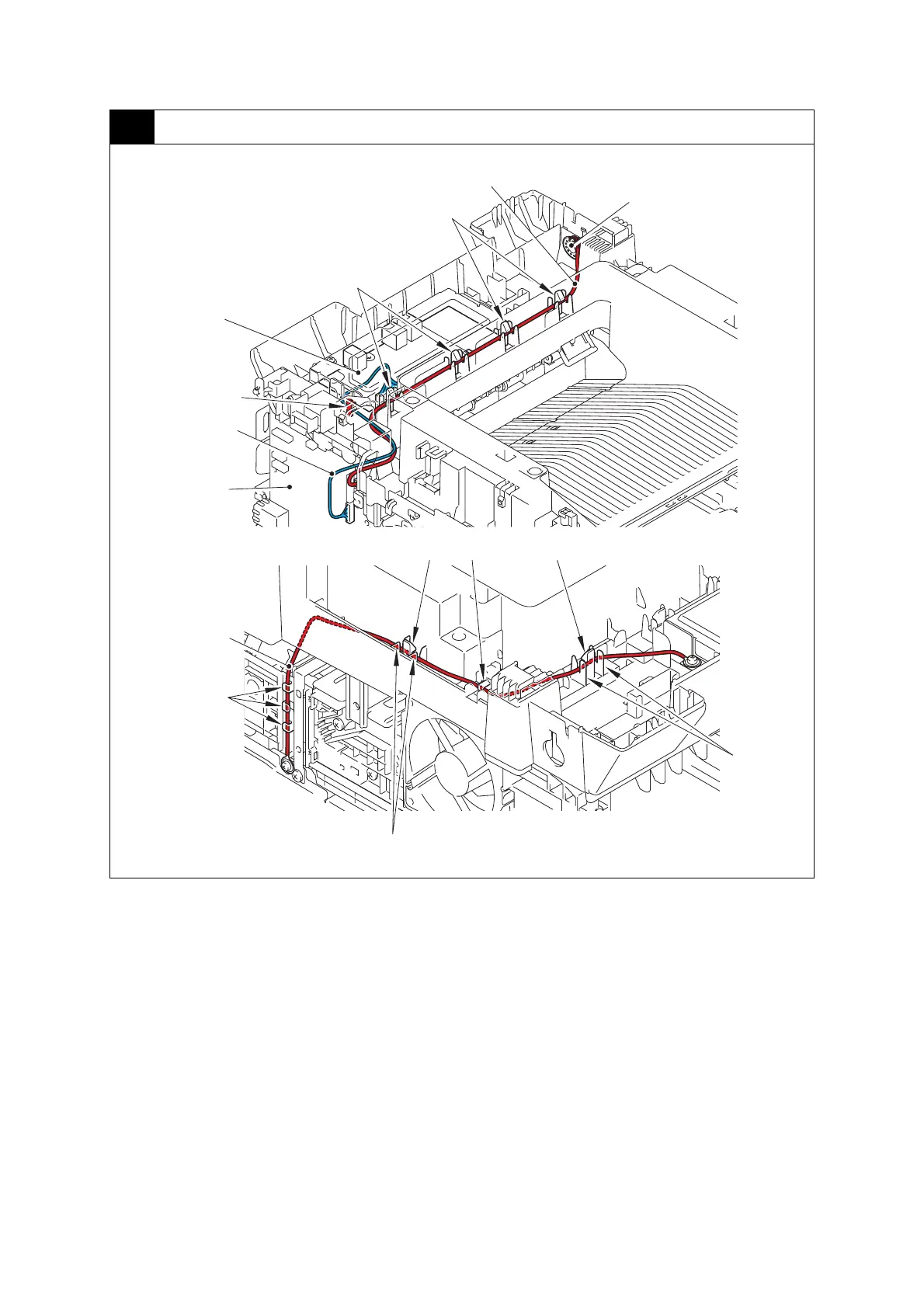

8 NCU PCB ASSY / Speaker unit
Harness colors may be changed for any reason.
Hooks
Speaker unit
Main PCB ASSY
Hooks
NCU PCB ASSY
Speaker harness (RD, BK)
Hook
Hook
Guide
Guide
grooves
Guide grooves
Guides
NCU earth harness
(BR)
NCU harness (WH)
Hook
