General information
9
1
6 Stop/Exit
Stops an operation or exits the menu.
7 LCD (Liquid Crystal Display)
Displays messages on the screen to help you
set up and use your machine.
Also, you can adjust the angle of the LCD
screen by lifting it.
8 One Touch keys
These 8 keys give you instant access to 16
previously stored numbers.
Shift
To access One Touch numbers 9 to 16, hold
down Shift as you press the One Touch key.
9On/Off
You can turn the machine on and off.
Press On/Off to turn the machine on.
Press and hold down On/Off to turn the
machine off. The LCD will show
Shutting Down and will stay on for a few
seconds before going off.
If you have connected an external telephone or
TAD, it is always available.
If you turn the machine off, it will still
periodically clean the print head to maintain
print quality. To prolong print head life, provide
the best ink cartridge economy, and maintain
print quality, you should keep your machine
connected to the power at all times.

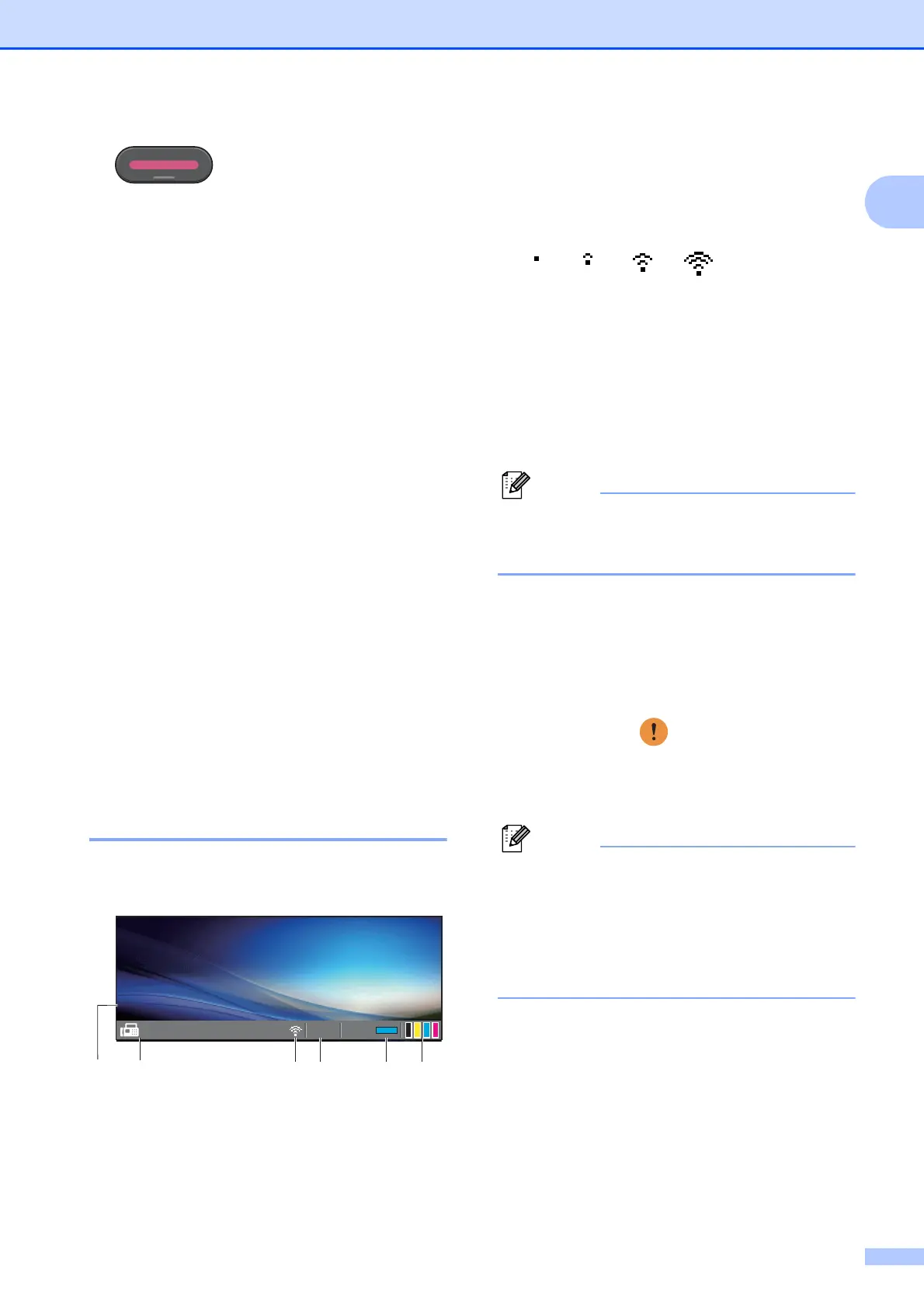

LCD screen 1
The LCD shows the current machine status
when the machine is idle.
1 Fax Preview
You can check the Fax Preview status.
2 Faxes in memory
Shows how many received faxes are in the
memory.
3 Wireless Status
A four level indicator shows the current
wireless signal strength if you are using a
wireless connection.
4 Current Receive Mode
Lets you see the current receive mode.
Fax (Fax Only)
F/T (Fax/Tel)
TAD (External TAD)
Mnl (Manual)
When the Distinctive Ring feature is turned on,
the LCD shows D/R. For details, see
Distinctive Ring on page 44.
5 Memory Status
Lets you see the available memory in the
machine.
6 Ink indicator
Lets you see the available ink volume.
The warning icon appears when there is
an error or maintenance message. For
details, see Error and Maintenance
messages on page 73.
If you receive a fax containing multiple
paper sizes (for example, a Letter size
page and a Ledger size page), the
machine may create and store a file for
each paper size. The LCD may show that
more than one fax job has been received.
1
0:2
1.01.2011
01.01.2011
10:29
Fax Mem.
Fax Preview:OFF
234 5 6
00
1
0Max
To Next Page
