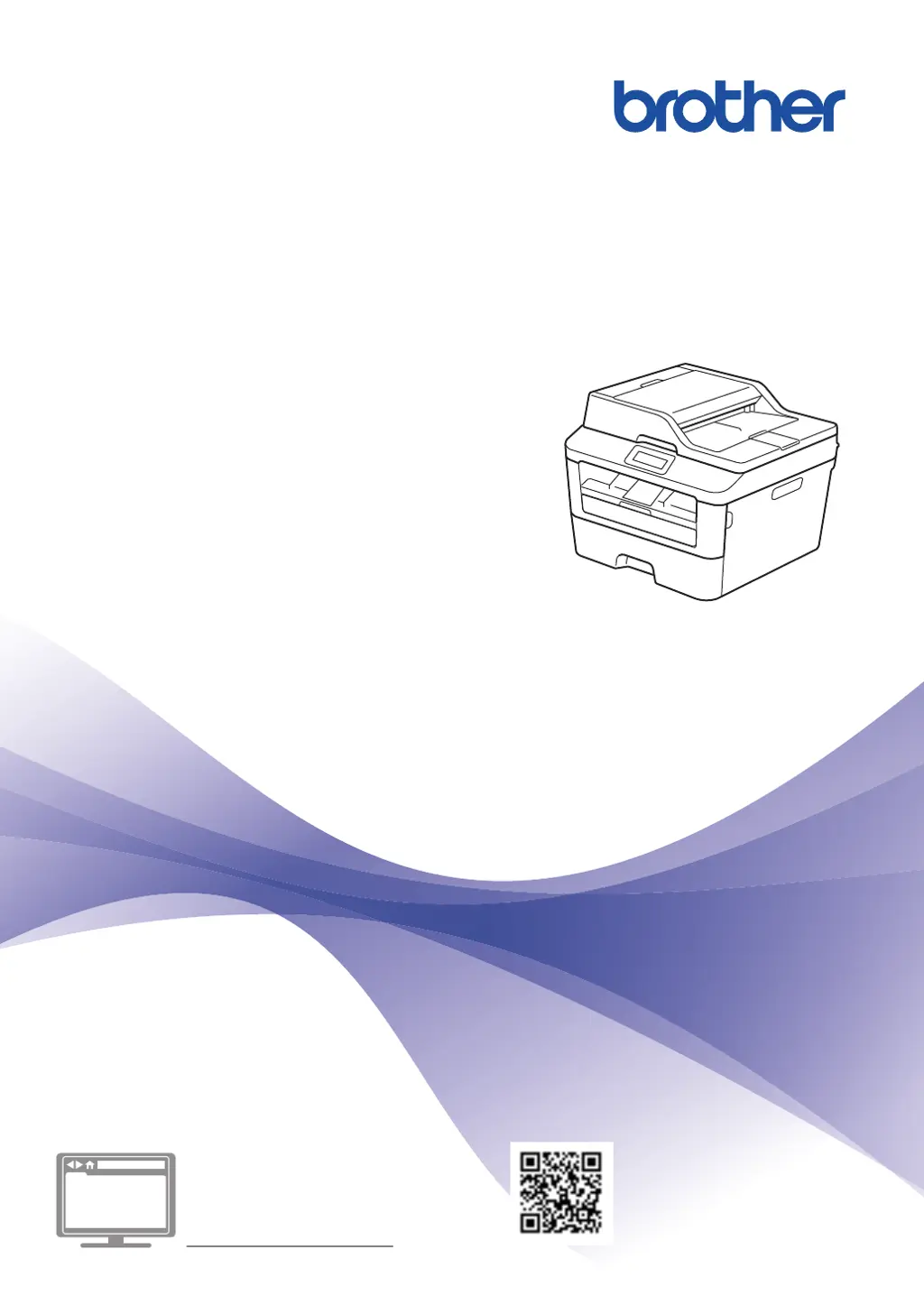

Brother MFC-L2701D - User Manual

Other manuals for Brother MFC-L2701D

Service Manual307 pages

Quick Setup Guide2 pages

Questions and Answers

D
David BergSep 23, 2025
Why I cannot send a fax from my Brother printer?
- D
  Devin CarlsonSep 23, 2025
  Check all line cord connections. Make sure the telephone line cord is plugged into the telephone wall socket and the LINE socket of the machine. If you subscribe to DSL or VoIP services, contact your service provider for connection instructions. Make sure you pressed Fax and the machine is in Fax mode. Print the Transmission Verification Report and check for an error. Contact your administrator to check your Secure Function Lock Settings. Ask the other party to check that the receiving machine has paper.
K
Kristen SmithAug 23, 2025
Why is 2-sided printing disabled on my Brother MFC-L2701D Printer?
- L
  leslie37Aug 23, 2025
  2-sided printing is disabled on your Brother printer because the back cover of the machine is not closed completely. Close the back cover of the machine until it locks in the closed position.
M
Monica RiggsAug 25, 2025
What to do if my Brother MFC-L2701D says 'Jam Inside'?
- B
  Brent HallAug 26, 2025
  If your Brother printer displays 'Jam Inside', open the front cover and remove the toner cartridge and drum unit assembly. Then, pull out the jammed paper. Close the front cover. If the error message remains, press Start.
D
Donald LarsonAug 26, 2025
Why does my Brother MFC-L2701D say 'No Paper'?
- J
  Justin LuceroAug 27, 2025
  The 'No Paper' message on your Brother printer indicates that the machine is out of paper, or the paper is not loaded correctly in the paper tray. Refill the paper in the paper tray, ensuring the paper guides are set to the correct size. Alternatively, remove the paper and load it again, making sure the paper guides are correctly adjusted, and avoid overfilling the paper tray.
A
Alice ManningAug 27, 2025
How to fix 'Jam Tray' error on Brother MFC-L2701D Printer?
- N
  Natalie MooreAug 27, 2025
  If your Brother printer shows a 'Jam Tray' error, pull the paper tray out completely and remove the jammed paper. Then, put the paper tray firmly back into the machine.
J
Jennifer OchoaSep 16, 2025
How to improve fax sending quality on Brother printer?
- G
  Gloria FordSep 16, 2025
  Try changing your resolution to Fine or S.Fine. Make a copy to check your machine’s scanner operation. If the copy quality is not good, clean the scanner.
C
Catherine FosterSep 13, 2025
What does 'Size Error DX' mean on my Brother Printer?
- Y
  Yvonne BarnettSep 13, 2025
  If your Brother printer displays 'Size Error DX', the paper size specified in the printer driver and the machine's menu are not available for automatic 2-sided printing. Press Stop/Exit. Choose a paper size supported by 2-sided printing. Paper size available for automatic 2-sided printing is A4. (For Philippines: Letter, Legal and Folio)
D
David RodriguezSep 14, 2025
Why does my Brother MFC-L2701D say 'Scan Unable'?
- Q
  qcolemanSep 15, 2025
  If your Brother printer displays 'Scan Unable', it means the document is too long for 2-sided scanning. Press Stop/Exit and use an appropriate size paper for 2-sided scanning.
E
Edward NelsonSep 5, 2025
How to resolve 'Jam 2-sided' error on Brother Printer?
- T
  Teresa SchneiderSep 6, 2025
  If your Brother printer displays a 'Jam 2-sided' error, it means the paper is jammed underneath the paper tray or the fuser unit. Pull the paper tray and the 2-sided tray out completely, open the back cover and then remove the jammed paper. Close the back cover, and put the paper tray and the 2-sided tray firmly back in the machine.
M
Michael VillanuevaSep 3, 2025
What does 'Drum !' mean on my Brother Printer and how to fix it?
- M
  Michelle LindseySep 3, 2025
  The 'Drum !' message on your Brother printer indicates that the corona wire on the drum unit must be cleaned or the drum unit or the toner cartridge and drum unit assembly is not installed correctly. Clean the corona wire on the drum unit. Also put the toner cartridge in the drum unit. Then reinstall the toner cartridge and drum unit assembly in the machine.

Summary

Driver Updates

FAQs and Troubleshooting

Notes Definitions

Compilation and Publication Notice

General Information

Control Panel Overview

Details the functions of various buttons and the LCD display on the control panel.

Access Brother Utilities

Explains how to launch the Brother Utilities application for accessing installed software.

Initial Setup

Guides through initial setup procedures like date, time, and volume adjustments.

Paper Handling

Load Paper

Guides on how to load paper into the paper tray.

Set the Check Size

Explains how to set the paper size check function.

Change the Paper Size

Instructions to change the paper size setting.

Change the Paper Type

Instructions to set the paper type for optimal print quality.

Using Special Paper

Advice and warnings on using special types of paper.

Print

Print a Document (Windows)

Steps to print a document from a Windows computer.

Print on Both Sides of the Paper (Windows)

Instructions for printing on both sides of the paper.

Print More Than One Page on a Single Sheet of Paper (N in 1) (Windows)

How to print multiple pages on one sheet.

Printing on Envelopes, Thick Paper, or Labels

Guidelines for printing on special media like envelopes.

Printing on Plain Paper, Thin Paper, Recycled Paper, or Bond Paper using the Manual Feed Slot

How to print on various paper types using the manual feed slot.

Copy

Copy a Document

Steps to copy a document using the ADF or scanner glass.

Copy Settings: Copy Option

Details various copy settings like quality, brightness, contrast.

Copy Multiple Pages on Both Sides of the Paper

Guide to copying multiple pages onto both sides of the paper.

Copy a 2-sided Document Using the Scanner Glass

Steps to copy a 2-sided document using the scanner glass.

Copy Both Sides of an ID Card onto One Page

How to use the 2in1 (ID) Copy feature for identification cards.

Scan

Scan from Your Computer (Windows)

General instructions for scanning documents to a computer.

Save Scanned Documents and Photos to a Folder as a PDF File Using ControlCenter4 Advanced Mode (Windows)

Steps to save scanned files as PDFs using ControlCenter4.

Scan Using the Scan Button on Your Brother Machine

How to scan using the dedicated scan button on the machine.

Fax

Before Faxing: Set Your Station ID

Instructions to set the Station ID for fax transmissions.

Set Telephone Line Compatibility for Interference and VoIP Systems

How to adjust settings for line compatibility and VoIP.

Receive Modes

Explains different modes for receiving faxes (Fax Only, Fax/Tel).

Choose the Correct Receive Mode

Guides on selecting the appropriate receive mode based on line setup.

Set the F;T Ring Time (Fast Double-ring)

How to set the F/T ring time for distinguishing fax and voice calls.

Set the Number of Rings Before the Machine Answers (Ring Delay)

How to configure the number of rings before the machine answers.

Store One Touch Dial Numbers

Instructions for storing frequently used numbers.

Store Speed Dial Numbers

Instructions for storing numbers using speed dial codes.

Change or Delete One Touch Dial Numbers

How to modify or remove stored One Touch dial numbers.

Change or Delete Speed Dial Numbers

How to modify or remove stored Speed Dial numbers.

Telephone Services and External Devices

Information on using services like Voice Mail, VoIP, and TAD.

Send a Fax

Step-by-step guide on how to send a fax.

Fax Using Your Computer (PC-FAX)

How to send and receive faxes using a computer.

Troubleshooting

Identify the Problem

Initial checks and steps to identify machine problems.

Error and Maintenance Messages

Explains common error messages and their solutions.

Document and Paper Jams

Guides on how to find and clear document and paper jams.

Fax and Telephone Problems

Troubleshooting steps for fax and telephone connectivity issues.

Troubleshooting for Other Fax Problems

Solutions for various fax sending and receiving difficulties.

Print or Scan Problems

Steps to resolve issues with printing or scanning.

Appendix

How to Enter Text on Your Brother Machine

Instructions for entering text using the machine's controls.

Supplies

Information on replacing consumables like toner and drum units.

Index

Brother MFC-L2701D Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Speed (Black)	30 ppm
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Scanner Type	Flatbed, ADF
Scanner Resolution	1200 x 1200 dpi
Copy Speed (Black)	30 cpm
Automatic Document Feeder (ADF)	Yes
ADF Capacity	35 sheets
Paper Capacity	250 sheets
Memory	32 MB
Type	Laser
Connectivity	USB 2.0, Ethernet
Display	LCD
Max Paper Size	A4
Weight	20.9 lbs
