Brother MFC-L2701D Service Manual

3-41
Confidential
9.12.4 ADF Cover ASSY, Gear Cover
(1) Open the ADF cover ASSY. Release the bosses to remove the ADF cover ASSY from
the ADF unit.
(2) Release the hook to remove the gear cover from the ADF unit.

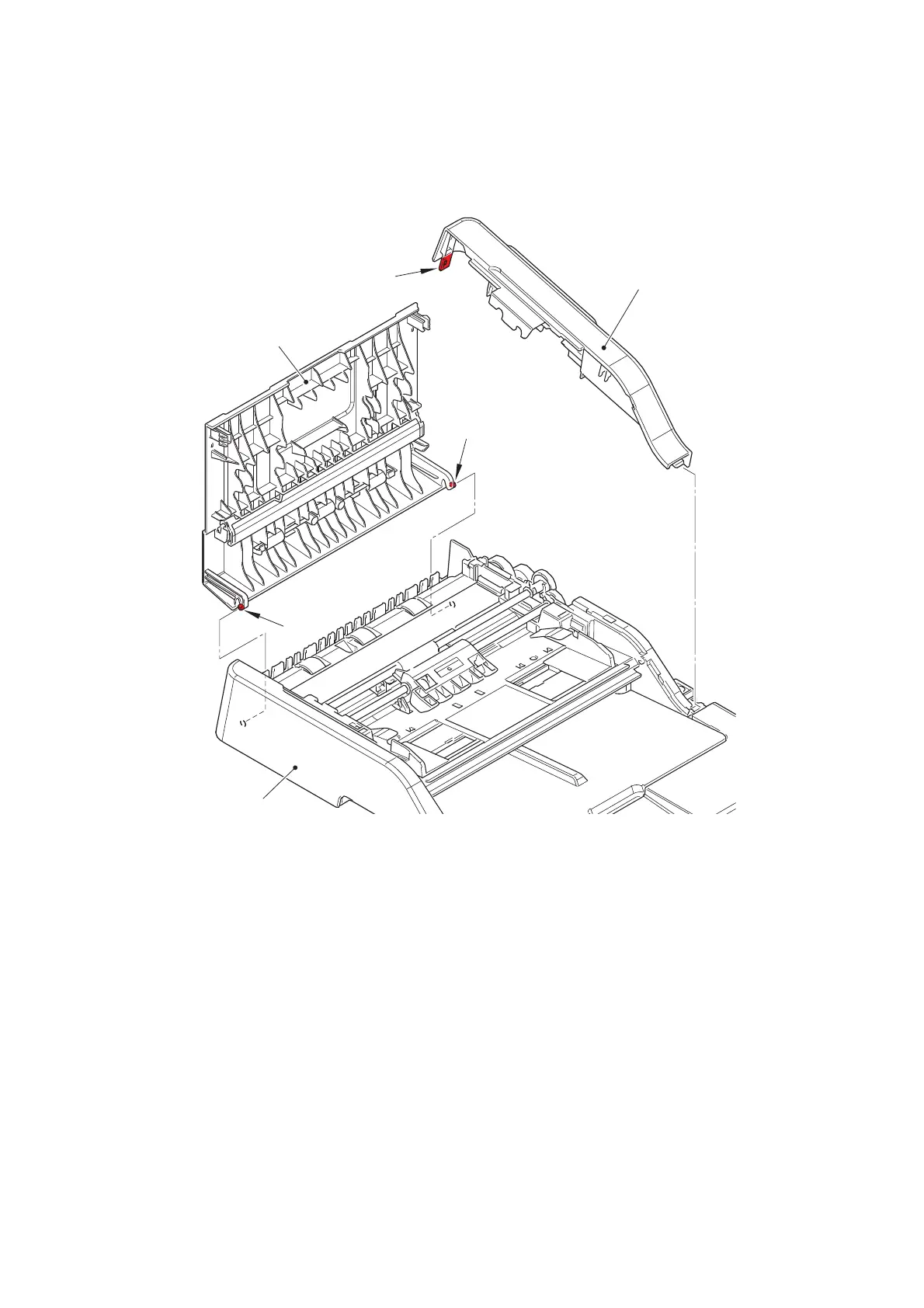

Fig. 3-30
Boss
Hook
ADF cover ASSY
Boss
Gear cover
ADF unit

Brother MFC-L2701D Specifications

General

Functions	Print, Copy, Scan, Fax
Print Technology	Laser
Print Speed (Black)	30 ppm
Print Resolution	Up to 2400 x 600 dpi
Automatic Duplex Printing	Yes
Scanner Type	Flatbed, ADF
Scanner Resolution	1200 x 1200 dpi
Copy Speed (Black)	30 cpm
Automatic Document Feeder (ADF)	Yes
ADF Capacity	35 sheets
Paper Capacity	250 sheets
Memory	32 MB
Type	Laser
Connectivity	USB 2.0, Ethernet
Display	LCD
Max Paper Size	A4
Weight	20.9 lbs
