3 - 34
Main parts
Main unit

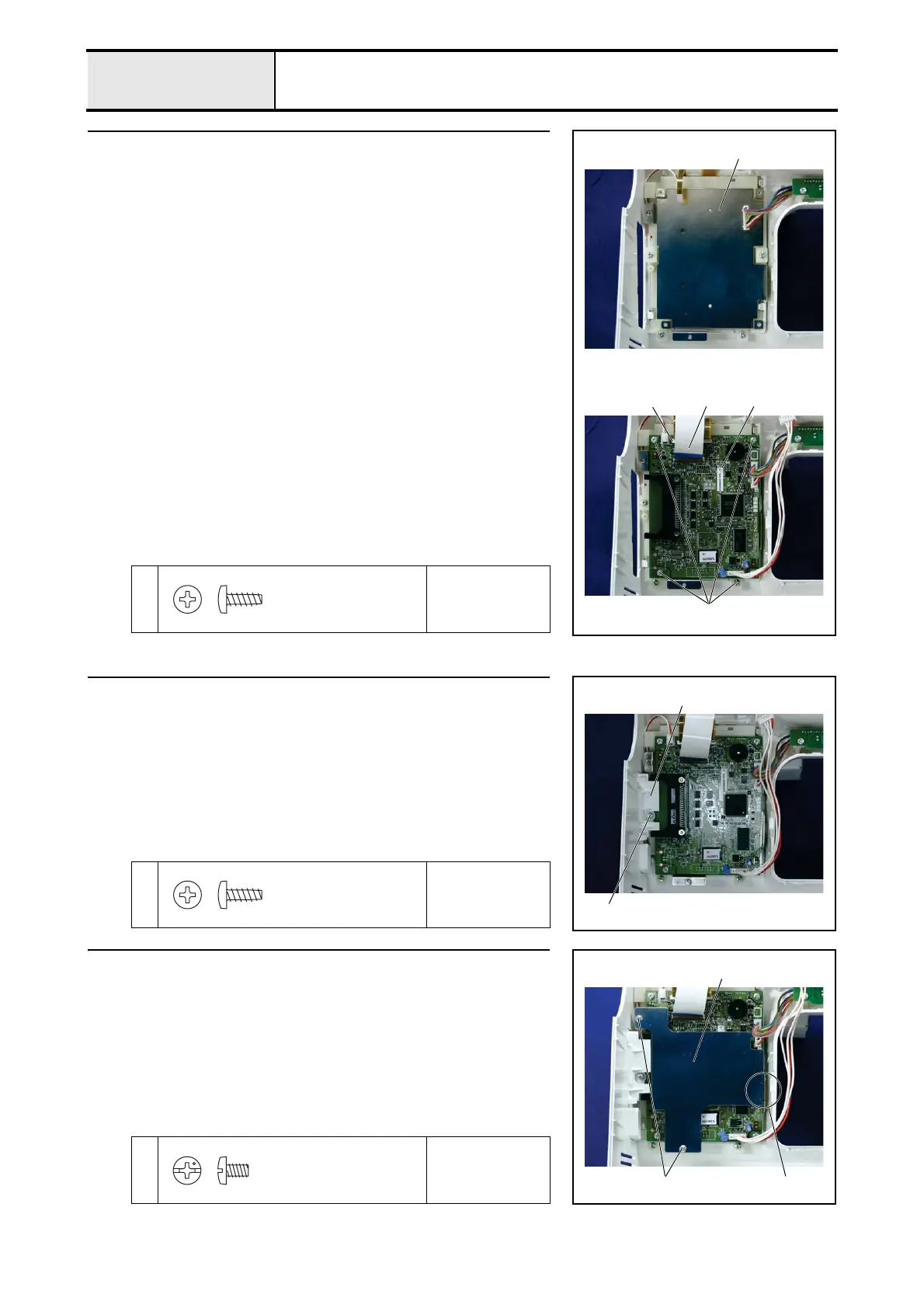

10 Main PCB assembly attachment
1. Position the PCB plate B 1 and then the main PCB assembly 2, and then
attach these to the front cover with the 4 screws 1.
2. Connect the lead wirefs connectors and FFC cords (3 each) to the main
PCB assembly 2.
*Key point
• Pull up the lock of the connector on the main PCB to release it,
insert the FFC cord 3, and then push down the lock to secure
the cord.
• Move the lock of the connector on the main PCB to the upright
position to release it, insert the FFC cord 4 with the blue
surface facing down, and then press the lock down to secure
the cord.
• After connection, check that the three FFC cords are
connected to the connectors on the main PCB correctly.
1
Torque
0.39 — 0.79 N·m
2
1
43
1
Taptite, Bind B
M3X8
11 Card cover attachment
1. Attach the card cover 1 to the front cover with the screw 1.
*Key point
• Check that the hook on the card cover 1 is attached to the
backside of the front cover.
1
Torque
0.39 — 0.79 N·m
1
1
Taptite, Bind B
M3X8
12 Board plate A attachment
1. Attach the board plate A 1 to the front cover with the 2 screws 1.
*Key point
• Engage the 2 tabs on the right side of board plate A 1 with
the 2 slots on the right side of board plate B 2.
1
Torque
0.39 — 0.79 N·m
1
1 2
Screw, Bind
M3X5

Brother PE770 Specifications

General

AC input voltage	110 V
Power supply type	Electric
Display	LCD
Interface	USB
Control type	Sensor
Sewing speed	650
Product color	Violet, White
Buttonhole type	-
Number of fonts	6
Wire cutter included	Yes
Sewing machine functions	Embroidery
Automatic needle threader	No
Number of illumination LEDs	2
Number of embroidery designs	136

Weight and Dimensions

Depth	438.9 mm
Width	540 mm
Height	425.9 mm
