Brother PE770 User Manual

2 - 21

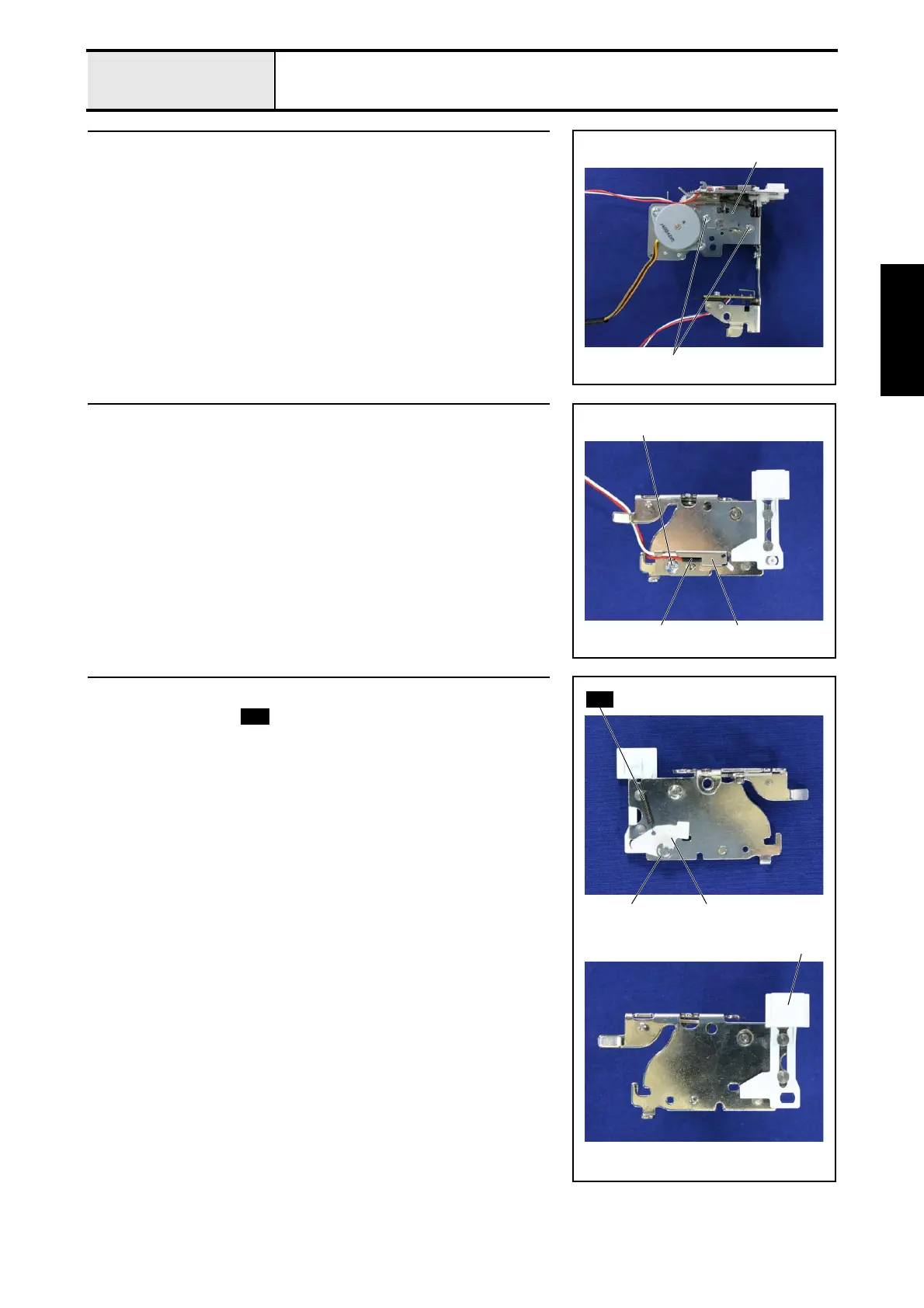

Thread tension mechanism
Main unit
Disassembly
7 Thread release holder assy. F removal
1. Remove the 2 screws 1, and remove the thread release holder assy. 1.
1
1
8 PF-F SW assy. removal
1. Remove the screw 1, and remove the PF-F SW assy 1 and the presser
switch holder 2.
12
1
9 Thread guide shutter removal
1. Remove the spring .
2. Remove retaining ring E3, and remove the thread guide shutter 1 and the
thread guide shutter link 2.
2Retaining ring E3
S19
1
S19
