Brother PE770 User Manual

3 - 78
Embroidery parts
Embroidery

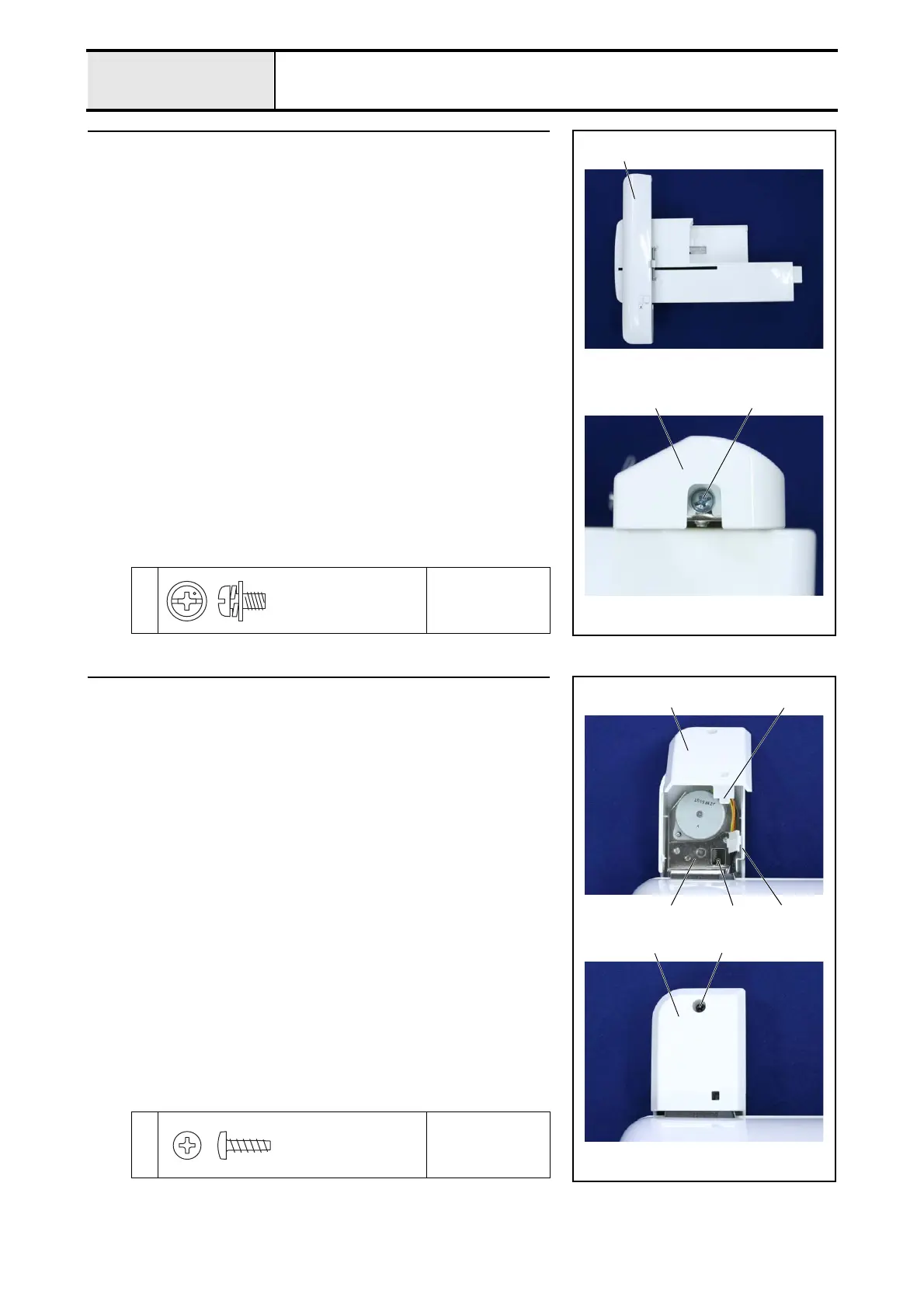

29 X carriage cover attachment
1. Position the X carriage cover 1 so that it covers the X carriage assembly,
and then temporarily tighten the screw 1.
*Key point
• Fully tighten the screw after the YPM cover has been
attached.
1
Torque
0.79 — 1.18 N·m
1
1 1
Screw, Pan (S/P washer)
M4X8
30 YPM cover attachment
1. Align the tab 2 on the X carriage assembly 1 with the slot 4 on the
YPM cover 3.
2. Secure the YPM cover 3 via the X carriage cover 5 to the X carriage
assembly with the screw 1.
1
Torque
0.59 — 0.79 N·m
3
3 1
2
4
5
1
Taptite, Bind P
M3X10
