3 - 53
Feed module
Modules
Assembly

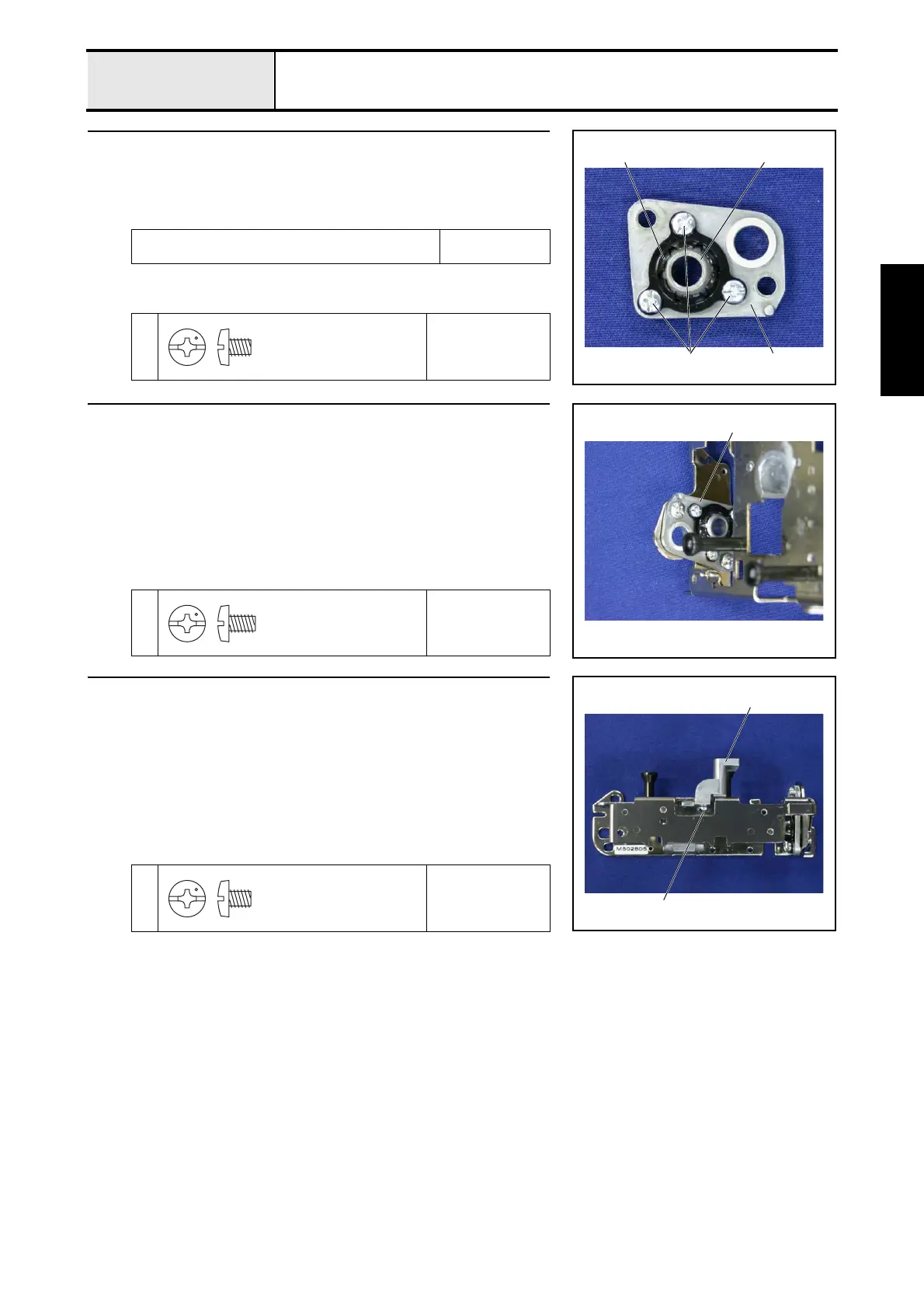

1 Bushing supporter assy. assembly
1. Attach the lower shaft bushing 1 and the bushing presser B 2 to the
bushing supporter assy 3 using the 3 screws 1.
2. Lubricate the lower shaft bushing 1 with 1 – 2 drops of FBK OIL RO 100.
Lubricate the lower shaft bushing round surface with
FBK OIL RO 100.
1 — 2 drops
XC8388***
1
Torque
0.78 — 1.18 N·m
2
1
1
3
Screw, Bind
M4X5
2 Bushing support assy. attachment
1. Attach the bushing supporter assy. 1 to the feed base using the screws 1
(two).
1
Torque
1.18 — 1.57 N·m
1
Screw, Bind
M4X6
3 Stopper plate block assy. attachment
1. Attach the stopper plate block assy. 1 using the screw 1.
1
Torque
1.18 — 1.57 N·m
1
1
Screw, Bind
M4X5

Brother PE770 Specifications

General

AC input voltage	110 V
Power supply type	Electric
Display	LCD
Interface	USB
Control type	Sensor
Sewing speed	650
Product color	Violet, White
Buttonhole type	-
Number of fonts	6
Wire cutter included	Yes
Sewing machine functions	Embroidery
Automatic needle threader	No
Number of illumination LEDs	2
Number of embroidery designs	136

Weight and Dimensions

Depth	438.9 mm
Width	540 mm
Height	425.9 mm
