T-8420C, 8450C, 8720C, 8750C
4. INSTALLATION
5

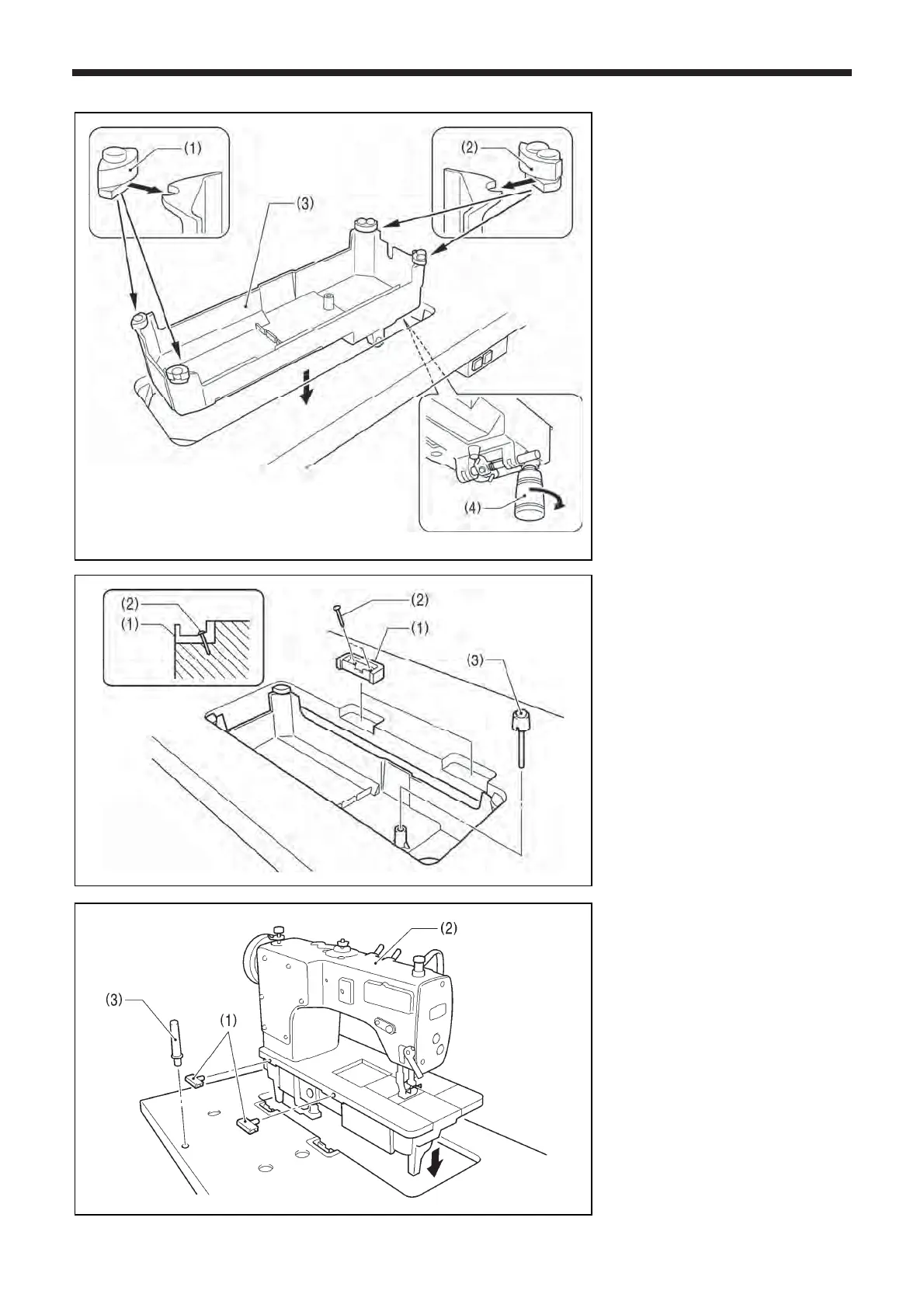

4-1. Installation
1. Oil pan
(1) Head cushions (left) [2 pcs]
(2) Head cushions (right) [2 pcs]
(3) Oil pan
(4) Oiler
2. Rubber cushions
(1) Rubber cushions [2 pcs]
(2) Nails [4 pcs]
3. Knee lifter complying bar
(3) Knee lifter complying bar
4. Machine head
(1) Hinges [2 pcs]
(2) Machine head
(3) Head rest
NOTE:
Tap the head rest (3) securely into
the table hole. If the head rest (3) is
not pushed in as far as it will go, the
machine head will not be sufficiently
stable when it is tilted back.
2874M
2481B
2875M
To Next Page
