Home > Set Up Your Printer > Check the Sensor Position

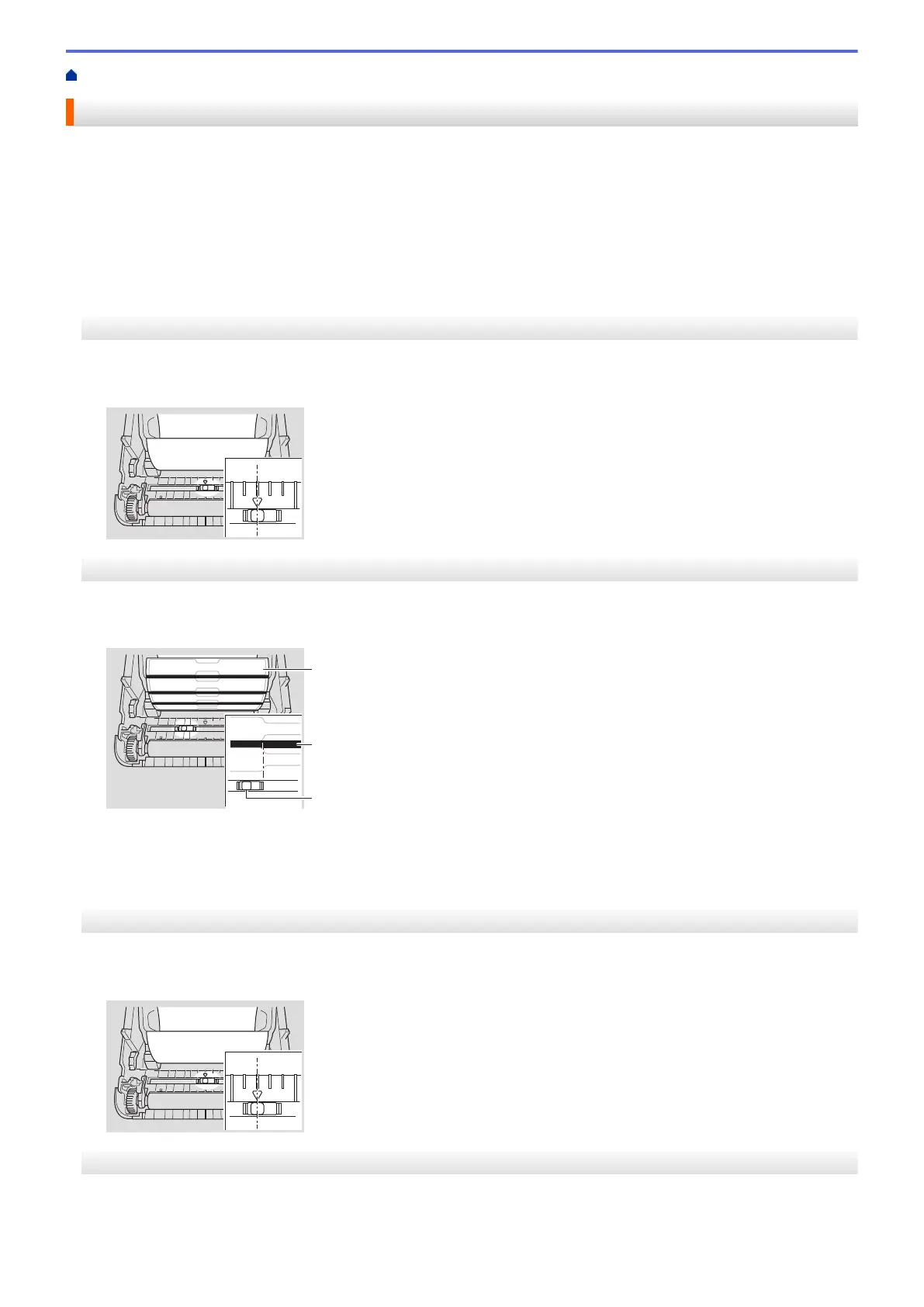

Check the Sensor Position
When using RD or other types of rolls, you must check the sensor position based on the type of paper you are
using. You can use other types of rolls in addition to the RD Rolls.
>> Die-cut Labels With No Black Mark
>> Die-cut Labels With Black Mark
>> Receipt Paper With No Black Mark
>> Media With a Black Mark
>> Media With Holes
>> Wristband
Die-cut Labels With No Black Mark
The transmissive/gap sensor detects the beginning of the label and feeds the label to the correct position.
• Align the slider with b on the printer.
Die-cut Labels With Black Mark
The reflective/black mark sensor detects the mark and feeds the media to the correct position.
• Align the slider as shown in the illustration.
2
3
1
1. Back of media
2. Black mark
3. Reflective/black mark sensor
Receipt Paper With No Black Mark
The reflective/black mark sensor detects if paper roll is finished.
• Align the slider with b on the printer.
Media With a Black Mark
The reflective/black mark sensor detects the mark and feeds the media to the correct position.
• Align the slider with the center of the black mark on the paper.
13
