CHAPTER 4
Characteristics
13

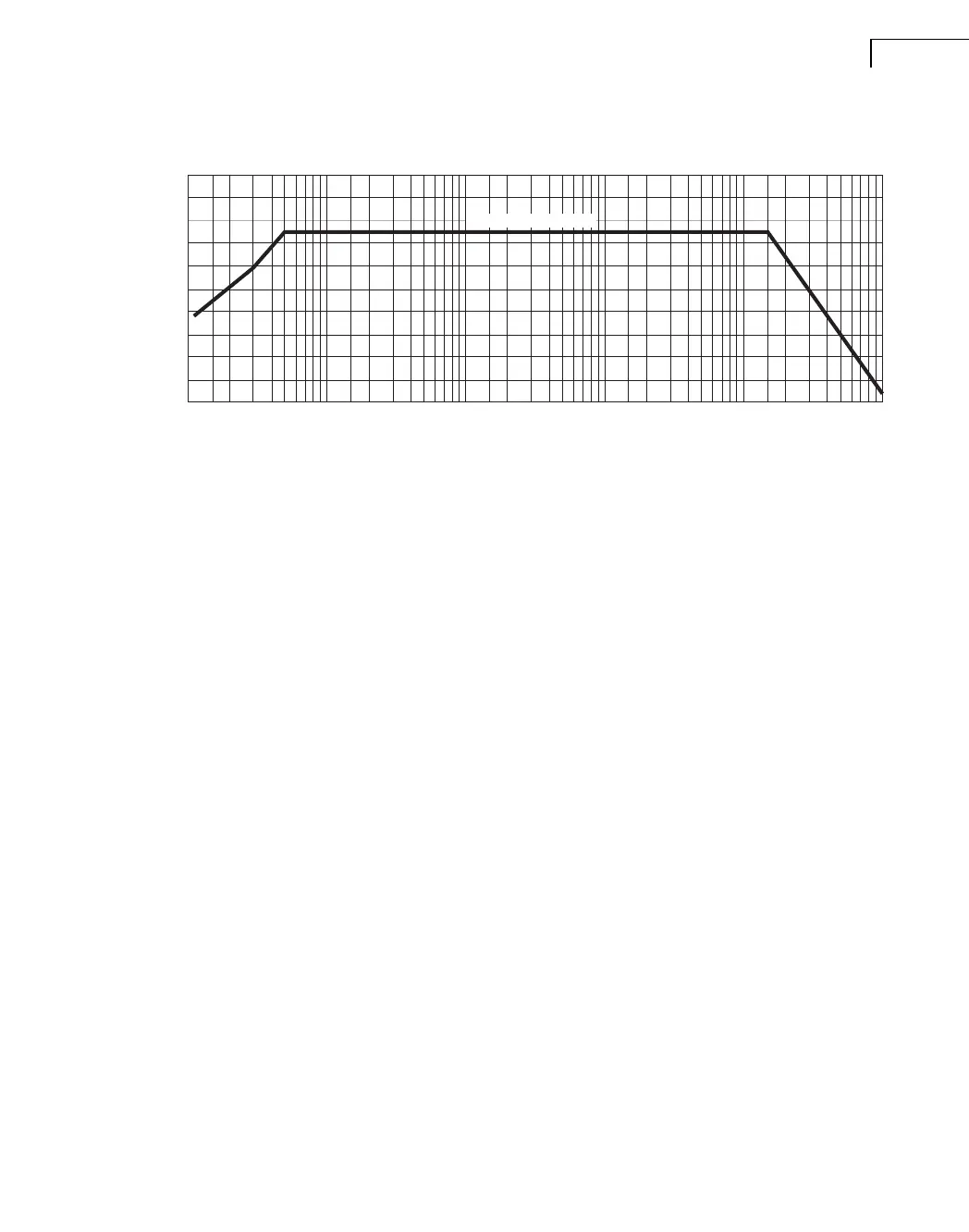

Fig.4.2 Maximum output current rating of Type 2719 as a function of frequency
As shown in Fig.4.2, the maximum output current is frequency-dependent. The
maximum power output is 180 VA, which is obtained using exciters with a nominal
load impedance of 0.8 Ω. For other exciter load impedances, the maximum output
rating is as shown in Fig.4.3. This is valid at frequencies, from 5 Hz to 15 kHz. At
other frequencies, the amplifier’s output rating must be derated in accordance with
Fig.4.2.
Maximum Current (A)
Maximum Current (A)
Frequency (Hz)
010102
20
18
16
14
12
10
8
6
4
2
0
1
2 5 10 20
50 100 200 500 1k 2k
5k 10k
20k
50k
100k
