Brune HP50 - Exploded View; Subassemblies

25 [EN]

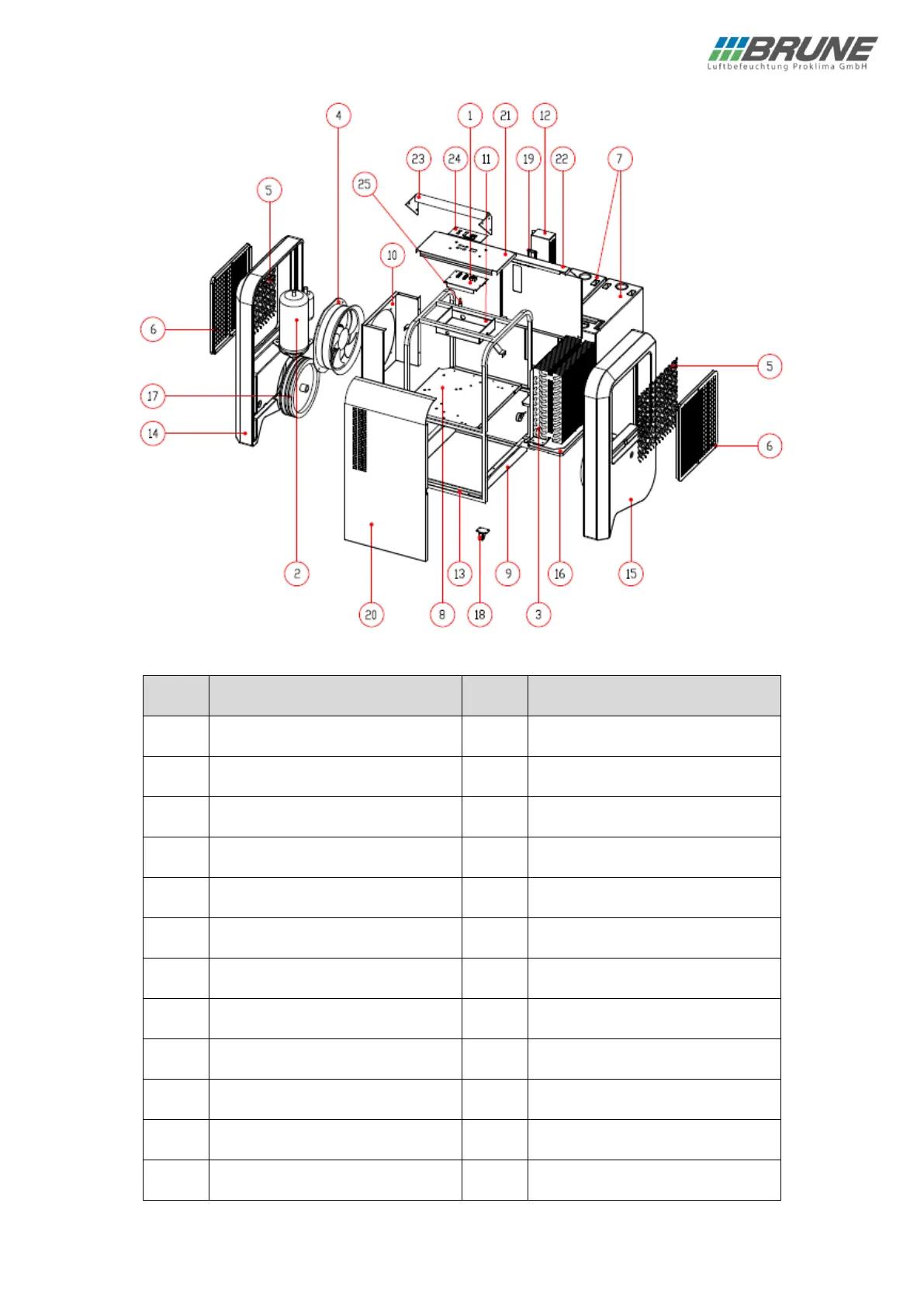

16. EXPLODED VIEW
17. SUBASSEMBLIES
Pos.
Description
Pos.
Description
1
Circuit board
13
Structural frame
2
Compressor
14
Plastic cover right
3
Evaporator
15
Plastic cover right
4
Blower
16
Water collection tub
5
Air filter
17
Wheel
6
Filter bracket
18
Swivel caster
7
Water tank
19
Plug holder
8
Mounting plate
20
Stainless steel front cover
9
Support for water tanks
21
Stainless steel top cover
10
Support for blower
22
Stainless steel rear cover
11
Support for circuit board
23
Stainless steel handle
12
Cable housing
24
Operating panel
