Brunswick Black Wolf - Gully Assembly

PAGE 12 BRUNSWICK INSTALLATION MANUAL
BLACK WOLF
GULLY ASSEMBLY
(IF REQUIRED)

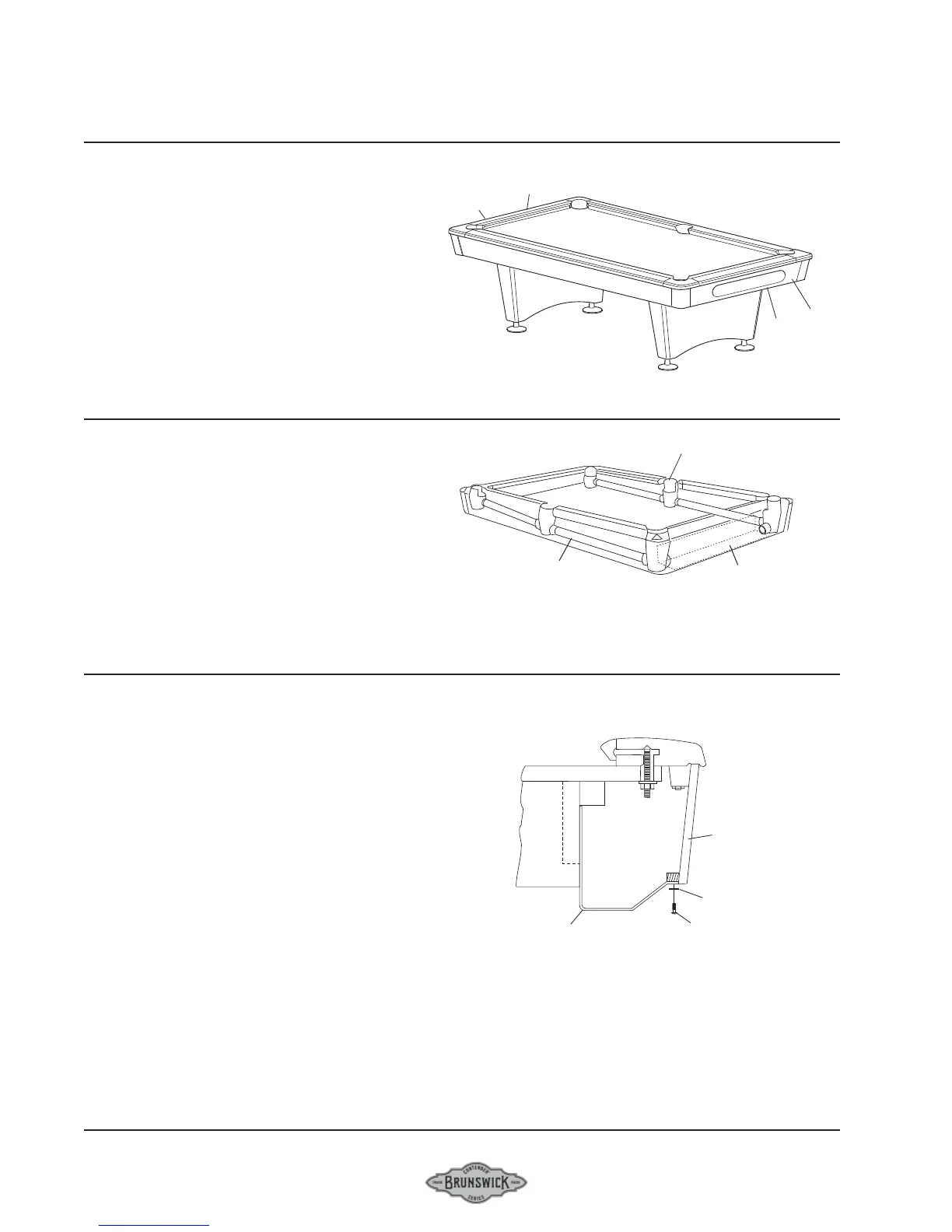

FIGURE ONE
Step #1: Gully apron to be located at the foot end of the
table as shown.
FIGURE ONE
FIGURE TWO
Step #2: Attach gully pockets and gully tubes as shown.
FIGURE TWO
FIGURE THREE
Step #3: Attach the bottom flange of the gully to the
gully as shown.
FIGURE THREE
GULLY APRON
GULLY
#8 WASHER (7/16 O.D.)
#8 x ½”
HEAD SCREW
PAN
GULLY
APRON
FOOT
END
HEAD END
NAME PLATE
GULLY POCKETS
GULLY
GULLY TUBE
