BRUNSWICK INSTALLATION MANUAL PAGE 3
BLACK WOLF

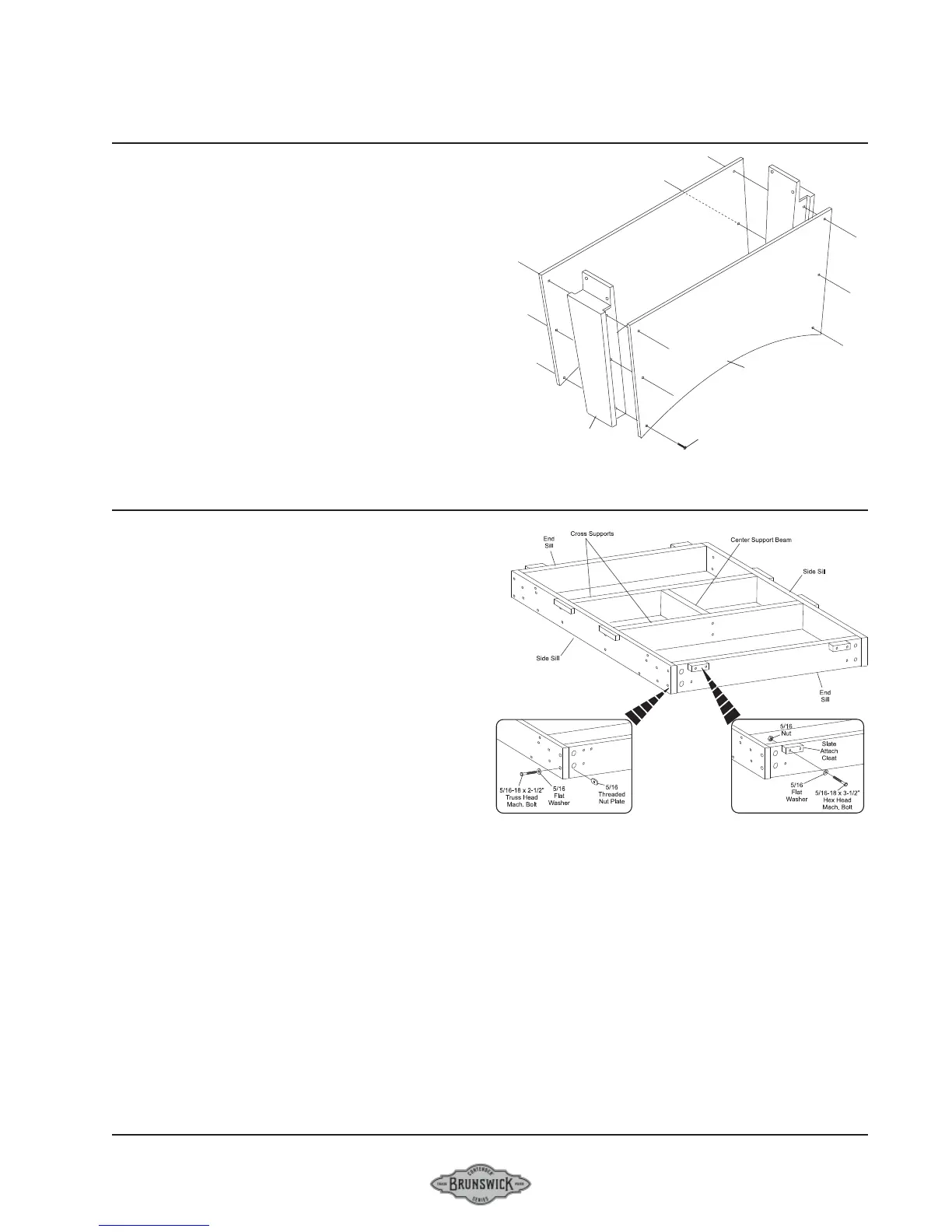

BASE FRAME AND LEG ASSEMBLY
FIGURE ONE
Step #1: Securely attach leg panels to leg posts using
#8 x 1-1/2” truss head screws.
Step #2: Repeat Step #1 to create second leg assembly.
FIGURE ONE
FIGURE TWO
Step #3: Loosely attach the two side sills to the two end
sills and two cross supports with 5/16-18 x 2-1/2’ truss
head machine screws, 5/16 flat washers and 5/16-18
threaded nut plate. Attach a center support beam
between the middle two cross supports using the same
hardware.
Step #4: Securely attach the two slate attach cleats to
each end sill with 5/16-18 x 3-1/2” hex head bolts , 5/16
flatwashers, 5/16-18 hex nuts
FIGURE TWO
#8 x 1-1/2”
TRUSS HEAD
SELF TAPPING SCREW
LEG
PANEL
LEG
POST
