2. Assembly

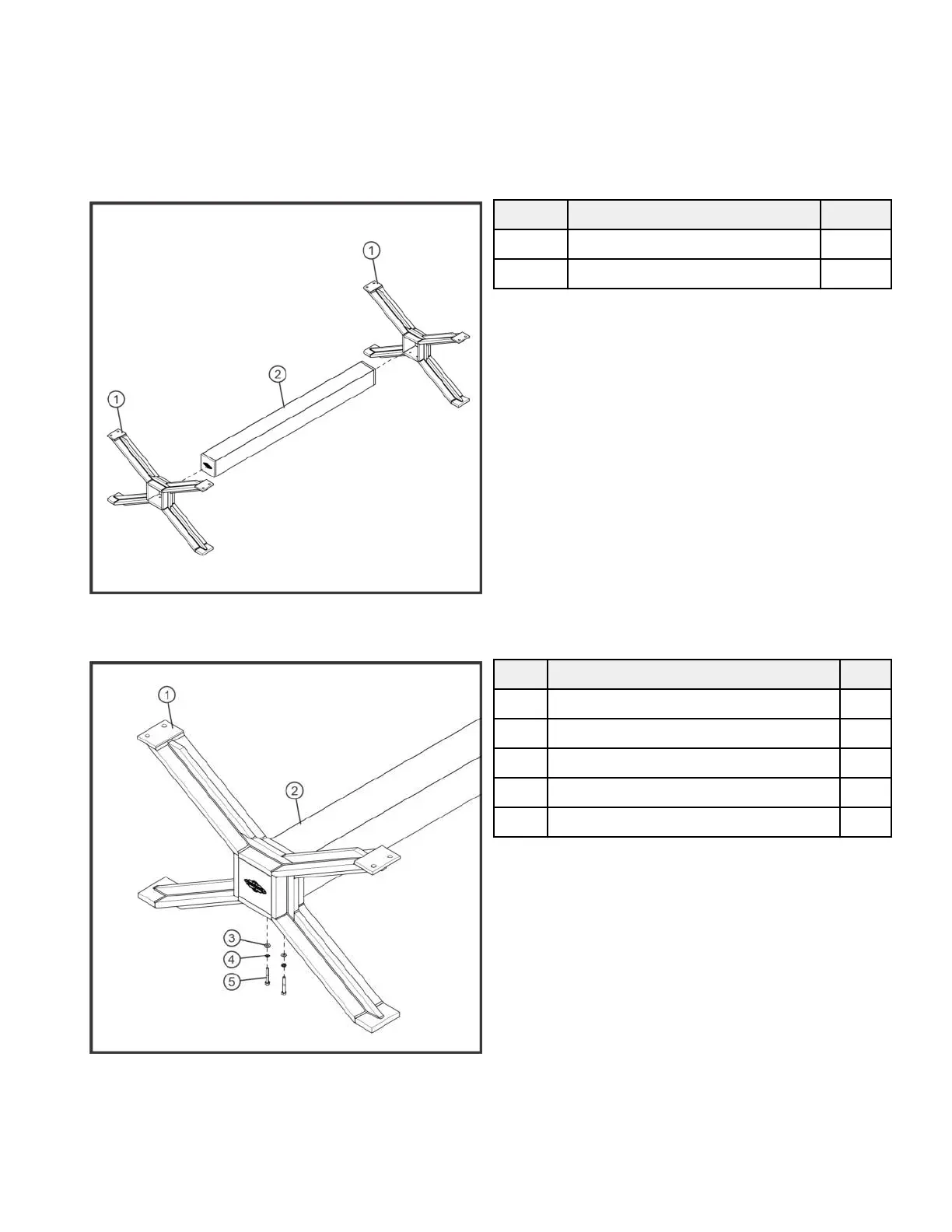

Pedestal and Stretcher Assembly
Assemble pedestals onto stretcher:
1. Place two pedestals, with stretcher attachment holes facing toward the center, with distance between to be more
than overall length of the stretcher. Insert one end of the stretcher into the center square pedestal opening and
align with attach holes. Move second pedestal to insert stretcher and align with attach holes..
Item Description Qty.
1 Pedestal Assembly 2
2 Stretcher Assembly 1
NOTE: This step requires two people.
2. With attach holes aligned on both ends, fasten the stretcher to each pedestal through the attach holes in the
bottom of each center square.
Item Description Qty.
1 Pedestal Assembly 2
2 Stretcher Assembly 1
3 3/8 Flat Washer 4
4 3/8 External Tooth Lock Washer 4
5 3/8-16UNC x 2 1/4 Hex Bolt 4
NOTE: Tighten to 35-40 ft lbs (47.5-54.2 Nm)
