Base Frame Assembly

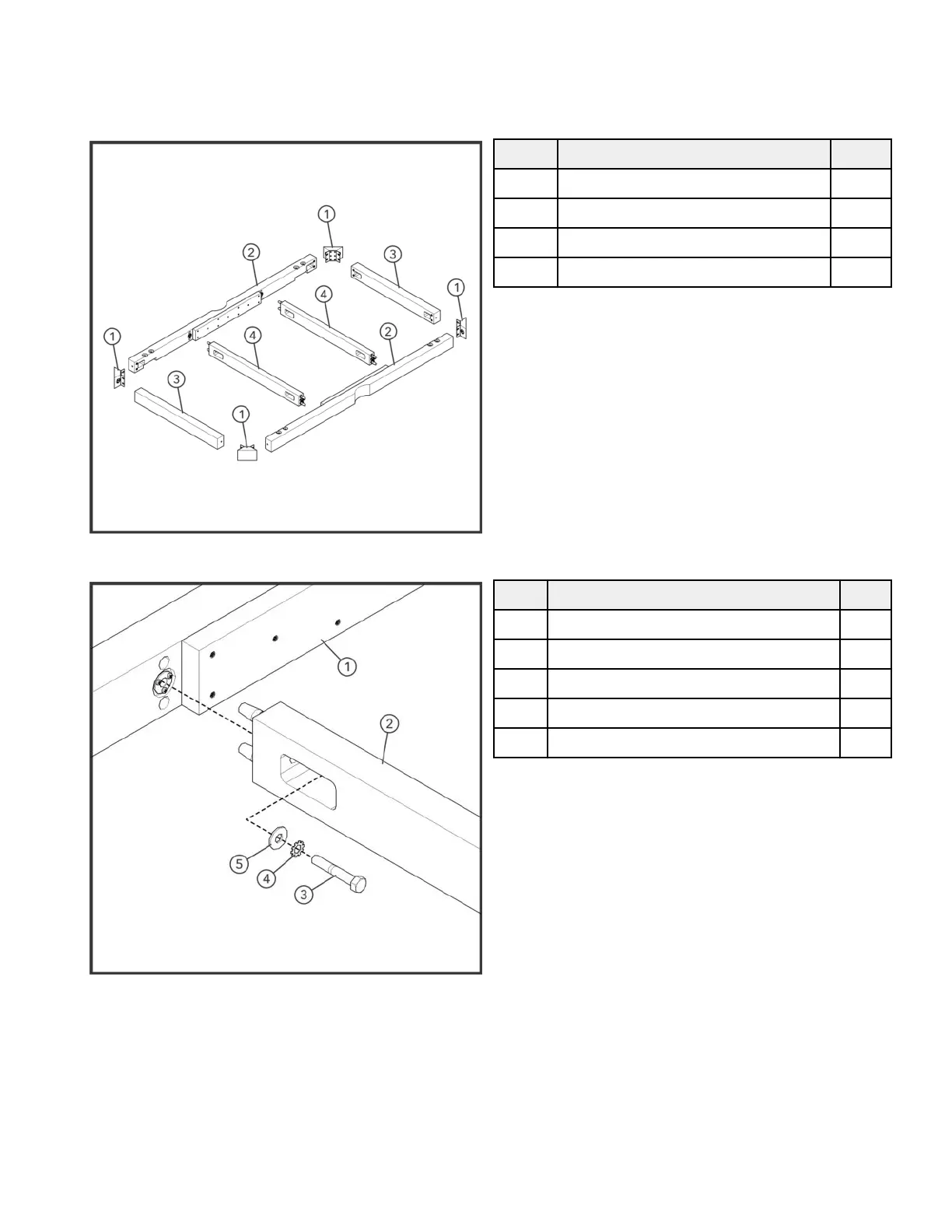

Assemble base frame:
1. Layout two side sill beams, two center cross supports, two end sill beams and four sill corner assemblies right side
up.
Item Description Qty.
1 Corner Sill Assembly 4
2 Side Sill Assembly 2
3 End Sill Assembly 2
4 Cross Support Assembly 2
NOTE: Use sufficient protection between components
and floor to prevent damage.
2. Attach each center cross support end to the side sill beams.
Item Description Qty.
1 Side Sill Assembly 2
2 Cross Support Assembly 2
3 1/2-13UNC x 3 Hex Bolt 4
4 1/2 External Tooth Lock Washer 4
5 1/2 Flat Washer 4
NOTE: Do not fully tighten hardware at this time.
