48
Main parks check
1 Temperature sensor checking
Disconnect the temperature sensor from PCB, measure the resistance value with a tester.

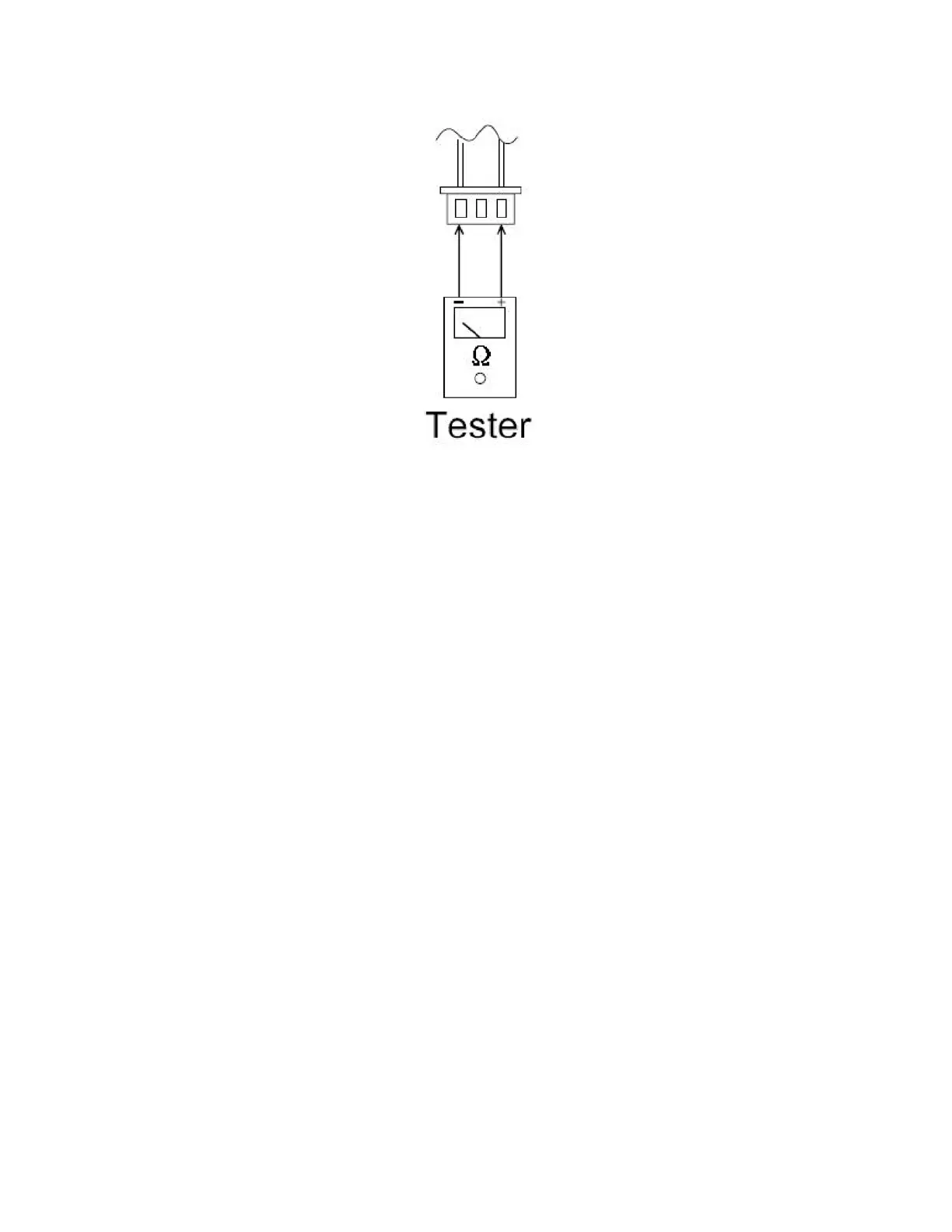

Fig. 48 – Tester
Temperature sensors.
S Room temp.
S (T1) sensor, Indoor coil temp.
S (T2) sensor, Outdoor coil temp.
S (T3) sensor, Outdoor ambient temp.
S (T4) sensor, Compressor discharge temp.
S (T5) sensor . Measure the resistance value of each winding by using the multi- meter .
